ACV

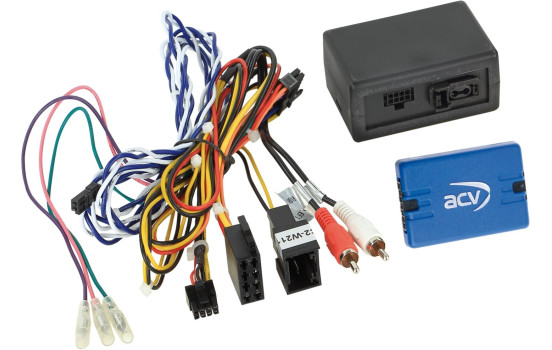

SWI Mercedes Benz E-Class/ SLK-Class/ CLS-Class > Audio Gateway

  • SWI Mercedes Benz E-Class/ SLK-Class/ CLS-Class > Audio Gateway
  • SWI Mercedes Benz E-Class/ SLK-Class/ CLS-Class > Audio Gateway, Thumbnail 2

Product number: 1687303

Manufacturer number: 42smc013

EAN: 4026724668704

£ 377.87

Incl. VAT
View product specifications
In stock
Delivery 19-06-2025

Free Shipping

Secure payment

  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

  • Specifications

    Steering wheel control interface

    Retain the original steering wheel remote control functions,
    if you trade in your factory radio for an aftermarket radio.

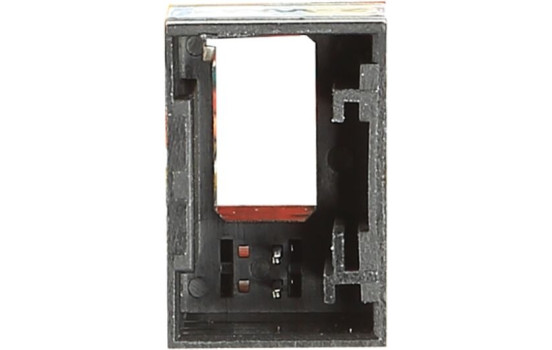

    Compare the illustrated connector of the adapter with
    that in your car to make sure you have the right one.

    Also check if any of the
    specified original factory radio is installed in your vehicle!

    Steering wheel control adapter
    NB:
    Please note: In some cases a tripping PLOP or noise may occur
    Please note: In some cases the interface does not work correctly and you need another cable. If you have any questions about this, please contact our sales.


    CAN bus

    Connection: 2 Pin Power Mercedes
    Connection: 2 Pin CAN Bus Distributor
    Connection: OEM sound system MOST > Cinch(m) red/white

    Vehicles with Harman Kardon OEM sound system*
    Vehicles with MOST25 OEM sound system*
    Vehicles with audio gateway
    Vehicles with Command APS NTG1 OEM Navigation

    Vehicles without Command 2.0 / 2.5 OEM Navigation
    Vehicles without D2B Optical Bus System

    Cinch > Front Preamp Output Retrofit Radio
    Fader function not supported

    Antenna extension not included**.

    Suitable for the following vehicles:

    Mercedes CLS-Class (W219) 10/2004 - 06/2008
    Mercedes E-Class (W211) 03/2002 - 02/2008***
    Mercedes SLK-Class (R171) 03/2004 - 03/2008

    The following signals are given:

    Re-imported vehicles or vehicles with different software may be functionally incompatible.

    red: +12V ignition terminal 15
    orange: +12V lighting terminal 58
    purple/white: +12V reverse signal
    pink: speed signal
    green: ground GND handbrake signal

    Load capacity of total outputs: 100 mA max.

    Current requirement greater than 100 mA:
    1 relay coil resistance 75 Ohm min.
    2 relay coil resistance 150 Ohm min.

    Steering wheel remote control

    *In individual cases, depending on the OEM system and the retrofit radio, increased noise or a switch-on or switch-off noise may occur.
    *Remove OEM additional components > CD changer / TV tuner / telephone module from MOST ring
    *Fiber optic connector MOST-ring > Article: 771000-2100
    *Optical waveguide loop (f) MOST ring > Article: 771000-2101
    ***Electric compartment function not supported

    Connection cable for the following radio manufacturers:

    LFB cable 42s/acv > Alpine connection: 42ctalpinelead
    LFB cable 42s/acv > Parrot 4 pin: 42ctasteroidlead
    LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
    LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
    LFB cable 42s/acv > Clarion connection: 42ctclarionlead
    LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
    LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
    LFB cable 42s/acv > Multilead various devices: 42ctmultilead
    LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
    LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
    LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
    LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
    LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022> connection loose: 42ctpioneerlead2
    LFB cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
    LFB cable 42s/acv > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
    LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead

    Optional:

    **Extension cable Fakra(m)>Fakra(f) 200cm > Article: 1524-200
    **Extension cable fakra(m)>fakra(f) 500cm > Article: 1524-500
    **Antenna adapter fakra(m)>DIN(m) passive > Article: 1524-01


    Suitable for:

    Mercedes Benz E-Class 2002-2009 (211)
    Mercedes Benz SLK-Class 2004-2010 (171)
    Mercedes Benz CLS-Class 2004-2010 (219)
    Warranty2 years
  • Applicability

    Universally applicable

  • Manufacturer

    ACV
  • Delivery time

    Expected delivery date:

    19-06-2025
