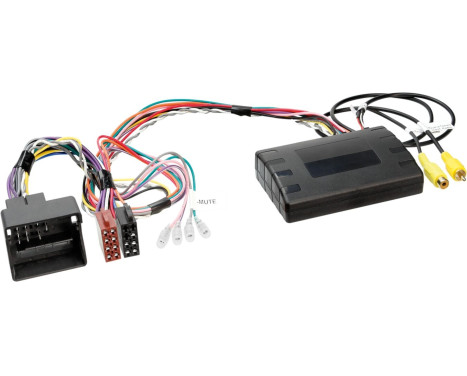

SWI + Info adapter (Quadlock) Various Volkswagen models

Remark:

Vehicles with steering wheel remote control

Connection: 40-pin Quadlock VW plug

To access the menu settings, connect the rear view camera input (purple/white)
To make the menu settings visible, connect and configure the reversing camera input (cinch)

Vehicles with white OEM FIS/menu display instrument cluster
Vehicles with/without OEM sound system

Visualization OPS / climate control

Vehicles with front warning system > +12V reversing signal is switched off from 3 km/h

Suitable for the following vehicles:

VW Caravelle (7H) 09/2009 - 05/2015**
VW CC (3C/35) 02/2012 - 08/2016
VW Eos (1F) 10/2010 - 04/2015
VW Golf VI (1K) 11/2008 - 12/2012
VW Golf VI (1KM) 11/2009 - 04/2013
VW Golf VI (1K) 06/2011 - 2013
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Multivan (7H) 09/2009 - 05/2015**
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Polo V (6R) 06/2009 - 01/2014*
VW Scirocco III (13) 08/2008 - 04/2014
VW Sharan II (7N) 08/2010 - 04/2015
VW T5 Transporter (7H) 09/2009 - 05/2015**
VW Tiguan I (5N) 06/2011 - 04/2016
VW Touran (1T) 08/2010 - 04/2015

The following signals are provided:

Handbrake signal
Contact Voltage Clamp +15
Relief
Speed

Steering wheel remote control

Climate control visualization
Visualization optical PDC
OEM Sound System Settings

*Vehicles with Fender OEM sound system
**Vehicles with OEM sound system > Article Adapter active system VW T5/Touareg Quadlock MQS insert: 13-1424-26

Connection cable for the following radio manufacturers:

LFB ACV cable > Alpine connection: 42ctalpinelead
LFB ACV cable > Parrot 4 pin: 42ctasteroidlead
LFB ACV cable > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
LFB ACV cable > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
LFB ACV cable > Clarion connection: 42ctclarionlead
LFB ACV cable > JVC 1 cable/jack: 42ctjvclead
LFB ACV cable > Kenwood 1 cable: 42ctkenwoodlead
LFB ACV cable > Multilead various devices: 42ctmultilead
LFB ACV cable > Multilead various devices/Pioneer 2022>: 42ctmultilead3
LFB ACV cable > Multilead various devices/Pioneer 2022>: 42ctmultilead5
LFB ACV cable > Panasonic 1 cable: 42ctpanasoniclead
LFB ACV cable > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
LFB ACV cable > Pioneer AVH/DMH/SPH 2022> connection: 42ctpioneerlead2
LFB ACV cable > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
LFB ACV cable > XZent/Zenec 1 cable: 42ctzeneclead

Suitable for:
Volkswagen Eos 2009-2016
Volkswagen Golf Plus 2010-2013
Volkswagen Golf 6 2009-2013
Volkswagen Passat 2009-2015
Volkswagen Polo 2009-2015
Volkswagen Scirocco 2011-2015
Volkswagen Sharan 2010-2015
Volkswagen T5 Multivan 2010-2015
Volkswagen Tiguan 2011-2015
Volkswagen touran 2010-2015

---

Warranty

2 years
