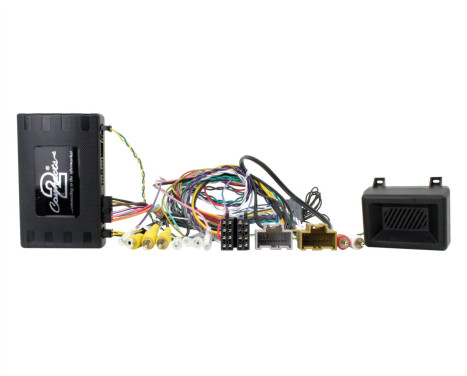

SWI + Info Adapter Opel Corsa (E) 2017->

INFO DAPTER
This adapter allows vehicle information from OEM navigation, such as air conditioning, parking sensors and seat heating to be displayed on a retrofit device while retaining the functionality of the original steering wheel remote control
Product features:
Display of air conditioning control, parking sensors, seat heating
steering wheel remote control
Video input (for rear view camera)
Compatible vehicles:
Opel Corsa E 2017->
The matching connection cable for Alpine, Clarion, JVC, Kenwood etc. must be ordered separately!
The info adapter cannot be used without an interface lead cable.

Comments :

Vehicles with steering wheel remote control

CAN bus GM 29Bit

Connection: 20-pin curry / 20-pin gray Opel plug
Connection: OEM AUX > Cinch(m) red/white
Connection: OEM reversing camera > Cinch(m) yellow

Visualize menu settings > purple/white Connect reverse gear output
Visualize menu settings > Connect Cinch(m) yellow to rear view camera input and configure
Vehicle settings and vehicle information > mirrored on the retrofit monitor Rear view camera input

Depending on OEM vehicle equipment and software:
Not all vehicle settings are supported
Not all vehicle functions are supported
Not all vehicle information is visualized

Rain sensor not supported
On-Star not supported
Window controller not supported

Outside temperature display not supported
Date display not supported
Time display not supported

Suitable for the following vehicles:

Opel
Opel Adam (MA) 06/2017 - 05/2019*
Opel Corsa E (X15) 07/2017 - 05/2019*

Chevrolet
Chevrolet Trax 2017 - 2021**

The following signals are provided:

Re-imported vehicles or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal
yellow/black: GND phone signal mute

Load capacity of all outputs: 100 mA max.

Current requirement greater than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relay coil resistance 150 Ohm min.

Steering wheel remote control

Climate control visualization
Visualization optical PDC
Supported Vehicle Settings

*Vehicles with IntelliLink 4.0 OEM device with round main switch and telephone button
*Vehicles with Mylink 7" OEM device

Connection cable for the following radio manufacturers:
Lead cable > Alpine connection: 42ctalpinelead
Lead cable > Parrot 4 Pin: 42ctasteroidlead
Lead cable > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Lead cable > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Lead cable > Clarion connection: 42ctclarionlead
Lead cable > JVC 1 cable/jack: 42ctjvclead
Lead cable > Kenwood 1 cable: 42ctkenwoodlead
Lead cable > Multilead various devices: 42ctmultilead
Lead cable > Multilead various devices/Pioneer 2022>: 42ctmultilead3-0
Lead cable > Multilead various devices/Pioneer 2022>: 42ctmultilead5
Lead cable > Panasonic 1 cable: 42ctpanasonic lead
Lead cable > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Lead cable > Pioneer AVH/DMH/SPH 2022> connection: 42ctpioneerlead2
Lead cable > Devices with LFB learning function: 42ctsmartlead
Lead cable > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
Lead cable > XZent/Zenec 1 cable: 42ctzeneclead


Suitable for:
Opel Corsa 2017-2019

---

Warranty

2 years
