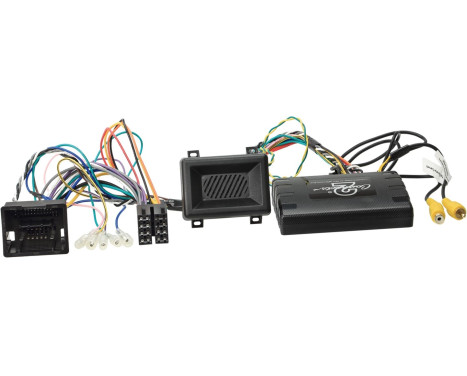

SWI + Info Adapter Div.mod. Opel display of PDC/ Climate control/ Seat heating/ Video input

INFO DAPTER
This adapter allows vehicle information from OEM navigation, such as air conditioning, parking sensors and seat heating to be displayed on a retrofit device while retaining the functionality of the original steering wheel remote control
Product features:
Display of air conditioning control, parking sensors, seat heating
steering wheel remote control
Video input (for rear view camera)
Compatible vehicles:
Opel ASTRA K 2015->
The matching connection cable for Alpine, Clarion, JVC, Kenwood etc. must be ordered separately!
The info adapter cannot be used without an interface lead cable.

Comments :

Vehicles with steering wheel remote control

CAN bus

Connection: 48-pin Opel plug
Connection: OEM camera > Cinch(m) yellow*

Show menu settings > connect purple/white reverse output
Visualize menu settings > Connect Cinch(m) yellow to reversing camera input and configure
Vehicle settings and vehicle information > mirrored on the rear view camera input of the retrofit monitor

Vehicles with OEM color monitor > color monitor without function

Vehicles without OEM sound system

Depending on OEM vehicle equipment and software:
Not all vehicle settings are supported
Not all vehicle functions are supported
Not all vehicle information is visualized

Outside temperature display omitted
Date display not applicable
Time display not applicable

Suitable for the following vehicles:

Opel Adam (MA) 01/2013 - 06/2017
Opel Astra J (PJ) 12/2009 - 06/2012
Opel Astra J (PJ) 06/2011 - 08/2018*
Opel Corsa E (X15) 12/2014 - 06/2017
Opel Insignia A (G9) 11/2008 - 06/2013
Opel Meriva B (S10) 05/2010 - 11/2013
Opel Meriva B (S10) 01/2014 - 07/2017*
Opel Mokka (YES) 10/2012 - 12/2014
Opel Mokka (YES) 12/2014 - 06/2016*
Opel Zafira Tourer (P12) 01/2012 - 06/2016

The following signals are given:

Re-imported vehicles or vehicles with different software may be functionally incompatible.
red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal
yellow/black: GND phone signal mute

Load capacity of all outputs: 100 mA max.

Current requirement greater than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relay coil resistance 150 Ohm min.

Steering wheel remote control

Climate control visualization
Visualization optical PDC
Supported Vehicle Settings

*OEM camera connection > 20 pin connector gray check pin 6 / pin 16 with factory device

Connection cable for the following radio manufacturers:
Lead cable > Alpine connection: 42ctalpinelead
Lead cable > Parrot 4 Pin: 42ctasteroidlead
Lead cable > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
Lead cable > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
Lead cable > Clarion connection: 42ctclarionlead
Lead cable > JVC 1 cable/jack: 42ctjvclead
Lead cable > Kenwood 1 cable: 42ctkenwoodlead
Lead cable > Multilead various devices: 42ctmultilead
Lead cable > Multilead various devices/Pioneer 2022>: 42ctmultilead3-0
Lead cable > Multilead various devices/Pioneer 2022>: 42ctmultilead5
Lead cable > Panasonic 1 cable: 42ctpanasonic lead
Lead cable > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
Lead cable > Pioneer AVH/DMH/SPH 2022> connection: 42ctpioneerlead2
Lead cable > Devices with LFB learning function: 42ctsmartlead
Lead cable > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
Lead cable > XZent/Zenec 1 cable: 42ctzeneclead


Suitable for:
Opel Adam 2013-2020
Opel Astra 2010-2016
Opel Corsa 2014-2016
Opel Insignia 2008-2013
Opel Meriva 2010-2020
Opel Mokka 2012-2020
Opel Zafira 2012-2020

---

Warranty

2 years
