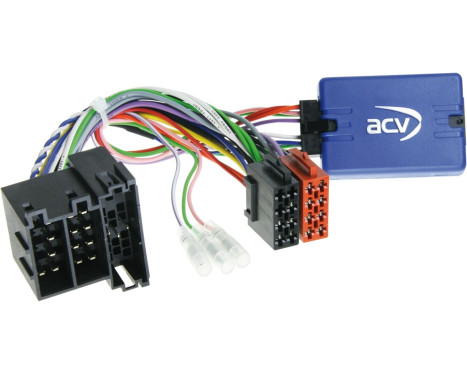

SWI Fiat Ducato (250) 2008-2014 Mini ISO

Steering wheel controls Fiat/ Citroen/ Peugeot
Keep the original functions of your steering wheel remote control when you trade in your factory radio for an aftermarket radio.
Compare the adapter plugs shown with those in your vehicle and check whether they fit optically and technically.
Also check if one of the specified original factory radios is installed in your vehicle,

Remark:
Analog
CAN bus

Connection: ISO / Mini ISO

Vehicles with OEM radio head unit
Vehicles with 8 steering wheel remote control buttons/functions
Vehicles with CAN Bus and analog SWI in Mini ISO connector C2 Pin 10/11/12

Vehicles with Blue&Me > Silverbox module must remain installed

Suitable for the following vehicles:

Lemon
Citroën Jumper (250) 10/2006 - 11/2011
Citroen Jumper (250) 11/2011 - 05/2014*
Citroen Relay (250) 2006 - 2011
Citroën Relay (250) 2011 - 2014

Fiat
Fiat Ducato (ZAF 250) 06/2006 - 06/2011
Fiat Ducato (ZAF 250) 06/2011 - 05/2014*

Peugeot
Peugeot Boxer (Y) 02/2007 - 07/2011
Peugeot Boxer (Y) 07/2011 - 05/2014*

The following signals are given:

Imported vehicles or vehicles with different software may be functionally incompatible.

red: +12V terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Load capacity of all outputs: 100 mA max.

Current requirement greater than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relay coil resistance 150 Ohm min.

Steering wheel remote control

*Vehicles without Delphi 2-DIN OEM unit piano lacquer with central control knob
*Vehicles with Delphi 2-DIN OEM unit piano lacquer with central control knob:
SWI Citroen/Fiat/Opel/Peugeot ISO CAN Bus/Mini ISO > Item: 42sfa004

Connection cable for the following radio manufacturers:
SWI cable 42s/acv > Alpine jack: 42ctalpinelead
SWI cable 42s/acv > Parrot 4 pin: 42ctasteroidlead
SWI cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
SWI cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
SWI cable 42s/acv > Clarion connection: 42ctclarionlead
SWI cable 42s/acv > Garmin Vieo" RV52 Stereo Dock 3 cable: 42ctgarminlead
SWI cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
SWI cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
SWI cable 42s/acv > Multilead various devices: 42ctmultilead
SWI cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
SWI cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
SWI cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
SWI cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
SWI cable 42s/acv > Pioneer AVH/DMH/SPH 2022> connection loose: 42ctpioneerlead2
SWI cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
SWI cable 42s/acv > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
SWI cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead

Suitable for:
Fiat Ducato 2006-2014
Citroen Jumper 2006-2014
Peugeot Boxer 2007-2014

---

Warranty

2 years
