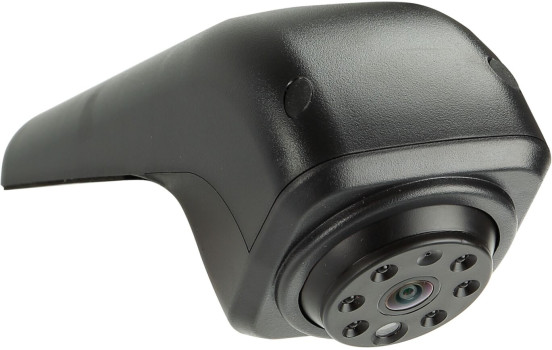

Reversing camera VW Crafter - MAN TGE 2017-> with image lines and night vision function

Reversing camera MAN TGE / Volkswagen Crafter 2017-> for mounting on the 3rd brake light
with orientation lines, night vision function and 20° adjustable viewing angle
Camera Product Features:
Plastic
Color: black/red
Extras: orientation lines and night vision function, viewing angle adjustable by 20°
Sensor type: 1/3" CMOS
Image system: NTSC color
Effective pixels: 979 x 592
Lens: 1.9mm / F 2.0
Min.Lux: 0 lux with night vision function
Resolution: 600 TV lines
Viewing angle: 160 °
Viewing angle: horizontal 115° vertical 75° + 5°
Protected against dust and water: IP67
Connection: 4-pin mini plug 5.2 mm
Supply voltage: 12Volt + 10%
Power consumption: 150mA with night vision function enabled
Operating temperature range: -30°C - 75°C
Storage temperature: -40 ° C - 80 ° C
Dimensions: see OEM brake light

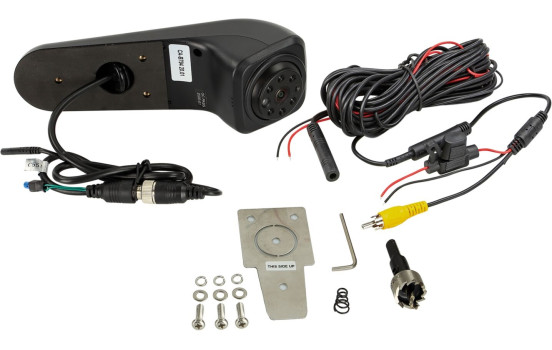

Connection cable on the camera:
1 meter cable with 4-pin mini plug 5.2 mm
Cable set:
1 meter cable with 4-pin mini plug incl. 1 jumper
6.5 meter extension including 3 meter power cable for connection to the reversing light
and through wiring up to the connection cable on the end device
4-pin mini jack 10mm and plug 5.2mm
0.2 meter power cable including fuse and video connection cable (RCA)
Optional accessories:
771000-6305 extension 5 meters
771000-6310 extension 10 meters
771000-6315 extension 15 meters

Suitable for:
MAN TGE 2017-2023
Volkswagen Crafter 2017-2023

---

application	Ready
Warranty	2 years
