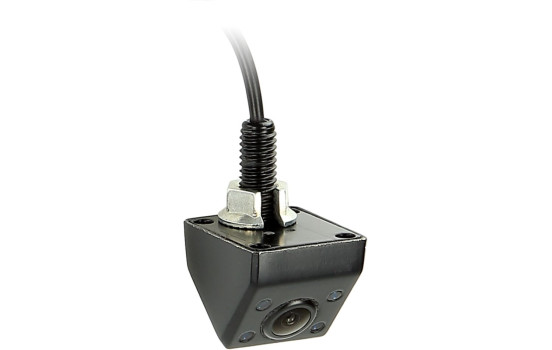

Reversing Camera (square) - sub & built up-construction

Design: plastic
Color: black
Extras: auxiliary lines and mirror function via jumper, night vision
Image sensor: 1/4" CMOS
TV system: NTSC
Effective pixels: 720 x 576
Lens: 1.9mm / F 2.0
Min.Lux: 0 Lux with active night vision
Resolution: 480 TV lines
Lens angle: 140°
Viewing angle: horizontal 115° vertical 80° + 5°
IP rating: IP 67
Terminal: 4-pin mini plug (male) 5.2mm
Power supply: DC 12V + 10%
Power consumption: 60mA during active night vision function
Operating temperature: -30°C - 75°C
Storage temperature: -40 ° C - 80 ° C
Dimensions: L / W / H - 26 mm / 29 mm / 21 mm

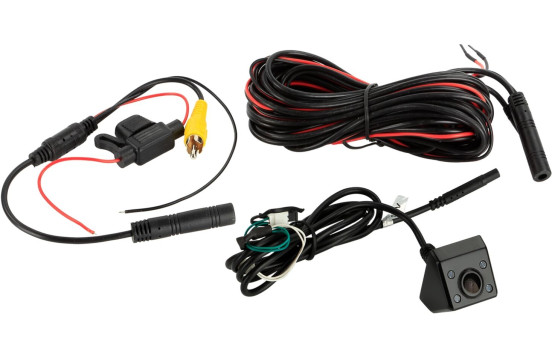

Pigtail at the camera:
1 meter cable with 4-pin mini plug (male) 5.2 mm incl. 2 jumpers
6.5 meter extension cable incl. 3 meter power wire to connect to the reversing light
and an insert cable to connect to the power supply of the device
4-pin mini plug (female) 10 mm and plug (male) 5.2 mm
0.2 meter power harness incl. fuse and video connector (RCA)
Optional accessory:
771000-6305 Extension cable 5 meters
771000-6310 Extension cable 10 meters
771000-6315 Extension cable 15 meters

Suitable for:

---

application	Universal
Warranty	2 years
