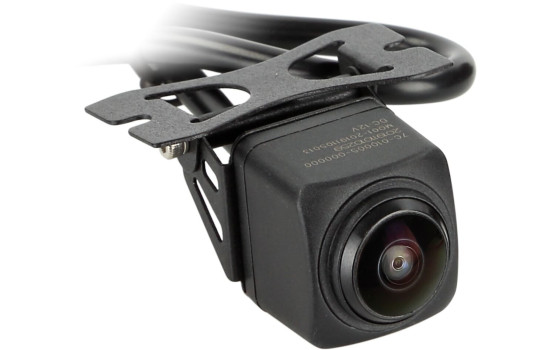

Reversing Camera (square) - sub & built up-construction

Universal rear view camera / universal front camera

Design: angular
Installation type: under-mounted / surface-mounted

NB:

All ACV cameras are suitable for connection of +12V continuous operation

Connection:
red +12V switched load stable (fused)
black earth/GND body direct

Camera product features:

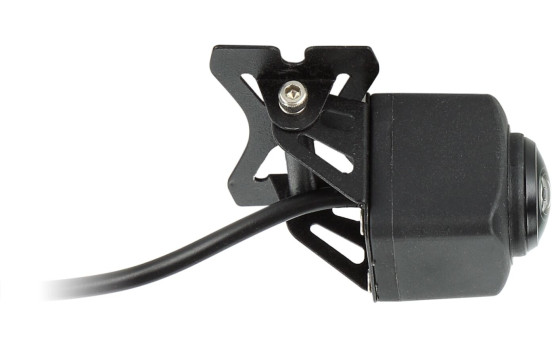

Construction: Plastic with adjustable metal holder
Color: black
Extras: 192° viewing angle (diagonal)
Sensor type: 1/4" CMOS
Image system: NTSC color
Effective pixels: 720 x 480
Lens: 1.9mm / F 2.0
Lux: 0.5 min. illumination
Resolution: 480 TV lines
Viewing angle: Diagonal 202°
Viewing angle: Horizontal 194° Vertical 142° + 5
Dust and water resistant: IP69
Connection: 4-pin mini plug 5.2 mm
Supply voltage: 12Volt + 10
Current consumption: 200mA
Operating temperature range: -30°C - 75°C
Storage temperature: -40°C - 85°C
Dimensions: L / W / H - 23mm / 23mm / 26mm

Connection cable to camera:

1 meter cable with 4-pole mini plug 5.2mm

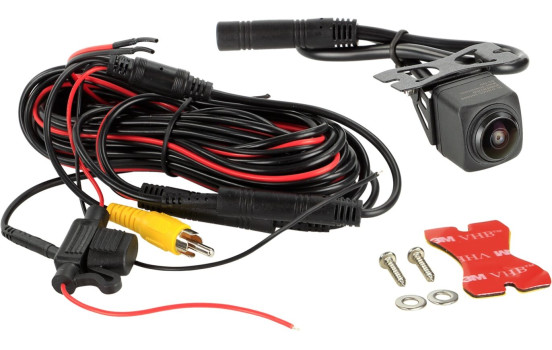

Cable set:

1 meter cable with 4-pin mini plug incl. 2 jumpers
6.5 meter extension incl. 3 meter power cable for connection to reversing light and feed-through to connection cable on terminal box

4-pin mini jack 10 mm and plug 5.2 mm

0.2 meter power cable incl. fuse and video connection cable (RCA)

Installation accessories:

Camera connection to interfaces > NO relay electronic 2V-12V/1.5A max: 40-AD-REMOTE
Connection camera to reversing light > Voltage stabilizer reversing signal reversing camera: 771000-6100

Optional accessories:

Camera cable extension for acv camera 5m: 771000-6305
Camera cable extension for acv camera 10m: 771000-6310
Camera cable extension for acv camera 15m: 771000-6315


Suitable for:
Universal Various models Various years

---

application	Universal
Warranty	2 years
