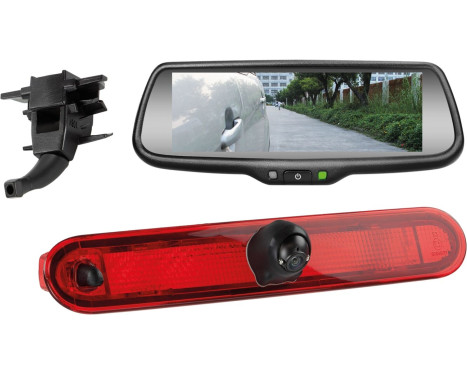

Reversing camera set with 7" mirror monitor for Mercedes Citan - Renault Kangoo

Reversing camera set with 7" mirror monitor for Mercedes Citan - Renault Kangoo

Product number: 1688473

Manufacturer number: 771190-9003

EAN: 4026724341331

£ 453.82

Incl. VAT
View product specifications
Not available

Free Shipping

  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

  • Specifications

    1 meter cable with 4-pin mini connector 5.2 mm
    Cable set:
    1 meter cable with 4-pin mini plug including 2 jumpers
    6.5 meter extension including 3 meter power cable for connection to the reversing light and through wiring to the connection cable on the end device
    4-pin mini-jack 10 mm and connector 5.2 mm
    0.2 meter power connection cable including fuse and video connection cable (RCA)
    Monitor product features:
    Construction: Plastic with metal holder
    The color black
    Extras: Split screen function / AHD camera input / extremely bright / automatic brightness control for monitor / automatic switch-on via trigger function / remote control / guidelines can be deactivated and set / switching of the camera image via button or trigger function
    Inputs: 4 video (video / rear view camera) / 1 AHD camera input
    Resolution: 1280 x 480
    Aspect Ratio: 16:9
    Brightness: 2000-2600 lux
    Video system: PAL / NTSC (automatic detection)
    Supply voltage: 12V DC voltage
    Power consumption: max. 800mA
    Operating temperature range: -20 ° C to + 75 ° C
    Storage temperature: -40 ° C to + 85 ° C
    Dimensions: L / W / H / 270mm / 85mm / 50mm (without holder)
    Installation accessories:

    Camera connection to interfaces> Electronic shutter relay 2V-12V / 1.5A max: 40-AD-REMOTE
    Camera connection to reversing light > reversing camera voltage stabilizer reversing signal: 771000-6100
    Optional accessories:
    Camera cable extension for acv camera 5m: 771000-6305
    Camera cable extension for acv camera 10m: 771000-6310
    Camera cable extension for acv camera 15m: 771000-6315
    Kit scope of delivery:
    Reversing camera Mercedes Citan / Renault Kangoo: 771000-9001
    Mirror monitor 7.2" 4 video inputs / 1x AHD / split screen: 771000-6513
    Vehicle specific holder for mirror monitor Mercedes / Renault: 771000-6952

    Suitable for:
    Mercedes Benz Citan 2012-2023 (415)
    Renault Kangoo 2013-2023
    applicationReady
    Warranty2 years

  • Applicability

    MERCEDES-BENZ
    CITAN Dualiner
    CITAN Dualiner (W415) | 11.2012-08.2021 109 CDI (415.603, 415.605) - 1461ccm, 90pk, 66kw - OM 607.951 (K9K)
    CITAN Dualiner (W415) | 11.2012-08.2021 111 CDI (415.603, 415.605) - 1461ccm, 110pk, 81kw - OM 607.951 (K9K)
    CITAN Panel
    CITAN Panel Van (W415) | 11.2012-08.2021 108 CDI (415.601, 415.603) - 1461ccm, 75pk, 55kw - OM 607.951 (K9K)
    CITAN Panel Van (W415) | 11.2012-08.2021 108 CDI (415.603) - 1461ccm, 80pk, 59kw - OM 608.915 (K9K)
    CITAN Panel Van (W415) | 11.2012-08.2021 109 CDI (415.601, 415.603, 415.605) - 1461ccm, 90pk, 66kw - OM 607.951 (K9K)
    CITAN Panel Van (W415) | 11.2012-08.2021 109 CDI (415.603, 415.605) - 1461ccm, 95pk, 70kw - OM 608.915 (K9K)
    CITAN Panel Van (W415) | 11.2012-08.2021 111 CDI (415.603, 415.605) - 1461ccm, 110pk, 81kw - OM 607.951 (K9K)
    CITAN Panel Van (W415) | 11.2012-08.2021 111 CDI (415.603, 415.605) - 1461ccm, 116pk, 85kw - OM 608.915 (K9K)
    CITAN Panel Van (W415) | 11.2012-08.2021 112 (415.603) - 1197ccm, 114pk, 84kw - M 200.711
    CITAN Traveliner
    CITAN Traveliner (W415) | 11.2012-08.2021 108 CDI (415.703) - 1461ccm, 75pk, 55kw - OM 607.951 (K9K)
    CITAN Traveliner (W415) | 11.2012-08.2021 108 CDI (415.703) - 1461ccm, 80pk, 59kw - OM 608.915 (K9K)
    CITAN Traveliner (W415) | 11.2012-08.2021 109 CDI (415.703) - 1461ccm, 90pk, 66kw - OM 607.951 (K9K)
    CITAN Traveliner (W415) | 11.2012-08.2021 109 CDI (415.703) - 1461ccm, 95pk, 70kw - OM 608.915 (K9K)
    CITAN Traveliner (W415) | 11.2012-08.2021 111 CDI (415.703) - 1461ccm, 116pk, 85kw - OM 608.915 (K9K)
    CITAN Traveliner (W415) | 11.2012-08.2021 111 CDI (415.703, 415.705) - 1461ccm, 110pk, 81kw - OM 607.951 (K9K)
    CITAN Traveliner (W415) | 11.2012-08.2021 112 (415.703) - 1197ccm, 114pk, 84kw - M 200.711
    RENAULT
    KANGOO /
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.2 TCe 115 (KW02, KW14) - 1197ccm, 115pk, 84kw - H5F 400, H5F 408, H5F 412
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi (KW0C, KW2C, KW4C) - 1461ccm, 106pk, 78kw - K9K 804
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi 105 (KW0F) - 1461ccm, 103pk, 76kw - K9K 806
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi 110 (KW06, KW12) - 1461ccm, 110pk, 81kw - K9K 636, K9K 646, K9K 647, K9K 648
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi 110 (KW0C, KW0H) - 1461ccm, 110pk, 80kw - K9K 804, K9K 816
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi 115 (KW17) - 1461ccm, 115pk, 85kw - K9K 872
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi 70 (KW0V, KW0A) - 1461ccm, 68pk, 50kw - K9K 802, K9K 800
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi 75 (KW07, KW10, KW04) - 1461ccm, 75pk, 55kw - K9K 608, K9K 808, K9K 628
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi 80 (KW15) - 1461ccm, 80pk, 59kw - K9K 872
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi 85 (KW0K, KW0L, KW0B) - 1461ccm, 86pk, 63kw - K9K 802, K9K 812
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi 90 (KW05, KW08, KW0G, KW11) - 1461ccm, 90pk, 66kw - K9K 608, K9K 808, K9K 628
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi 90 (KW18) - 1461ccm, 91pk, 67kw - K9K 647
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.5 dCi 95 (KW16) - 1461ccm, 95pk, 70kw - K9K 872
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.6 (KW00, KW0Y, KW0E, KW0N, KW0P) - 1598ccm, 87pk, 64kw - K7M 750
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.6 16V (KW03, KW09, KW0D, KW0U, KW0W, KW13) - 1598ccm, 106pk, 78kw - K4M 830, K4M 831, K4M 834, K4M 835, K4M 836
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.6 16V FLEX (KW01) - 1598ccm, 106pk, 78kw - K4M 834, K4M 835
    KANGOO / GRAND KANGOO II (KW0/1_) | 02.2008-??? 1.6 16V LPG (KW0U) - 1598ccm, 106pk, 78kw - K4M 834, K4M 835, K4M 836
    KANGOO BE
    KANGOO BE BOP (KW0/1_) | 02.2009-12.2012 1.5 dCi - 1461ccm, 110pk, 80kw - K9K 804
    KANGOO BE BOP (KW0/1_) | 02.2009-12.2012 1.5 dCi (KW0F) - 1461ccm, 103pk, 76kw - K9K 806
    KANGOO BE BOP (KW0/1_) | 02.2009-12.2012 1.5 dCi (KW0G) - 1461ccm, 90pk, 66kw - K9K 808
    KANGOO BE BOP (KW0/1_) | 02.2009-12.2012 1.5 dCi 75 - 1461ccm, 75pk, 55kw - K9K 802
    KANGOO BE BOP (KW0/1_) | 02.2009-12.2012 1.6 (KW0D) - 1598ccm, 106pk, 78kw - K4M 830
    KANGOO Express
    KANGOO Express (FW0/1_) | 02.2008-??? 1.2 TCe 115 (FW02, FW14) - 1197ccm, 115pk, 84kw - H5F 400, H5F 408, H5F 412
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi (FW0C, FW1C) - 1461ccm, 106pk, 78kw - K9K 804
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi 105 (FW0F) - 1461ccm, 103pk, 76kw - K9K 806
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi 110 (FW06, FW12) - 1461ccm, 110pk, 81kw - K9K 636, K9K 646, K9K 647, K9K 648
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi 110 (FW0C, FW0H) - 1461ccm, 109pk, 80kw - K9K 804, K9K 816
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi 115 (FW17) - 1461ccm, 116pk, 85kw - K9K 872
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi 70 (FW0A, KW0V) - 1461ccm, 68pk, 50kw - K9K 800
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi 75 (FW07, FW10, FW04) - 1461ccm, 75pk, 55kw - K9K 608, K9K 808, K9K 628
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi 80 (FW15) - 1461ccm, 80pk, 59kw - K9K 872
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi 85 (FW0K, FW0L, FW0B) - 1461ccm, 86pk, 63kw - K9K 802, K9K 812
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi 90 (FW0G, FW05, FW08, FW11) - 1461ccm, 90pk, 66kw - K9K 608, K9K 808, K9K 628
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi 90 (FW18) - 1461ccm, 91pk, 67kw - K9K 647
    KANGOO Express (FW0/1_) | 02.2008-??? 1.5 dCi 95 (FW16) - 1461ccm, 95pk, 70kw - K9K 872
    KANGOO Express (FW0/1_) | 02.2008-??? 1.6 - 1598ccm, 110pk, 81kw -
    KANGOO Express (FW0/1_) | 02.2008-??? 1.6 (FW00, FW0E, FW0N, FW0P, FW0Y) - 1598ccm, 87pk, 64kw - K7M 750
    KANGOO Express (FW0/1_) | 02.2008-??? 1.6 16V (FW03, FW09, FW0D, FW0U, FW0W, FW13) - 1598ccm, 106pk, 78kw - K4M 830, K4M 831, K4M 834
    KANGOO Express (FW0/1_) | 02.2008-??? 1.6 16V LPG (FW03, FW09, FW0W) - 1598ccm, 106pk, 78kw - K4M 834
    KANGOO Express (FW0/1_) | 02.2008-??? Z.E. (FW0Z, FW1Z) - 0ccm, 60pk, 44kw - 5AM 400, 5AQ 604
