Reversing Camera mini black NTSC with image lines and mirror function

Mini reversing camera universal (round)
Substructure / extension with image lines

Note:

The camera must not be connected without the voltage converter from the cable set.
All ACV cameras are suitable for continuous use.

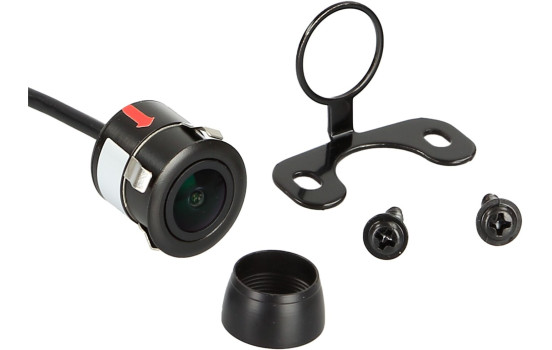

camera features:

Construction: Plastic/Metal with wing holder
Color: black
Extras: image lines via jumpers, various mounting options
Sensor type: 1/3" CMOS
Image system: NTSC
Effective pixels: 976 x 592
Lens: 1.9 mm / F 2.0
Lux: 0.3
Resolution: 700 TV lines
Viewing angle: 170° + 5°
Viewing angle: horizontal 115°, vertical 80°+5°
Dust and waterproof: IP68
Connection: 4 pin mini connector 5.2 mm
Supply voltage: 12-24 Volt DC + 10%
Current consumption: 200mA
Operating temperature range: -30°C - 75°C
Storage temperature: -40 ° C - 85 ° C
Diameter: 16.5 - 18.3 mm depending on the mounting
Connection cable to the camera:
1 meter cable with 4-pin mini connector 5.2 mm

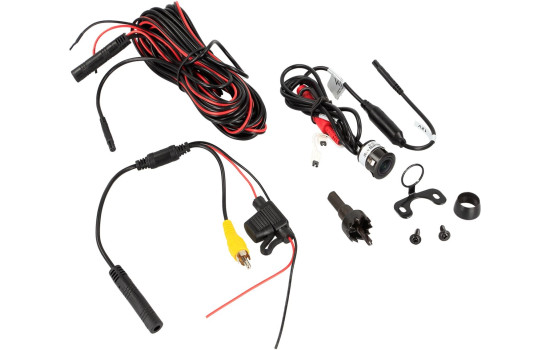

Cable set:
1 meter cable with 4-pin mini plug including 2 jumpers

6.5 meter extension including 3 meter power cable for connection to the reversing light
and via cabling to the connection cable on the screen/interface 4-pin mini connector 10 mm and plug 5.2 mm

0.2 meter power connection cable including fuse and video connection cable (RCA)

Optional accessories:

771000-6305 extension 5 meters
771000-6310 extension 10 meters
771000-6315 extension 15 meters

Suitable for:
Universal Various models Various years

---

application	Universal
Warranty	2 years
