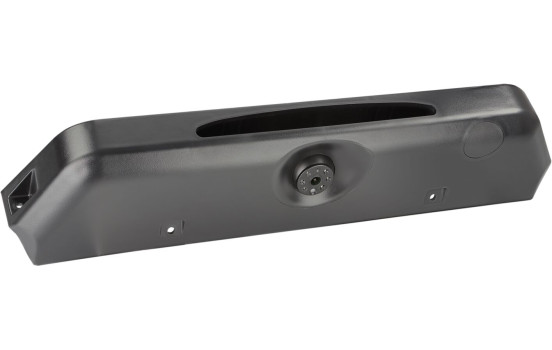

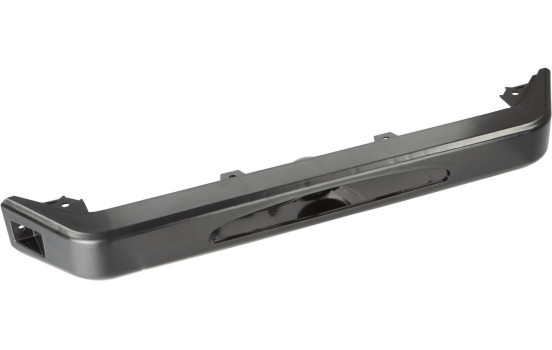

Reversing Camera Iveco Daily 2015-2023

Reversing camera Iveco Daily 2015 to replace the OEM 3rd brake light
with orientation lines via jumper, night vision function and 20° adjustable viewing angle

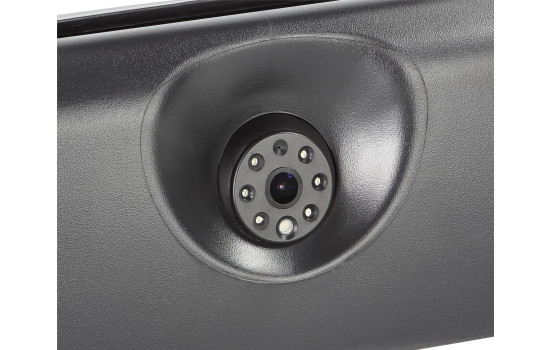

Product Features Camera:
- Construction: plastic
- Color: black
- Extras: guidelines via jumper and night vision function, viewing angle adjustable by 20 °
- Sensor type: 1/3" PC1089 CMOS
- Image system: NTSC color
- Effective pixels: 756x504
- Lens: 1.7mm / F 1.9
- Min.Lux: 0 when night vision function is active
- Resolution: 580 TV lines
- Viewing angle: 170 °
- Viewing angle: horizontal 150° vertical 90° + 5°
- Dust and water protected: IP68
- Connection: 4-pin mini plug 5.2 mm
- Supply voltage: 12V + 10%
- Power consumption: 150mA with night vision function enabled
- Operating temperature range: -30°C - 75°C
- Storage temperature: -40 ° C - 80 ° C
- Dimensions: see OEM brake light

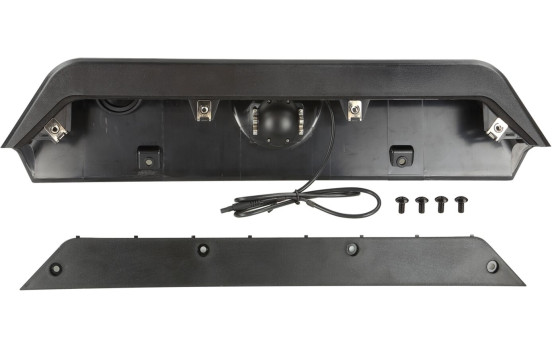

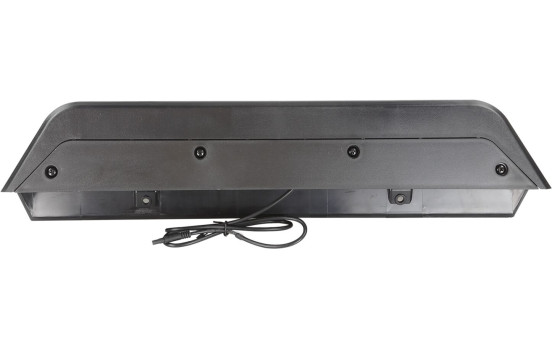

Connection cable to the camera:
1 meter cable with 4-pin mini plug 5.2 mm
Harness:
- 1 meter cable with 4-pin mini plug incl. 1 jumper
- 6.5 meter extension including 3 meter fairing for connection to the reversing light
and via wiring to the connection cable on the terminal
4-pin minibus 10mm and plug 5.2mm
- 0.2 meter power cable incl. fuse and video connection cable (RCA)
Optional accessories:
771000-6305 extension 5 meters
771000-6310 extension 10 meters
771000-6315 extension 15 meters

Suitable for:
Iveco Daily 2015-2023

---

application	Ready
Warranty	2 years
