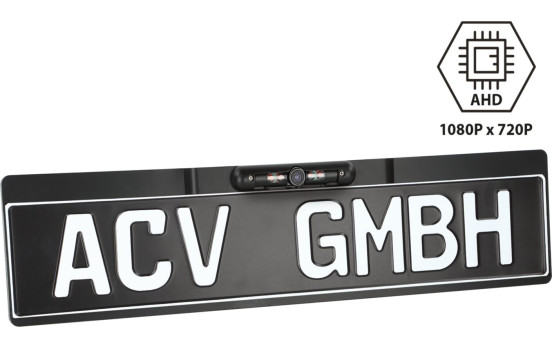

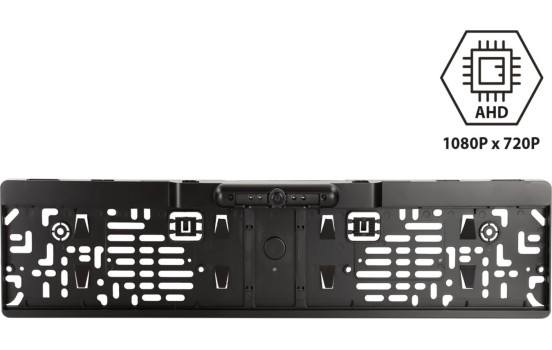

Reversing camera AHD (license plate) - surface-mounted construction

Rear view camera AHD universal

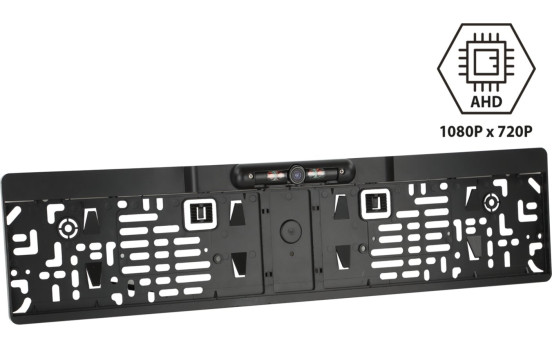

Design: License plate holder for EU license plates
Mounting Type: Replacement of the OEM license plate holder

With orientation lines / night vision function / adjustable viewing angle

Remark:

acv cameras are suitable for continuous use

Before installation > Check the viewing angle and alignment of the camera at the installation location using a test monitor

Camera supply voltage: +12V

Connection:
red: +12V switched loadable fused
black: body mass direct/GND

Cinch(m) yellow: Video

Jumper:
green: activate/deactivate orientation lines

License plate holder not suitable for Austrian license plates

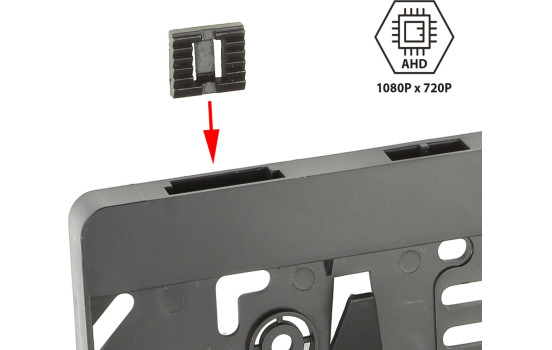

To mount the license plate, remove the plastic bars in the upper section
Place the license plate from bottom to top and click it into place at the bottom

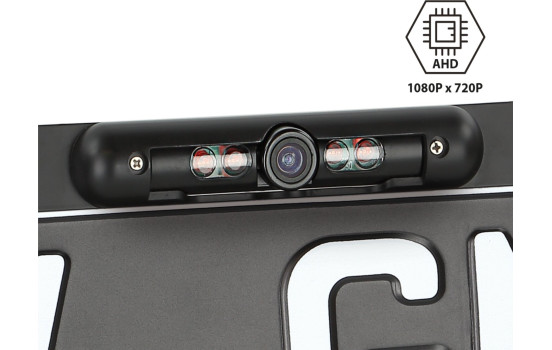

Product Features Camera:

Construction: plastic
Color: matt black
Extras: License plate holder / Orientation lines via jumper / Night vision function
Sensor type: 1/3� AHD
Image system: NTSC color
Effective pixels: 1080 x 720
Lens: mm/F
Minimum illumination: 0 lux with active night vision function
Resolution: TV lines
Lens angle: diagonal
Viewing angle: horizontal 115° / vertical 80° + 5°
Protected against dust and water: IP67
Connection: 4-pin acv system plug (m) Ø5.2mm
Operating voltage: +12V DC
Supply voltage: +12V DC
Power consumption: 120mA with active night vision function
Operating temperature range: -20°C - 70°C
Storage temperature: -40°C - 85°C
Dimensions: L / H / D - 525mm / 125mm / 38mm

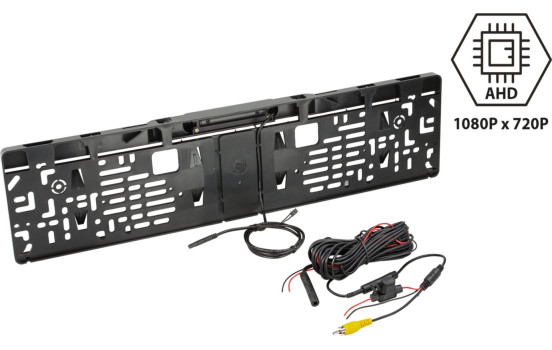

Connection cable to the camera 1m +/-:
4 pin acv system connector (m) Ø5.2mm
1 jumper

Extension 6.5m +/-:
4 pin acv system plug(f) Ø10mm / 4 pin acv system plug(m) Ø5.2mm
Power cable red 3m +/- wired: camera connection / reversing light connection on monitor
Ground cable/GND black 3m +/- wired: connection ground body/GND to camera / connection ground body/GND directly to monitor

Connection cable 20cm +/-:
4 pins acv system connector(f) Ø10mm
red: supply voltage
black: ground/GND
Cinch(m) yellow: Video

Installation accessories:

Connecting camera to interfaces:
NO contact relay electronic 2V-12V/1.5A max > Article: 40-AD-REMOTE
Connecting camera to reversing light:
Reversing camera Voltage stabilizer reversing signal > Item: 771000-6100

Optional accessories:

Camera cable extension for acv camera 5m > Article: 771000-6305
Camera cable extension for acv camera 10m > Article: 771000-6310
Camera cable extension for acv camera 15m > Article: 771000-6315

Suitable for:
Universal Various models Various years

---

application	Universal
Warranty	2 years
