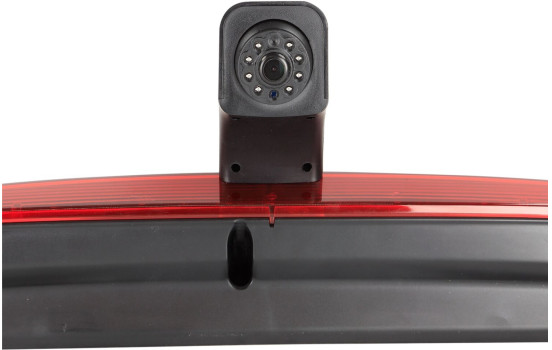

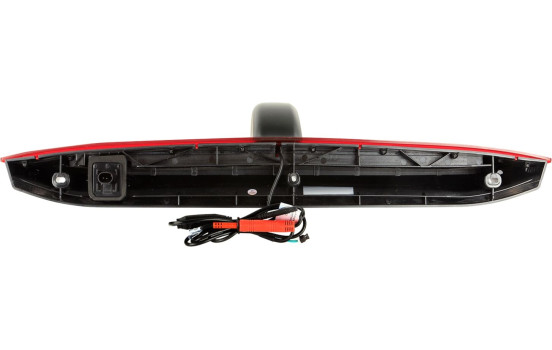

Rear View Camera Mercedes Benz Vito 2014-2022 (W447)

Rear view camera Mercedes Vito / Viano (W447) 2014 - 2021
for replacing the OEM 3rd brake light with orientation lines and adjustable viewing angle.

Note:

Only for vehicles with rear doors.

The camera must not be connected without a voltage converter from the cable set.
All ACV cameras are suitable for continuous use.

Camera Product Features:

Construction: plastic
Color: black
Extras: orientation lines and adjustable viewing angle
Sensor type: 1/3" CMOS
Image system: NTSC color
Effective pixels: 976 x 592
Lens: 1.9 mm / F 2.0
Min.Lux: 0 with active night vision function
Resolution: 600 TV lines
Viewing angle: 160 °
Viewing angle: horizontal 115°, vertical 75°+5°
Dust and waterproof: IP68
Connection: 4 pin mini connector 5.2 mm
Supply voltage: 12 V DC + 10%
Power consumption: 60mA with active night vision function
Operating temperature range: -30°C - 75°C
Storage temperature: -40 ° C - 80 ° C
Connection cable on the camera:
1 meter cable with 4-pin mini connector 5.2 mm

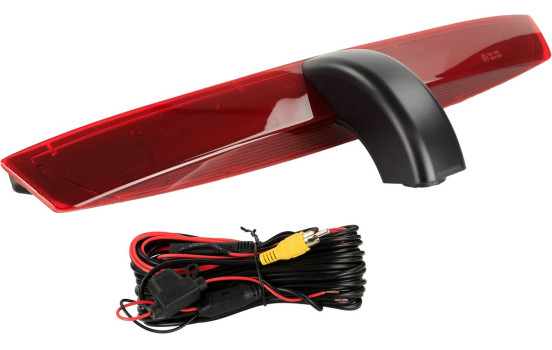

Cable set:
1 meter cable with 4-pin mini plug including 1 jumper
6.5 meter extension including 3 meter power cable for connection to the reversing light
and via cabling to the connection cable on the end device
4-pole mini connector 10 mm and plug 5.2 mm
0.2 meter power cable including fuse and video connection cable (RCA)
Optional accessories:
771000-6305 extension 5 meters
771000-6310 extension 10 meters
771000-6315 15 meter extension

Suitable for:
Mercedes Benz Vito 2014-2023 (447)

---

application	Ready
Warranty	2 years
