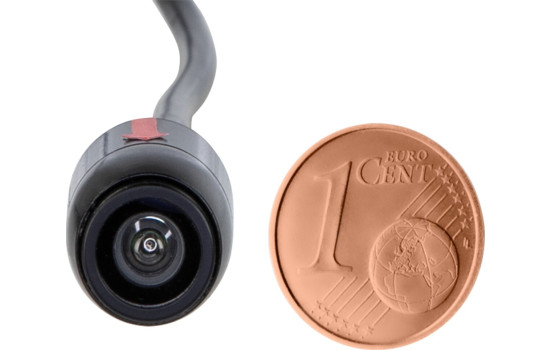

Rear view camera/front camera various mountings around

Universal reversing camera
Universal front camera

Design: round
Mounting type: under-mounted / surface-mounted / flush-mounted

With orientation lines / mirror function / various mounting brackets / click mounting

Remark:

acv cameras are suitable for continuous operation

Before installation > Check the viewing angle and orientation of the camera at the installation location with a test monitor

Camera supply voltage: +3V
Camera supply voltage: +12V / +24V

Connection without voltage converter +3V included in delivery will damage the camera

Connection:
red: +12V / +24V switched loadable fused
black: body mass direct/GND

Cinch(m) yellow: Video

jumper:
green: activate/deactivate orientation lines
white: activate/deactivate mirror function

Camera Product Features:
Construction: plastic
Color: black

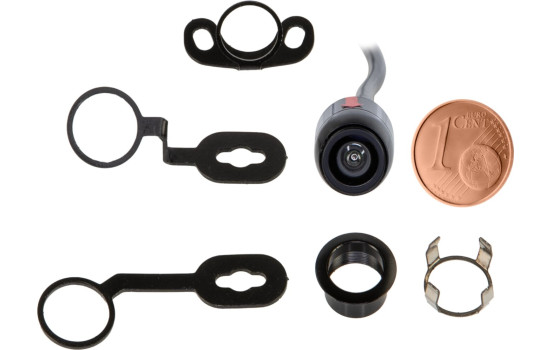

Extras: Orientation lines via jumper / mirror function via jumper / various mounting brackets / snap-in mounting
Sensor type: 1/4" CMOS
Image system: NTSC color
Effective pixels: 682 x 496
Lux: 0.1
Resolution: 480 TV lines CVBS D1
Lens angle: diagonal 135° +/- 5°
Viewing angle: horizontal 95° / vertical 75° +/- 5°
Dust and water resistant: IP68
Connection: 4-pin acv system connector(m) Ø5.2mm
Operating voltage: +3V DC
Supply voltage: +12V / +24V DC > with voltage converter
Current consumption: 60mA
Operating temperature range: -20°C - 70°C
Storage temperature: -40°C - 85°C
Dimensions: Ø12.5 mm

Connection cable to camera 1m +/-:
4 pin acv system connector (m) Ø5.2mm
2 jumpers

Voltage converter +3V:
4 pin acv system connector(f) Ø10mm / 4 pin acv system connector(m) Ø5.2mm

Extension 6.5m +/-:
4 pin acv system plug(f) Ø10mm / 4 pin acv system plug(m) Ø5.2mm
Power cable red 3m +/- wired through: camera connection / reversing light connection to monitor
Ground cable/GND black 3m +/- connected: connection ground body/GND to camera / connection ground body/GND directly to monitor

Connection cable 20cm +/-:
4 pins acv system connector(f) Ø10mm
red: supply voltage
black: ground/GND
Cinch(m) yellow: Video

Installation accessories:

Switch front camera:
Rear Camera Interface > Front Camera Switching > Item: 771000-6500
Rear Camera Interface > Switching Multiple Cameras > Item: 771000-6501

Camera connection to interfaces:
NO relay electronic 2V-12V/1.5A max > Article: 40-AD-REMOTE
Connecting camera to reversing light:
Reversing camera Voltage stabilizer reversing signal > Item: 771000-6100

Optional accessories:
Camera cable extension for acv camera 5m > Article: 771000-6305
Camera cable extension for acv camera 10m > Article: 771000-6310
Camera cable extension for acv camera 15m > Article: 771000-6315

Suitable for:
Universal Various models Various years

---

application	Universal
Warranty	2 years
