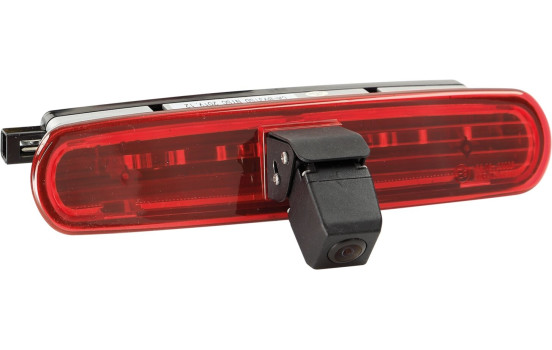

Rear view camera 3rd brake light - Fiat Doblo - Opel Combo

rear view camera

Opel Combo 2011-2018

Fiat Doblo 2010-2021

To replace the 3rd brake light

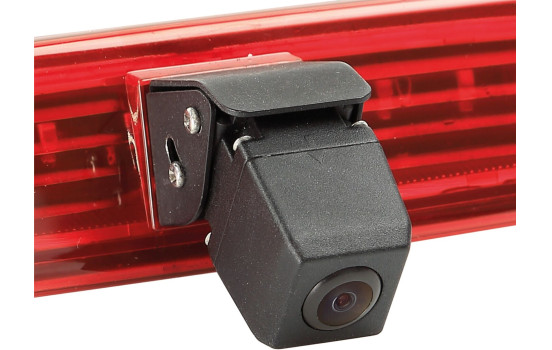

With orientation lines and adjustable viewing angle

An announcement:

All ACV cameras are suitable for connection to +12V continuous operation

Connection:
red + 12V switched load stable (fused)
black ground / GND body direct

Camera Product Features:

Construction: plastic
Color: black/red
Extras: orientation lines and adjustable viewing angle
Sensor type: 1/3" CMOS
Image system: NTSC color
Effective pixels: 976 x 592
Lens: 1.9mm / F 2.0
Resolution: 600 TV lines
Viewing angle: 160° + 5°
Viewing angle: horizontal 115°, vertical 75°+5°
Dust and waterproof: IP68
Connection: 4-pin mini plug 5.2 mm
Supply voltage: 12Volt + 10%
Operating temperature range: -30°C - 75°C
Storage temperature: -40 ° C - 80 ° C
Dimensions: see OEM brake light

Connection cable to the camera:

1 meter cable with 4-pin mini connector 5.2 mm

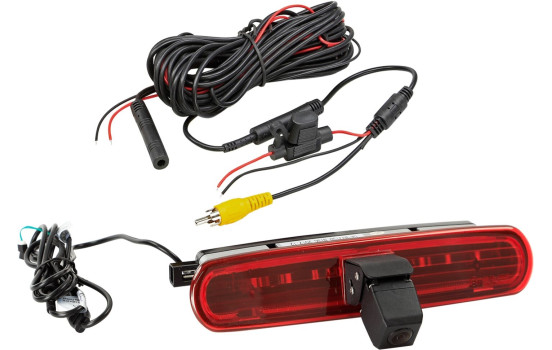

Cable set:

1 meter cable with 4-pin mini plug including 1 jumper

6.5 meter extension including 3 meter power cable for connection to the reversing light
and continuous cabling to the connection cable on the end device
4-pin mini-socket 10 mm and connector 5.2 mm

0.2 meter power connection cable including fuse and video connection cable (RCA)

Installation accessories:

Camera connection to interfaces Normally open relay, electronic 2V-12V / 1.5A max: 40-AD-REMOTE
Camera connection to the reversing light, reversing camera, voltage stabilizer, reversing signal: 771000-6100

Optional accessories:

5 meter extension cord: 771000-6305
10 meter extension cord: 771000-6310
15 meter extension cord: 771000-6315

Suitable for:
Fiat Doblo 2011-2023
Opel Combo 2011-2017

---

application	Ready
Warranty	2 years
