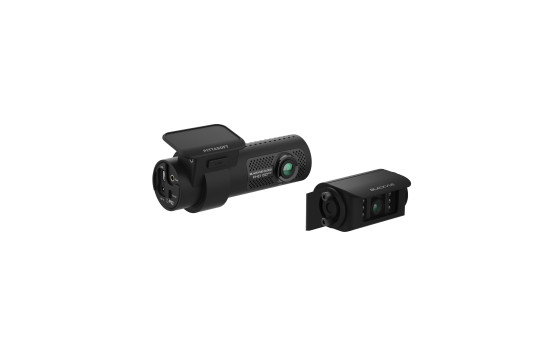

BlackVue DR770X-2CH Truck Full HD Dashcam 256GB

BlackVue DR770X-2CH Truck Full HD Dashcam 256GB

1. Infrared rear camera
2. Cloud
3. Full HD 1080p
4. Sony Starvis™ image sensors
5. WiFi
6. GPS
7. Advanced parking mode
8. And much more!

Model Name: DR770X-2CH Truck
Color/Size/Weight Black/Width:
Front: Black/Width 118.5mm x Height 36mm/105g
Back: Black/Width 70.0 mm x Height 44.4 mm/180 g

Memory microSD card: (64 GB/128 GB/256 GB)

Recording modes

Normal recording, Activity recording (when collision
is detected in normal and parking mode),
Manual recording and Parking recording (when
motion is detected)
* When you use a wired power cord,
ACC+ activates parking mode. When you other
methods used, G sensor will enter the parking mode
activate.

Camera:
Front: STARVISTM CMOS sensor (approx. 2.1M Pixel)
Rear: CMOS sensor (approx. 2.1 M Pixel)

Viewing angle
Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Back: Diagonal 120°, Horizontal 100°,
Vertical 60°
Resolution/Frame Rate:

Full HD at 60 fps - Full HD at 30 fps
*Frame rate may vary during Wi-Fi streaming.

Image quality: Highest (Extreme), Highest, High, Normal
Video compression mode: MP4
Wi-Fi: built-in (802.11 bgn)
GPS: built-in (Dual-Band: GPS, GLONASS)
Bluetooth: built-in (V2.1 + EDR/4.2)
LTE: external
Microphone: built-in
Speaker(Voice guidance): built-in
Lights: Recording LED, GPS/BT LED, Wi-Fi LED, Front Security LED, Proximity Sensor LED
Camera wavelength IR LEDs: 940 nm (6 Infrared (IR) LEDs)

Test
Wi-Fi button:
* Press once to turn Wi-Fi on or off.
Proximity sensor:
Touching the proximity sensor starts audio recording
on/off or manual recording is activated,
depending on the firmware settings.

Sensor: 3-axis acceleration sensor
Spare battery: built-in super capacitor
Input power: DC 12 V - 24 V (DC Plug (Ø3.5 x Ø1.35)) to wires (black: GND / yellow: B+ / red: ACC)

Energy consumption

Normal mode (Wi-Fi on / GPS on): 275mA/hour
Normal mode (Wi-Fi off / GPS on): 240mA/hour
Parking mode (Wi-Fi on / GPS off): 220mA/hour
Parking mode (Wi-Fi off / GPS off): 185mA/hour
* About. 60mA extra power consumption when IR LEDs are ON.
* Actual energy consumption may vary depending
of the usage and environmental conditions.

Operating temperature: -20°C - 85°C (-4°F - 185°F)
Storage temperature: -20°C - 90°C (-4°F - 194°F)
High temperature interruption: Approx. 85°C (185°F)
Certifications: FCC, CE, RoHS, Telec, WEEE, IC

Software: BlackVue Viewer * Windows 7 or newer and Mac Yosemite OS

Other: Custom format-free file management system

Suitable for:
