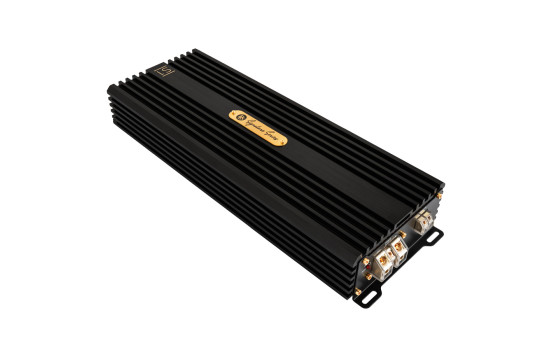

DLS Signature series 1-channel mono amplifier CAS1

Signature Series - S1

The next evolution of DLS
2019 marked the 40th anniversary of DLS. For four decades we've given enthusiasts exactly what they wanted, but we knew we could do even better.
Together with Gordon Taylor we embarked on a new journey to create perfection.

Silence is golden
A really great amplifier makes no sound at all. The Signature Series has unparalleled low distortion and an extremely high signal-to-noise ratio, so you hear only music and new details in your
experience your favorite songs with warm clarity and solid mid-bass with impressive authority.

Optimized for perfection

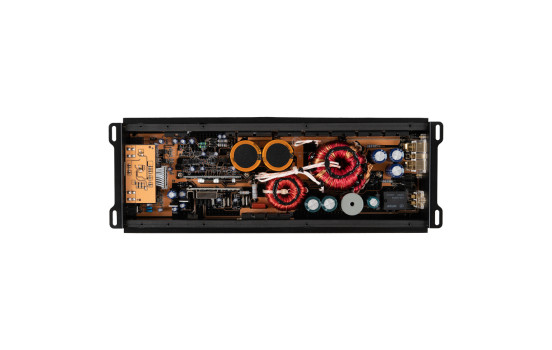

No detail has been left untouched, from the customized cooling system to the power supply. We even tuned each channel individually and synced each component together to perform in perfect harmony.

When used in conjunction with a Digital Sound Processor, there is an option to bypass all preamp circuitry, giving the DSP full control over all sound tuning parameters.
This allows a pure and unchanged signal to fully reach the amplification stage without sonic degradation.

Enjoy music fully, unchanged and perfectly with the Signature series.

Number of channels - 1
Amplifier class - D
Output power into 1 ohm - 1 x 1000 Watts
Output power into 2 ohms - 1 x 800 Watts
Output power into 4 ohms - 1 x 450 Watts
Damping factor >150
THD at 3W, 20Hz-300Hz <0.06%
THD at 400W, 100Hz <0.09%
S/N ratio, A-weighted 94 dB
Frequency range 10 Hz - 250 Hz
Input sensitivity 1 - 4 Volts
Input impedance, low level 22 kohm
Input impedance, high level 45 ohms

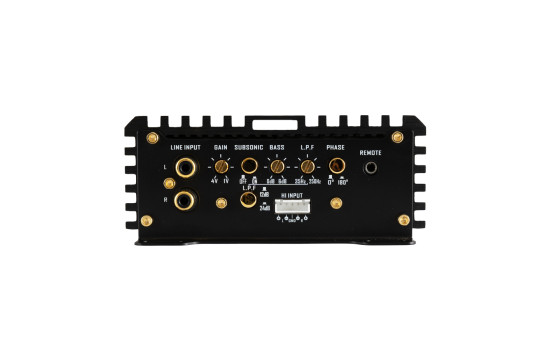

Low-pass filter 35-250 Hz
Power consumption (idle) 1.2 A
Power consumption (max) 102 A
Bass boost @ 45 Hz 0- +6dB
Subsonic filter 30 Hz ON/OFF
Phase switch 0/180°
Remote sub-level control with 5m cable
Internal cooling fan
Dimensions (W x D x H) 129 x 370 x 54 mm (5.1? x 14.6? x 2.1?)
Weight 2.9 kg

Suitable for:
1-Channel

---

Output	1000 watt
Number of channels	1
Warranty	2 years
