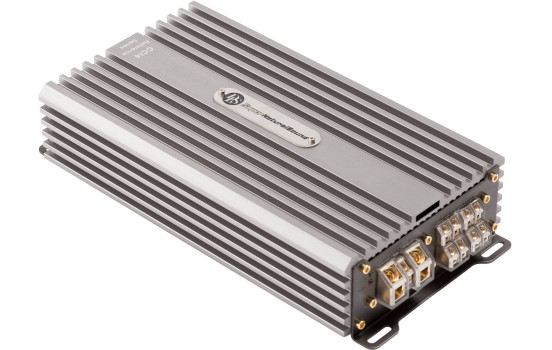

DLS 4-channel amplifier CCi4

Reference Series - CCi4
The CCi series amplifiers are designed and tuned by Gordon Taylor in collaboration with DLS Sweden. They all share the unique intelligent cooling of the small housing.

The clever machining of the heat sink gives more heat dissipation fins on the outside and on the inside there is a large area of small fins that dissipate the heat of the air passing through the circuit board
collects and releases flows through thin slots in the side panels. The CCi series produces more power and less heat - you hear it and you feel it!

The prized DLS audiophile sound is ensured by linear controls feeding the preamp and a high bias drive circuit. In combination with high-quality output equipment
This makes the DLS amplifiers simply sonically superior to the competitors. Shimmering details with warm mids and an industry-leading S/N ratio of over 110 dBA - the amplifier is dead quiet!
For perfect system integration, the CCi series includes the proven DLS High level converter with Auto start for serious upgrading of OEM radios and a wide input level.


Number of channels - 4
Reinforcement class - AB
Mono bridge mode 4 ohm - 140 Watt
Output power into 2 ohms - 4 x 70 Watts
Output power into 4 ohms - 4 x 50 Watts
Damping factor >250
THD at 5W, 20 Hz - 20 kHz. <0.25%
S/N ratio, A-weighted >110 dB
Frequency range 10 Hz - 55 kHz
Input sensitivity 1 - 4 Volts
Input impedance 6 kohm
Input impedance, high level 45 ohms
High pass filter 50 - 500Hz
Low-pass filter 50 - 500Hz
Power consumption (idle) 0.5 A
Power consumption (max) 40 A
High level input with automatic start Yes
Integrated fan
Dimensions (W x D x H) 129 x 260 x 51 mm (5.1? x 10.2? x 2?)
Weight 1.8 kg

Suitable for:
4-Channel

---

Output	280 watt
Number of channels	4
Warranty	2 years
