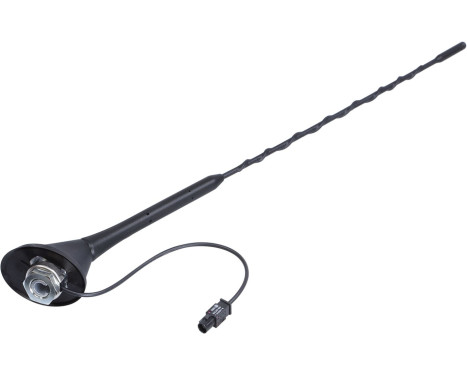

Roof antenna DAB/DAB+ 60° rod tilt passive

Roof antenna AM/FM DAB/DAB+
Type 16V
Note:
NEW ITEM FOR 15-7677913 / 15-7677931
CONNECTION AND ACCESSORIES CHANGED
OPTIONAL ACCESSORIES LISTED BELOW:

Types of reception: DAB/DAB+

Assembly:
Installation location: rear roof
Bore round: 19 mm
Square hole: 15mm x 15mm
Bar length: 410 mm
Bar tilt: 60°
Bar type: anti-noise
Thread: M6

Dimensions:
Total height: 450 mm
Antenna base: L = 60 mm / W = 43 mm
Connection:
DAB/DAB+: Fakra A(m) black RG174 / 100 mm

Frequency range:
DAB/DAB+: 174MHz - 240MHz

Extra:
DAB/DAB+: 3dBi

Power supply:
DAB: passive

Impedance:
DAB/DAB+: 50 ohm

standing wave ratio:
DAB/DAB+: <3.5:1

Options:
DAB/DAB+:
Antenna cable extension Fakra(f) > SMB(f) 500cm: 15-7581141
Antenna adapter SMB(m) > SMA(m): 1502-29

Replacement stick without base:
Antenna rod AM/FM DAB/DAB+ 41cm M6: 15-7551040

Suitable for:
AM FM DAB DAB+
Universal

---

Material	Plastic
Foot	Including
Length	41 cm
application	Sprite
Cable	Including
Warranty	2 years
