ACV

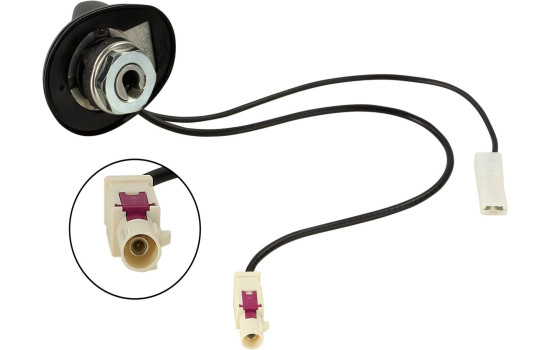

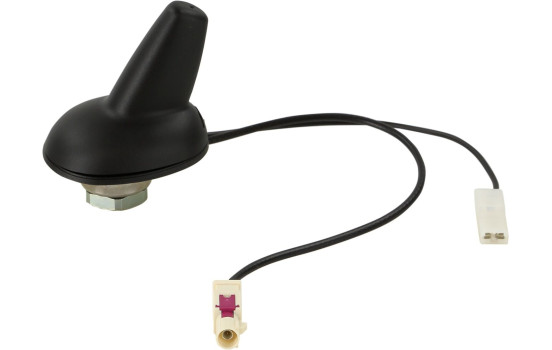

Roof antenna AM/FM Shark

Universally applicable

Roof antenna AM/FM Shark Roof antenna AM/FM Shark, Image 2
  • Roof antenna AM/FM Shark
  • Roof antenna AM/FM Shark, Thumbnail 2

Product number: 1684578

Manufacturer number: 15-7677805

EAN: 4026724112320

£ 54.55

Incl. VAT
View product specifications
In stock
Delivery 03-04-2025

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

  • Specifications

    Roof antenna AM/FM
    Shape Shark
    NB:
    NEW ITEM FOR 15-7677800
    CONNECTION AND ACCESSORIES CHANGED
    OPTIONAL ACCESSORIES LISTED BELOW:
    only for strong transmitters
    Types of reception: AM/FM

    Assembly:
    Installation location: rear roof
    Bore round: 19 mm
    Square hole: 15mm x 15mm

    Dimensions:
    Antenna base: L = 60 mm / W = 45 mm / H = 50 mm

    Connection:
    AM/FM: Fakra B(m) white RG174 / 250 mm
    External power supply: flat plug 6.3 mm

    Frequency range:
    AM: 150 kHz - 1710 kHz
    FM: 87.5MHz-108MHz

    Power supply:
    AM/FM: 12V external/12V phantom power

    Energy consumption:
    AM/FM: 60mA max
    Impedance:
    AM/FM: 50 ohm
    Options: AM/FM:
    Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581995
    Antenna adapter Fakra(m) > DIN(m) passive: 1524-01
    Antenna adapter Fakra(m) > ISO(m) passive: 1524-02
    Antenna adapter Fakra(m) > DIN(m) 12V Phantom: 1524-03
    Antenna adapter Fakra (m) > ISO(m) 12V phantom power: 1524-04

    Suitable for:
    AM FM
    MaterialPlastic
    FootIncluding
    Length6 cm
    applicationSharkfin
    CableIncluding
    Warranty2 years

  • Applicability

    Universally applicable

  • Manufacturer

    ACV

  • Delivery time

    Expected delivery date:

    03-04-2025
