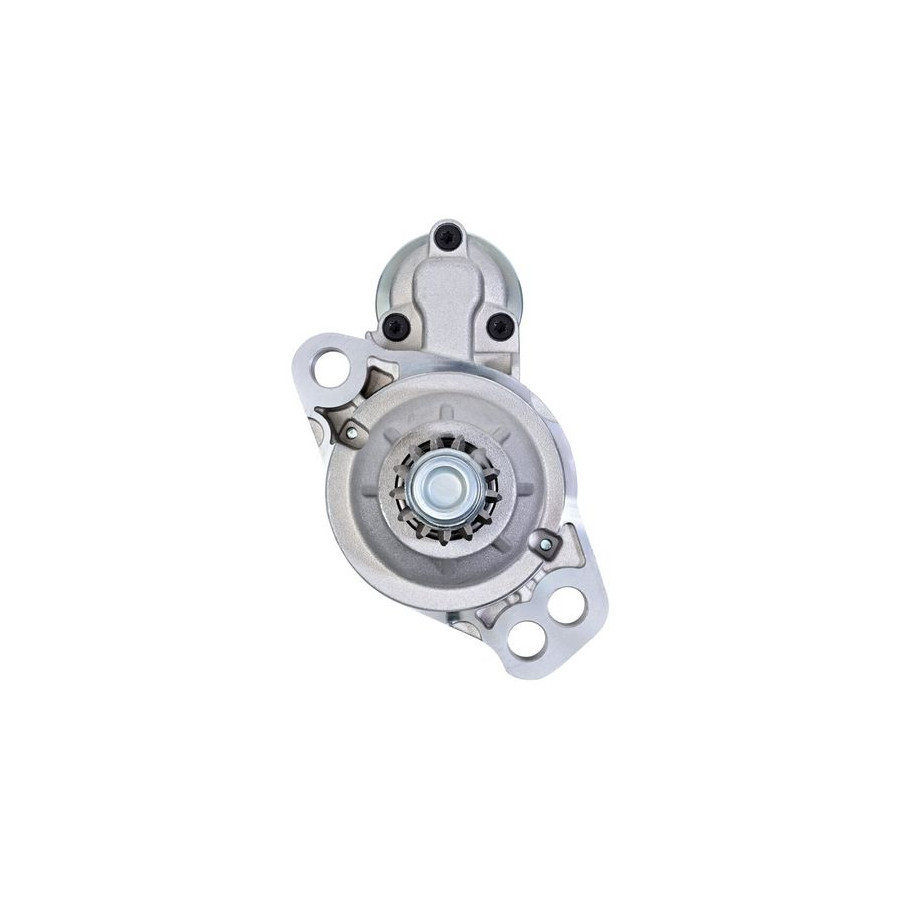

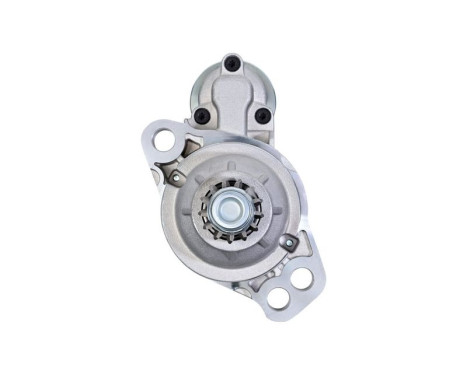

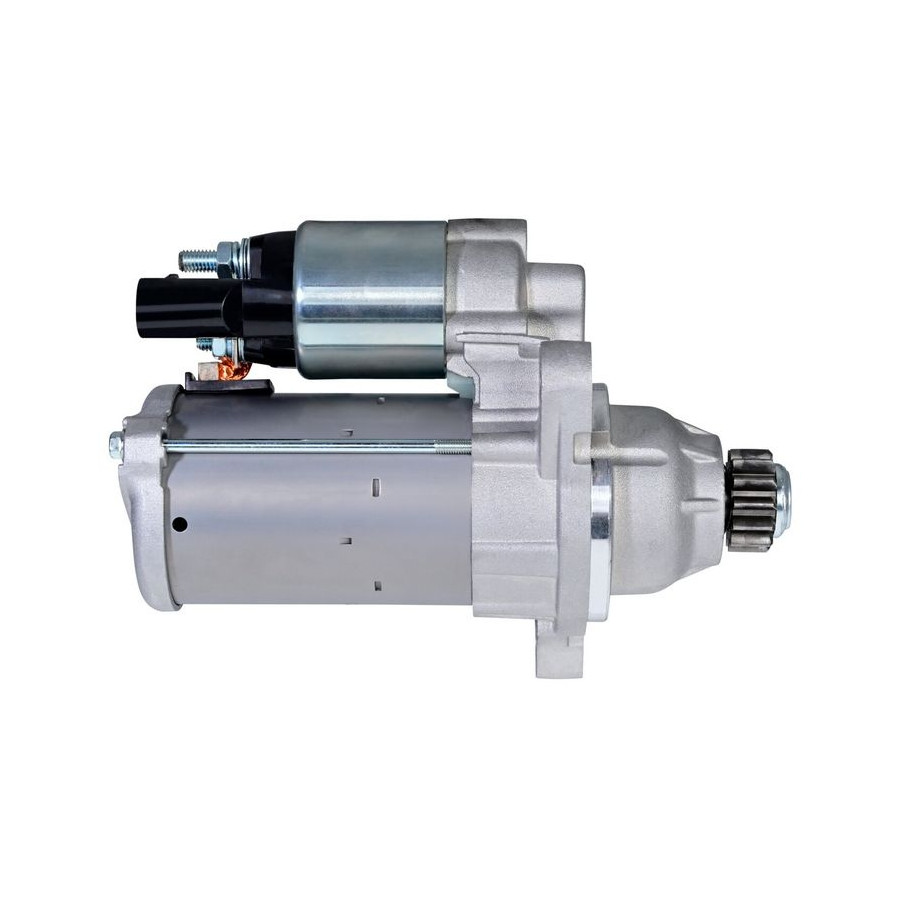

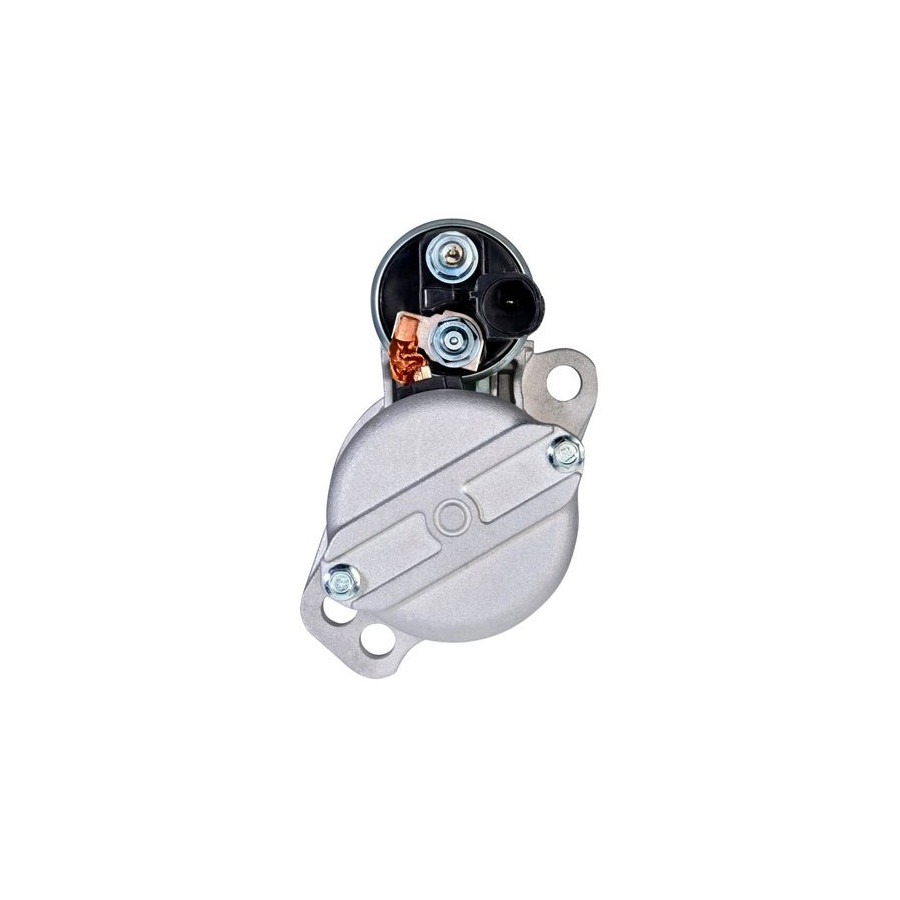

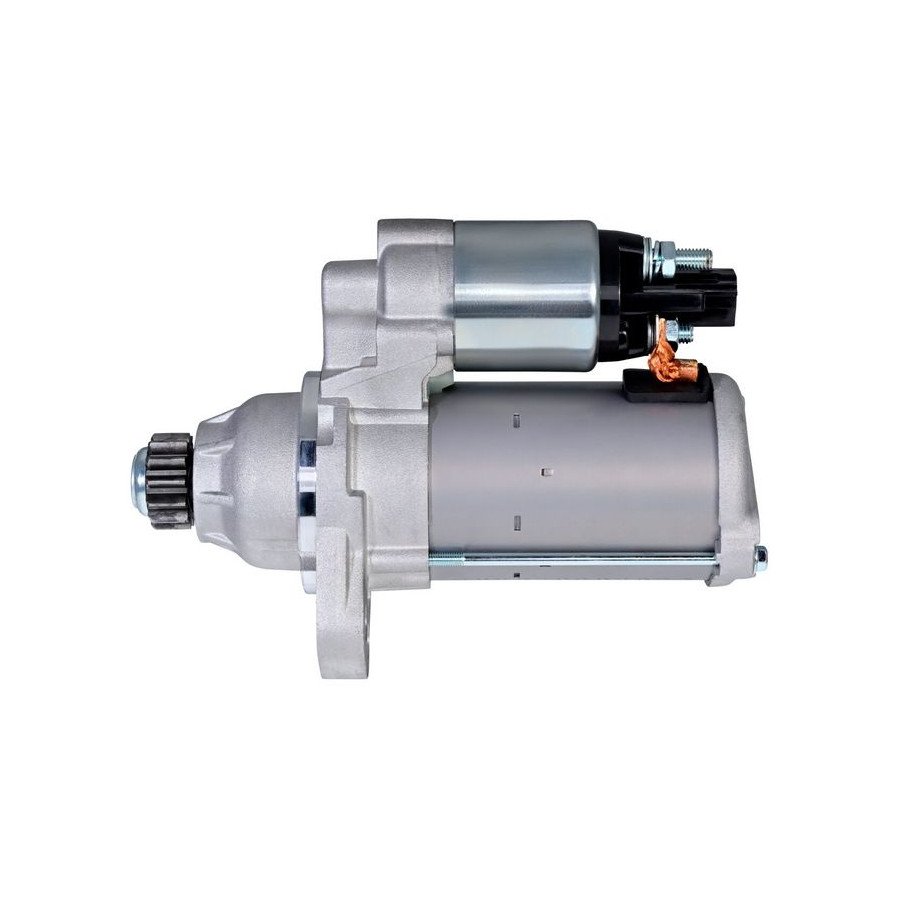

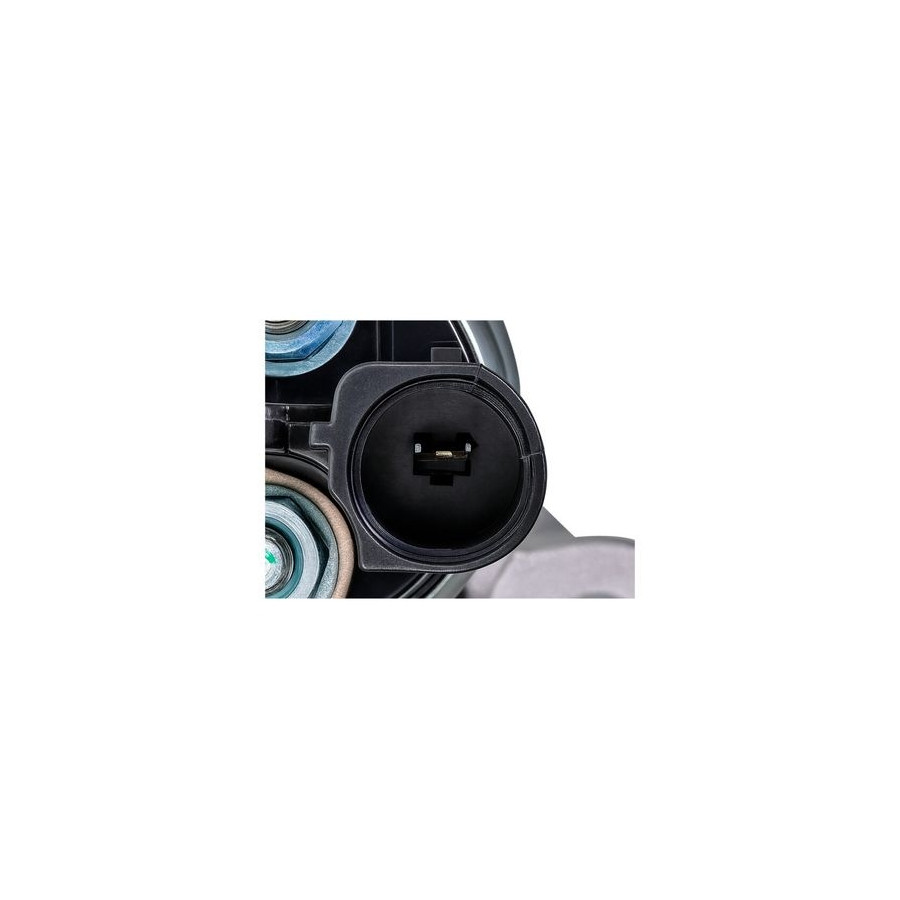

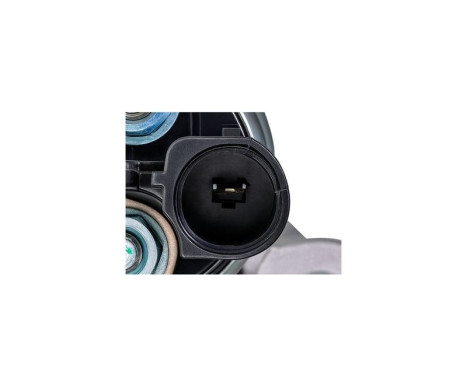

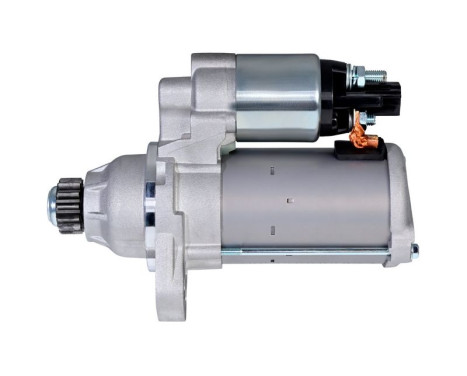

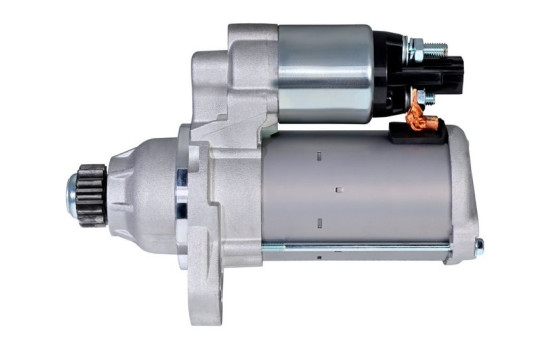

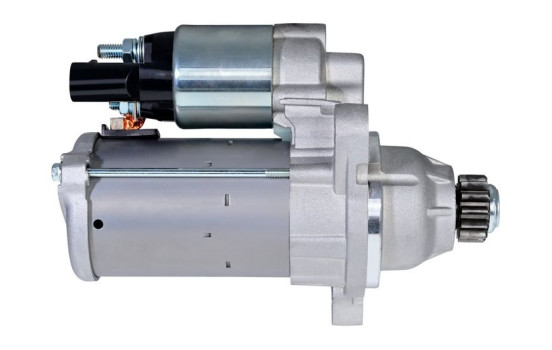

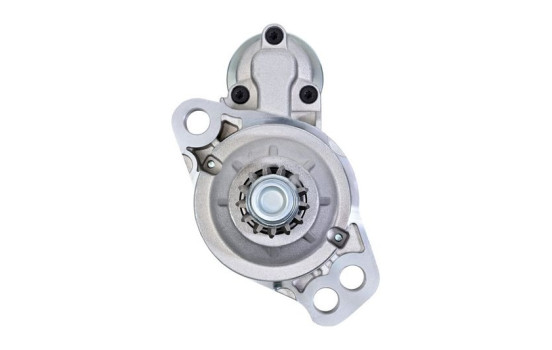

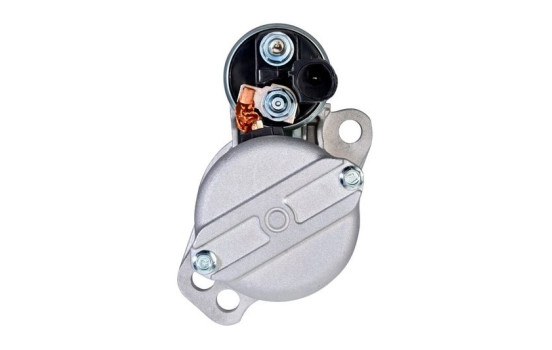

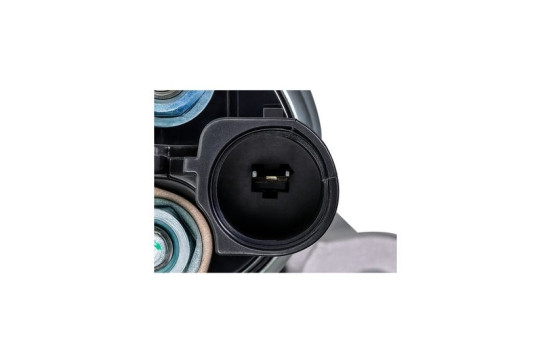

Starter 8EA 012 528-701 Hella

Name: Starter 8EA 012 528-701 Hella | Winparts.co.uk - Starter motor
Brand: Hella
SKU: 1077406
Price: 150.50 GBP
Availability: InStock

Product number: 1077406

Manufacturer number: 8EA 012 528-701

EAN: 4082300744651

£ 150.⁵⁰

Incl. VAT

View product specifications

Not available

Free Shipping

Free 30 days exchanges
Any part, any car
Fast shipping: 2 days
Expert support

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or select your vehicle.

Specifications

Number of Teeth	13
Rated Power [kW]	1,1
Number of mounting bores	3
Rotation Direction	Anti-clockwise rotation
Voltage [V]	12
Warranty	2 years
Pinion start position [mm]	63
Used part return not required
New part without deposit
Assy./disassy. by qualified personnel required!
Flange diameter [mm]	79

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
AES	300.916.133.010
AES	300.916.133.280
ALANKO	10439541
ALANKO	11439541
AUTOTEAM	SBO514
CASCO	CST10514AS
CASCO	CST10514GS
CEVAM	3231
CV PSH	300.916.133.281
CV PSH	300.916.133.010	£ 94.97
CV PSH	300.916.133.280
CV PSH	300.916.133.500
DRI	311284132
EAI	12230

Manufacturer	Manufacturer number	Price
ELSTOCK	25-4304
ERA	220786
EUROTEC	11090251	£ 103.39
HC-Cargo	115696
HELLA	8EA 012 528-701	£ 150.50
HELLA	8EA 012 528-701	(this product)
HERTH+BUSS ELPARTS	42177006
MAGNETI MARELLI	063725696010
PowerMax	88214397
SNRA	VW9100
TURBO MOTOR	ST01801
VALEO	458867
VEMO	V10-12-77006

Applicability

AUDI

	A1
	A1 (8X1, 8XK) \| 05.2010-10.2018 1.4 TFSI - 1395ccm, 125pk, 92kw - CZCA, CZDD
	A1 (8X1, 8XK) \| 05.2010-10.2018 1.4 TSI - 1395ccm, 150pk, 110kw - CZEA
	A1 Sportback
	A1 Sportback (8XA, 8XF) \| 09.2011-10.2018 1.4 TFSI - 1395ccm, 125pk, 92kw - CZCA, CZDD
	A1 Sportback (8XA, 8XF) \| 09.2011-10.2018 1.4 TSI - 1395ccm, 150pk, 110kw - CZEA
	A3
	A3 (8V1, 8VK) \| 04.2012-10.2020 S3 quattro - 1984ccm, 300pk, 221kw - CJXC
	A3 (8V1, 8VK) \| 04.2012-10.2020 S3 quattro - 1984ccm, 286pk, 210kw - CJXF
	A3 (8V1, 8VK) \| 04.2012-10.2020 S3 quattro - 1984ccm, 310pk, 228kw - CJXG, DJHA
	A3 Limousine
	A3 Limousine (8VS, 8VM) \| 05.2013-10.2020 S3 quattro - 1984ccm, 300pk, 221kw - CJXC, DNUE
	A3 Limousine (8VS, 8VM) \| 05.2013-10.2020 S3 quattro - 1984ccm, 310pk, 228kw - CJXG, DJHA
	A3 Sportback
	A3 Sportback (8VA, 8VF) \| 09.2012-10.2020 S3 quattro - 1984ccm, 300pk, 221kw - CJXC, DNUE
	A3 Sportback (8VA, 8VF) \| 09.2012-10.2020 S3 quattro - 1984ccm, 286pk, 210kw - CJXF
	A3 Sportback (8VA, 8VF) \| 09.2012-10.2020 S3 quattro - 1984ccm, 310pk, 228kw - CJXG, DJHA
	Q3
	Q3 (8UB, 8UG) \| 06.2011-10.2018 1.4 TFSI - 1395ccm, 125pk, 92kw - CZDB
	Q3 (8UB, 8UG) \| 06.2011-10.2018 1.4 TSI - 1395ccm, 150pk, 110kw - CHPB, CZDA, CZEA

SEAT

	IBIZA Mk
	IBIZA Mk IV (6J5, 6P1) \| 03.2008-06.2017 1.0 - 999ccm, 75pk, 55kw - CHYB
	IBIZA Mk IV (6J5, 6P1) \| 03.2008-06.2017 1.0 TSI - 999ccm, 95pk, 70kw - CHZB
	IBIZA Mk IV (6J5, 6P1) \| 03.2008-06.2017 1.0 TSI - 999ccm, 110pk, 81kw - CHZC
	IBIZA Mk IV (6J5, 6P1) \| 03.2008-06.2017 1.2 TSI - 1197ccm, 90pk, 66kw - CJZC
	IBIZA Mk IV (6J5, 6P1) \| 03.2008-06.2017 1.2 TSI - 1197ccm, 110pk, 81kw - CJZD
	IBIZA Mk IV SC (6J1, 6P5) \| 06.2008-12.2016 1.0 - 999ccm, 75pk, 55kw - CHYB
	IBIZA Mk IV SC (6J1, 6P5) \| 06.2008-12.2016 1.0 TSI - 999ccm, 95pk, 70kw - CHZB
	IBIZA Mk IV SC (6J1, 6P5) \| 06.2008-12.2016 1.0 TSI - 999ccm, 110pk, 81kw - CHZC
	IBIZA Mk IV SC (6J1, 6P5) \| 06.2008-12.2016 1.2 TSI - 1197ccm, 90pk, 66kw - CJZC
	IBIZA Mk IV SC (6J1, 6P5) \| 06.2008-12.2016 1.2 TSI - 1197ccm, 110pk, 81kw - CJZD
	IBIZA Mk IV ST (6J8, 6P8) \| 03.2010-07.2016 1.0 - 999ccm, 75pk, 55kw - CHYB
	IBIZA Mk IV ST (6J8, 6P8) \| 03.2010-07.2016 1.0 TSI - 999ccm, 95pk, 70kw - CHZB
	IBIZA Mk IV ST (6J8, 6P8) \| 03.2010-07.2016 1.0 TSI - 999ccm, 110pk, 81kw - CHZC
	IBIZA Mk IV ST (6J8, 6P8) \| 03.2010-07.2016 1.2 TSI - 1197ccm, 90pk, 66kw - CJZC
	IBIZA Mk IV ST (6J8, 6P8) \| 03.2010-07.2016 1.2 TSI - 1197ccm, 110pk, 81kw - CJZD
	IBIZA Mk V (KJ1, KJG) \| 01.2017-??? 1.0 - 999ccm, 75pk, 55kw - CHYB
	IBIZA Mk V (KJ1, KJG) \| 01.2017-??? 1.0 - 999ccm, 65pk, 48kw - CHYC, DFNB
	IBIZA Mk V (KJ1, KJG) \| 01.2017-??? 1.6 - 1598ccm, 110pk, 81kw - CWVA
	LEON
	LEON (5F1) \| 09.2012-08.2020 1.2 TSI - 1197ccm, 105pk, 77kw - CJZA
	LEON (5F1) \| 09.2012-08.2020 1.2 TSI - 1197ccm, 86pk, 63kw - CJZB, CYVA
	LEON (5F1) \| 09.2012-08.2020 2.0 Cupra - 1984ccm, 280pk, 206kw - CJXA
	LEON (5F1) \| 09.2012-08.2020 2.0 Cupra - 1984ccm, 265pk, 195kw - CJXE
	LEON SC
	LEON SC (5F5) \| 01.2013-08.2018 1.2 TSI - 1197ccm, 105pk, 77kw - CJZA
	LEON SC (5F5) \| 01.2013-08.2018 1.2 TSI - 1197ccm, 86pk, 63kw - CJZB, CYVA
	LEON SC (5F5) \| 01.2013-08.2018 2.0 Cupra - 1984ccm, 280pk, 206kw - CJXA
	LEON SC (5F5) \| 01.2013-08.2018 2.0 Cupra - 1984ccm, 265pk, 195kw - CJXE
	LEON SC (5F5) \| 01.2013-08.2018 2.0 Cupra - 1984ccm, 290pk, 213kw - CJXH
	LEON ST
	LEON ST (5F8) \| 09.2012-08.2020 1.2 TSI - 1197ccm, 105pk, 77kw - CJZA
	LEON ST (5F8) \| 09.2012-08.2020 1.2 TSI - 1197ccm, 86pk, 63kw - CJZB, CYVA
	LEON ST (5F8) \| 09.2012-08.2020 2.0 Cupra - 1984ccm, 280pk, 206kw - CJXA
	LEON ST (5F8) \| 09.2012-08.2020 2.0 Cupra - 1984ccm, 265pk, 195kw - CJXE
	LEON ST (5F8) \| 09.2012-08.2020 2.0 Cupra 4Drive - 1984ccm, 300pk, 221kw - CJXC, DNUE
	Mii
	Mii (KF1, KE1) \| 10.2011-07.2019 1.0 - 999ccm, 60pk, 44kw - CHYA
	Mii (KF1, KE1) \| 10.2011-07.2019 1.0 - 999ccm, 75pk, 55kw - CHYB
	TOLEDO IV
	TOLEDO IV (KG3) \| 07.2012-04.2019 1.2 TSI - 1197ccm, 90pk, 66kw - CJZC
	TOLEDO IV (KG3) \| 07.2012-04.2019 1.2 TSI - 1197ccm, 110pk, 81kw - CJZD
	TOLEDO IV (KG3) \| 07.2012-04.2019 1.6 - 1598ccm, 110pk, 81kw - CWVA

SKODA

	CITIGO
	CITIGO (NF1) \| 10.2011-08.2019 1.0 - 999ccm, 60pk, 44kw - CHYA
	CITIGO (NF1) \| 10.2011-08.2019 1.0 - 999ccm, 75pk, 55kw - CHYB
	CITIGO (NF1) \| 10.2011-08.2019 1.0 CNG - 999ccm, 68pk, 50kw - CPGA
	FABIA III
	FABIA III (NJ3) \| 08.2014-06.2021 1.0 - 999ccm, 60pk, 44kw - CHYA, CHYE
	FABIA III (NJ3) \| 08.2014-06.2021 1.0 - 999ccm, 75pk, 55kw - CHYB
	FABIA III (NJ3) \| 08.2014-06.2021 1.6 - 1598ccm, 110pk, 81kw - CWVA
	FABIA III Estate (NJ5) \| 08.2014-12.2022 1.0 - 999ccm, 60pk, 44kw - CHYA, CHYE
	FABIA III Estate (NJ5) \| 08.2014-12.2022 1.0 - 999ccm, 75pk, 55kw - CHYB
	FABIA III Estate (NJ5) \| 08.2014-12.2022 1.6 - 1598ccm, 110pk, 81kw - CWVA
	FABIA III Praktik (NJ5) \| 10.2014-12.2022 1.0 - 999ccm, 60pk, 44kw - CHYA
	FABIA III Praktik (NJ5) \| 10.2014-12.2022 1.0 - 999ccm, 75pk, 55kw - CHYB
	KODIAQ I
	KODIAQ I (NS6, NS7, NV7) \| 10.2016-??? 1.4 TSI - 1395ccm, 125pk, 92kw - CZCA, CZDB
	KODIAQ I (NS6, NS7, NV7) \| 10.2016-??? 1.4 TSI 4x4 - 1395ccm, 150pk, 110kw - CZDA, CZEA
	RAPID
	RAPID (NH3, NK3, NK6) \| 07.2012-03.2022 1.2 TSI - 1197ccm, 90pk, 66kw - CJZC
	RAPID (NH3, NK3, NK6) \| 07.2012-03.2022 1.2 TSI - 1197ccm, 110pk, 81kw - CJZD
	RAPID (NH3, NK3, NK6) \| 07.2012-03.2022 1.6 - 1598ccm, 110pk, 81kw - CWVA
	RAPID (NH3, NK3, NK6) \| 07.2012-03.2022 1.6 SRE - 1598ccm, 90pk, 66kw - CWVB
	RAPID Spaceback
	RAPID Spaceback (NH1) \| 07.2012-12.2019 1.2 TSI - 1197ccm, 90pk, 66kw - CJZC
	RAPID Spaceback (NH1) \| 07.2012-12.2019 1.2 TSI - 1197ccm, 110pk, 81kw - CJZD
	RAPID Spaceback (NH1) \| 07.2012-12.2019 1.6 SRE - 1598ccm, 110pk, 81kw - CWVA
	SUPERB III
	SUPERB III (3V3) \| 03.2015-??? 1.8 TSI - 1798ccm, 180pk, 132kw - CJSA, CJSC
	SUPERB III Estate (3V5) \| 03.2015-??? 1.8 TSI - 1798ccm, 180pk, 132kw - CJSA, CJSC

VOLKSWAGEN

	BEETLE
	BEETLE (5C1, 5C2) \| 04.2011-07.2019 2.0 TSI - 1984ccm, 211pk, 155kw - CPLA, CPPA
	BEETLE Convertible
	BEETLE Convertible (5C7, 5C8) \| 12.2011-07.2019 2.0 TSI - 1984ccm, 210pk, 155kw - CPLA, CPPA
	CALIFORNIA T6
	CALIFORNIA T6 Camper (SGC, SGG, SHC) \| 04.2015-08.2024 2.0 TSI - 1984ccm, 150pk, 110kw - CJKB
	CARAVELLE Mk
	CARAVELLE Mk VI (SGF, SGM, SGN, SHM, SHN) \| 04.2015-08.2024 2.0 TSI - 1984ccm, 150pk, 110kw - CJKB
	GOLF SPORTSVAN
	GOLF SPORTSVAN VII (AM1, AN1) \| 02.2014-08.2020 1.2 TSI - 1197ccm, 86pk, 63kw - CYVA
	GOLF SPORTSVAN VII (AM1, AN1) \| 02.2014-08.2020 1.6 - 1598ccm, 110pk, 81kw - CWVA
	GOLF VII
	GOLF VII (5G1, BQ1, BE1, BE2) \| 08.2012-03.2021 1.2 TSI - 1197ccm, 86pk, 63kw - CJZB, CYVA
	GOLF VII (5G1, BQ1, BE1, BE2) \| 08.2012-03.2021 1.6 - 1598ccm, 110pk, 81kw - CWVA
	GOLF VII (5G1, BQ1, BE1, BE2) \| 08.2012-03.2021 2.0 R 4motion - 1984ccm, 310pk, 228kw - CJXG, DJHA
	GOLF VII Estate (BA5, BV5) \| 04.2013-03.2021 1.2 TSI - 1197ccm, 86pk, 63kw - CJZB, CYVA
	GOLF VII Estate (BA5, BV5) \| 04.2013-03.2021 1.6 - 1598ccm, 110pk, 81kw - CWVA
	JETTA IV
	JETTA IV (162, 163, AV3, AV2) \| 04.2010-04.2018 1.4 TSI - 1395ccm, 150pk, 110kw - CZDA, CZTA
	JETTA IV (162, 163, AV3, AV2) \| 04.2010-04.2018 1.6 - 1598ccm, 110pk, 81kw - CWVA
	JETTA IV (162, 163, AV3, AV2) \| 04.2010-04.2018 1.8 TSI - 1798ccm, 170pk, 125kw - CPKA, CPRA
	JETTA IV (162, 163, AV3, AV2) \| 04.2010-04.2018 2.0 TSI - 1984ccm, 211pk, 155kw - CPLA, CPPA
	LOAD UP
	LOAD UP (121, 122, BL1, BL2) \| 12.2014-08.2020 1.0 - 999ccm, 60pk, 44kw - CHYA, DAFA
	LOAD UP (121, 122, BL1, BL2) \| 12.2014-08.2020 1.0 EcoFuel - 999ccm, 68pk, 50kw - CPGA
	PASSAT B8
	PASSAT B8 (3G2, CB2) \| 08.2014-??? 1.8 TSI - 1798ccm, 180pk, 132kw - CJSA, CJSC
	PASSAT B8 Estate (3G5, CB5) \| 08.2014-07.2018 1.8 TSI - 1798ccm, 180pk, 132kw - CJSA, CJSC
	POLO V
	POLO V (6R1, 6C1) \| 03.2009-05.2022 1.0 - 999ccm, 60pk, 44kw - CHYA
	POLO V (6R1, 6C1) \| 03.2009-05.2022 1.0 - 999ccm, 75pk, 55kw - CHYB
	POLO V (6R1, 6C1) \| 03.2009-05.2022 1.0 TSI - 999ccm, 95pk, 70kw - CHZB
	POLO V (6R1, 6C1) \| 03.2009-05.2022 1.0 TSI - 999ccm, 110pk, 81kw - CHZC
	POLO V (6R1, 6C1) \| 03.2009-05.2022 1.2 TSI - 1197ccm, 110pk, 81kw - CJZD
	POLO V (6R1, 6C1) \| 03.2009-05.2022 1.2 TSI 16V - 1197ccm, 90pk, 66kw - CJZC
	POLO V (6R1, 6C1) \| 03.2009-05.2022 1.6 - 1598ccm, 90pk, 66kw - CWVB
	POLO V (6R1, 6C1) \| 03.2009-05.2022 2.0 R WRC - 1984ccm, 220pk, 162kw - CDLJ
	POLO V Saloon (602, 604, 612, 614) \| 05.2010-05.2022 1.4 TSi - 1395ccm, 125pk, 92kw - CZCA
	POLO VI
	POLO VI (AW1, BZ1, AE1) \| 06.2017-08.2021 1.0 - 999ccm, 75pk, 55kw - CHYB
	POLO VI (AW1, BZ1, AE1) \| 06.2017-08.2021 1.0 - 999ccm, 65pk, 48kw - CHYC, DFNB
	TIGUAN
	TIGUAN (AD1, AX1) \| 01.2016-03.2022 1.4 TSI - 1395ccm, 125pk, 92kw - CZCA, CZDB
	TIGUAN (AD1, AX1) \| 01.2016-03.2022 1.4 TSI - 1395ccm, 150pk, 110kw - CZDA, CZEA, DJVA
	TIGUAN (AD1, AX1) \| 01.2016-03.2022 1.4 TSI 4motion - 1395ccm, 150pk, 110kw - CZDA, CZEA
	TRANSPORTER /
	TRANSPORTER / CARAVELLE Mk VI Bus (SGB, SGJ, SHB, SHJ) \| 04.2015-08.2024 2.0 TSI - 1984ccm, 150pk, 110kw - CJKB
	TRANSPORTER Mk
	TRANSPORTER Mk VI Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, \| 04.2015-08.2024 2.0 TSI - 1984ccm, 150pk, 110kw - CJKB
	TRANSPORTER Mk VI Van (SGA, SGH, SHA, SHH) \| 04.2015-08.2024 2.0 TSI - 1984ccm, 150pk, 110kw - CJKB
	UP!
	UP! (121, 122, BL1, BL2, BL3, 123) \| 08.2011-11.2023 1.0 - 999ccm, 60pk, 44kw - CHYA, DAFA, CHYE
	UP! (121, 122, BL1, BL2, BL3, 123) \| 08.2011-11.2023 1.0 - 999ccm, 75pk, 55kw - CHYB
	UP! (121, 122, BL1, BL2, BL3, 123) \| 08.2011-11.2023 1.0 EcoFuel - 999ccm, 68pk, 50kw - CPGA
	UP! (121, 122, BL1, BL2, BL3, 123) \| 08.2011-11.2023 1.0 GTI - 999ccm, 115pk, 85kw - DKRA
	UP! (121, 122, BL1, BL2, BL3, 123) \| 08.2011-11.2023 1.0 TSI - 999ccm, 90pk, 66kw - CHZA, DKLC

Original part numbers

02M 911 021 H	VW
02M 911 021 HX	VW
02M 911 024 R	VW
02M 911 024 RX	VW
