Brake Pad Set, disc brake 23434.185.1 Zimmermann

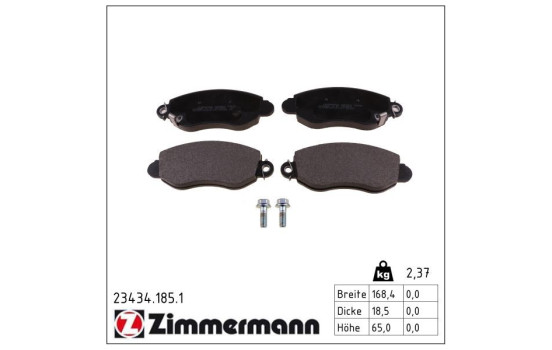

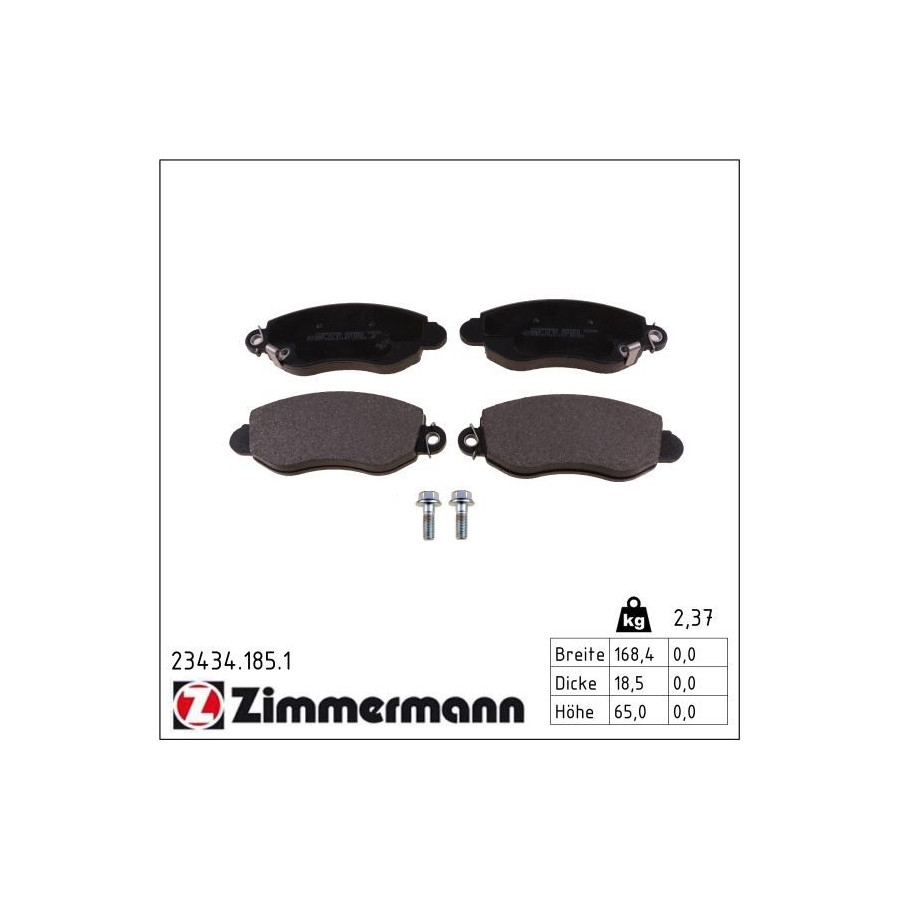

Brake Pad Set, disc brake 23434.185.1 Zimmermann Brake Pad Set, disc brake 23434.185.1 Zimmermann, Image 2

Product number: 0845191

Manufacturer number: 23434.185.1

EAN: 4250238738282

£ 34.94

Incl. VAT
View product specifications
In stock
Delivery 15-01-2025

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Zimmermann brake pads are specially optimized for your car. This gives you a brake pad set that runs smoothly, provides good braking power, but lasts a long time. The brake pads from Zimmermann are similar to the original brake pads of your car or exceed the specifications.

    Complete set:

    • 4 brake pads, everything you need for the left and right wheel.
    • With anti-corrosion layer

    Key benefits:

    • German quality
    • Perfect fit
    • Long lifespan
    braking SystemBendix-Bosch
    Wear Warning ContactWith acoustic wear warning
    ContentSet (4 brake pads per axle)
    Supplementary Article/Info 2With screws
    Supplementary Article/Supplementary InfoPhoto corresponds to the scope of delivery
    Inspection TagECE R90 APPROVED
    Warranty2 years
    Height [mm]65
    Width [mm]168
    Thickness [mm]18
    Number of wear indicators [per axle]2

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 37294
    £ 26.53
    ABE C1G041ABE
    ASHIKA 50-00-0323
    ATE 13.0460-3993.2
    £ 44.23
    BELACO BPD1227
    BLUE PRINT ADF124214
    £ 25.47
    BREMBO P 24 052
    £ 32.86
    BSG BSG 30-200-003
    Brake ENGINEERING PA1262
    CASALS BKM5167
    CHAMPION 573015CH
    CIFAM 822-320-0
    COMLINE CBP31108
    COMLINE ADB31108
    DENCKERMANN B110203
    DON PCP1665
    Dr!ve+ DP1010.10.0834
    EUROBRAKE 5502222559
    FAST FT29548
    FEBI BILSTEIN 16425
    £ 25.47
    FERODO FVR1381
    £ 36.81
    FREMAX FBP-1203
    FTE 9010416
    FTE BL1840A4
    £ 31.29
    GALFER B1.G102-0597.2
    GIRLING 6120063
    GIRLING 6114244
    HELLA 8DB 355 019-361
    HELLA PAGID 8DB 355 019-361
    £ 37.25
    JAPANPARTS PA-0323AF
    £ 22.33
    JAPKO 500323
    JURATEK JCP5167
    JURID 573015D
    JURID 573015J
    KAMOKA JQ1012762
    KAWE 0772 02
    KLAXCAR FRANCE 24817z
    Manufacturer Manufacturer number Price
    KRAFT AUTOMOTIVE 6002110
    MAGNETI MARELLI 363916060556
    MAGNETI MARELLI 363700424052
    MASTER-SPORT 13046039932N-SET-MS
    MASTER-SPORT 13046039932N-SET-MSP
    MAXGEAR 19-0672
    £ 27.08
    METELLI 22-0320-0
    METZGER 1170365
    MEYLE 025 235 7718/PD
    £ 32.48
    MEYLE 025 235 7718/W
    £ 27.46
    MINTEX MDB2061
    MOTAQUIP LVXL644
    NATIONAL NP2036
    NATIONAL B020073
    NK 222559
    OPTIMAL 12019
    OPTIMAL BP-12019
    QUARO QP4634
    QUARO QP4634C
    RAICAM RA.0756.0
    REMSA 0772.02
    ROADHOUSE 2772.02
    SKF VKBP 80798 A
    SKF VKBP 80489 A
    SWAG 50 91 6425
    TEXTAR 2357701
    £ 41.66
    TOPRAN 302 053
    TRUSTING 329.0
    TRW GDB2006
    £ 34.25
    TRW GDB1424
    £ 36.58
    VALEO 872577
    £ 27.40
    VALEO 301432
    VALEO 598432
    WAGNER WBP23434A
    WOKING P6723.02
    ZIMMERMANN 23434.185.1 (this product)
    fri.tech. 329.0

  • Applicability

    FORD
    TRANSIT Bus
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.3 16V RWD (F_B_, F_C_, F_A_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI (F_B_, F_C_, F_A_) - 2402ccm, 90pk, 66kw - D2FA, D2FB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI RWD (F_B_, F_C_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 DI RWD (F_B_, F_C_, F_A_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 01.2000-05.2006 2.4 TDE (F_C_, F_B_, F_A_) - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Platform/Chassis
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.3 16V (F_A_, F_B_, F_C_, F_D_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 90pk, 66kw - D2FA, D2FB, D2FE
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 DI (F_A_, F_B_, F_C_, F_D_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA
    TRANSIT Van
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.3 - 2295ccm, 143pk, 105kw - E5FC
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.3 16V RWD (FAA_, FAB_, FAC_) - 2295ccm, 146pk, 107kw - E5FA, E5FC
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 90pk, 66kw - D2FA, D2FB
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 120pk, 88kw - D4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) - 2402ccm, 75pk, 55kw - F4FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDCi - 2402ccm, 137pk, 101kw - H9FA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 125pk, 92kw - DOFA
    TRANSIT Van (FA_ _) | 01.2000-05.2006 2.4 TDE - 2402ccm, 115pk, 85kw - FXFA

  • Original part numbers

    1 318 139 FORD
    4 077 636 FORD
    1 135 167 FORD
    1 415 166 FORD
    YC152K021AC FORD
    YC1J2K021AA FORD
    YC1J2K021AB FORD
    YC1J2K021AC FORD
    1 465 167 FORD
    1 465 166 FORD

  • Manufacturer

    Zimmermann
    The German Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years.  The brand is known for its high-quality use of materials in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust)
    - Standard brake discs
    - Sport brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
