Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 610.3703.52 Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 610.3703.52 Zimmermann Brake Disc SPORT BRAKE DISC COAT Z 610.3703.52 Zimmermann, Image 2

Product number: 0847064

Manufacturer number: 610.3703.52

EAN: 4250238754848

£ 61.65

Incl. VAT
View product specifications
In stock
Delivery 23-07-2025

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

    These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

    Grooved design:

    • Perforated for better removal of gases
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less? Brake fading?
    • Better braking performance
    • Perfect fit

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

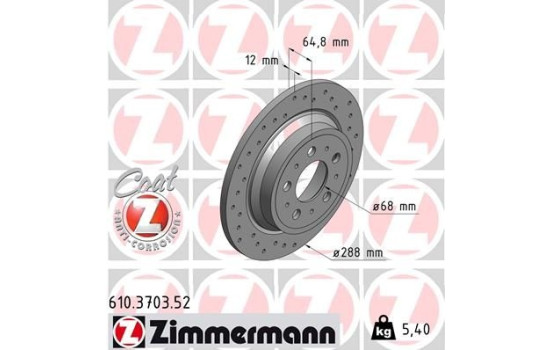

    Outer diameter [mm]288
    Fitting PositionRear Axle
    Rim Hole Number5
    Brake Disc TypeSolid
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]108
    Brake Disc TypePerforated
    Centering Diameter [mm]68
    Hole Arrangement / Number10/5
    Inspection TagOhne ABE
    Warranty2 years
    Height [mm]65
    Brake disc thickness (mm)12
    Minimum thickness (mm)10
    Weight [kg]5,4

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 17013
    £ 41.64
    AP X 19080
    AP 19080 V
    AP 19080
    AP 19080 X
    ASHIKA 61-00-0321C
    ASHUKI P331-027
    BELACO BDS1643
    BLUE PRINT ADF124333
    £ 27.24
    BORG & BECK BBD4216
    BOSCH 0 986 478 495
    £ 30.03
    BRECO BS 7584
    BRECO BV 7584
    BREMBO 08.7765.75
    £ 45.42
    BREMBO 08.7765.1X
    £ 68.72
    BREMBO 08.7765.10
    BREMBO 08.7765.11
    £ 33.30
    BREMSI CD7079S
    CHAMPION 562174CH
    DENCKERMANN B130280
    DON PCD18062
    Dr!ve+ DP1010.11.1680
    EUROBRAKE 5815314843
    EUROBRAKE 5815204843
    FEBI BILSTEIN 18051
    £ 32.50
    FERODO DDF1079
    FERODO DDF1079C
    £ 48.01
    FREMAX BD-1674
    FTE 9072189
    GIRLING 6040664
    HELLA 8DD 355 107-091
    HELLA PAGID 8DD 355 107-091
    JAPANPARTS DP-0321C
    JAPANPARTS DP0321JM
    JAPKO 610321C
    JURATEK VOL128
    JURID 562174JC
    KEY PARTS KBD4216
    Manufacturer Manufacturer number Price
    MAGNETI MARELLI 360406051905
    MAGNETI MARELLI 361302040692
    MAGNETI MARELLI 360406051902
    MAGNETI MARELLI 360406051901
    MASTER-SPORT 24011201511-PCS-MS
    MASTER-SPORT 24011201511-PCS-MSP
    MASTER-SPORT 24011201511-SET-MSP
    MASTER-SPORT 24011201511-SET-MS
    MAXGEAR 19-1022SPORT
    MAXGEAR 19-1022MAX
    MAXGEAR 19-1022
    MAXTECH 883420
    METZGER 6110224
    MEYLE 515 523 0014
    £ 36.94
    MEYLE 515 523 0014/PD
    £ 30.50
    MINTEX MDC1434C
    NK 204843
    NK 314843
    OPTIMAL BS-6340
    OPTIMAL BS-6340C
    Omnicraft 2143302
    PAGID 50284NC
    QUARO QD5296
    QUARO QD5296HC
    ROTINGER RT 1500-GL T5
    ROTINGER RT 1500-GL T6
    ROTINGER RT 1500-GL T9
    ROTINGER RT 1500-GL
    ROTINGER RT 1500-GL T3
    ROTINGER RT 1500
    STELLOX 6020-4843-SX
    STELLOX 6020-4843K-SX
    SWAG 55 91 8051
    TEXTAR 92100703
    £ 47.19
    TRW DF4066
    £ 37.47
    VALEO 186841
    ZIMMERMANN 610.3703.20
    £ 30.95
    ZIMMERMANN 610.3703.52 (this product)

  • Applicability

    VOLVO
    S60 I
    S60 I (384) | 07.2000-04.2010 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5
    S60 I (384) | 07.2000-04.2010 2.4 - 2435ccm, 170pk, 125kw - B 5244 S
    S60 I (384) | 07.2000-04.2010 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2
    S60 I (384) | 07.2000-04.2010 2.4 Bifuel (CNG) - 2435ccm, 140pk, 103kw - B 5244 SG, B 5244 SG2
    S60 I (384) | 07.2000-04.2010 2.4 Bifuel (LPG) - 2435ccm, 140pk, 103kw - B 5244 SG2
    S60 I (384) | 07.2000-04.2010 2.4 D - 2401ccm, 130pk, 96kw - D 5244 T2
    S60 I (384) | 07.2000-04.2010 2.4 D - 2400ccm, 126pk, 93kw - D 5244 T7
    S60 I (384) | 07.2000-04.2010 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3
    S60 I (384) | 07.2000-04.2010 2.4 T AWD - 2435ccm, 200pk, 147kw - B 5244 T3
    S60 I (384) | 07.2000-04.2010 2.5 T - 2521ccm, 210pk, 154kw - B 5254 T2
    S60 I (384) | 07.2000-04.2010 2.5 T AWD - 2521ccm, 210pk, 154kw - B 5254 T2
    S60 I (384) | 07.2000-04.2010 D5 - 2400ccm, 163pk, 120kw - D 5244 T, D 5244 T5
    S60 I (384) | 07.2000-04.2010 D5 - 2401ccm, 185pk, 136kw - D 5244 T4
    S60 I (384) | 07.2000-04.2010 R 2,5 T AWD - 2521ccm, 300pk, 221kw - B 5254 T4
    S60 I (384) | 07.2000-04.2010 T5 - 2319ccm, 250pk, 184kw - B 5234 T3
    S60 I (384) | 07.2000-04.2010 T5 - 2319ccm, 265pk, 195kw - B 5234 T7
    S60 I (384) | 07.2000-04.2010 T5 - 2401ccm, 260pk, 191kw - B 5244 T5
    S80 I
    S80 I (184) | 05.1998-02.2008 2.0 - 1984ccm, 163pk, 120kw - B 5204 T4
    S80 I (184) | 05.1998-02.2008 2.0 T - 1984ccm, 226pk, 166kw - B 5204 T3
    S80 I (184) | 05.1998-02.2008 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5
    S80 I (184) | 05.1998-02.2008 2.4 - 2435ccm, 170pk, 125kw - B 5244 S
    S80 I (184) | 05.1998-02.2008 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2
    S80 I (184) | 05.1998-02.2008 2.4 Bifuel (CNG) - 2435ccm, 140pk, 103kw - B 5244 SG2
    S80 I (184) | 05.1998-02.2008 2.4 Bifuel (LPG) - 2435ccm, 140pk, 103kw - B 5244 SG
    S80 I (184) | 05.1998-02.2008 2.4 D - 2401ccm, 131pk, 96kw - D 5244 T2
    S80 I (184) | 05.1998-02.2008 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3
    S80 I (184) | 05.1998-02.2008 2.5 T - 2521ccm, 210pk, 154kw - B 5254 T2
    S80 I (184) | 05.1998-02.2008 2.5 T AWD - 2521ccm, 210pk, 154kw - B 5254 T2
    S80 I (184) | 05.1998-02.2008 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T
    S80 I (184) | 05.1998-02.2008 2.9 - 2922ccm, 200pk, 147kw - B 6294 S
    S80 I (184) | 05.1998-02.2008 2.9 - 2922ccm, 204pk, 150kw - B 6304 S3
    S80 I (184) | 05.1998-02.2008 3.0 - 2922ccm, 196pk, 144kw - B 6294 S2
    S80 I (184) | 05.1998-02.2008 D5 - 2401ccm, 163pk, 120kw - D 5244 T
    S80 I (184) | 05.1998-02.2008 T5 AWD - 2435ccm, 200pk, 147kw - B 5244 T3
    S80 I (184) | 05.1998-02.2008 T6 - 2783ccm, 272pk, 200kw - B 6284 T
    S80 I (184) | 05.1998-02.2008 T6 - 2922ccm, 272pk, 200kw - B 6294 T
    V70 Mk
    V70 Mk II (285) | 11.1999-12.2008 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5
    V70 Mk II (285) | 11.1999-12.2008 2.3 - 2319ccm, 265pk, 195kw - B 5234 T7
    V70 Mk II (285) | 11.1999-12.2008 2.4 - 2435ccm, 170pk, 125kw - B 5244 S
    V70 Mk II (285) | 11.1999-12.2008 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2
    V70 Mk II (285) | 11.1999-12.2008 2.4 Bifuel (CNG) - 2435ccm, 140pk, 103kw - B 5244 SG, B 5244 SG2
    V70 Mk II (285) | 11.1999-12.2008 2.4 Bifuel (LPG) - 2435ccm, 140pk, 103kw - B 5244 SG2
    V70 Mk II (285) | 11.1999-12.2008 2.4 D - 2401ccm, 131pk, 96kw - D 5244 T2
    V70 Mk II (285) | 11.1999-12.2008 2.4 D - 2400ccm, 126pk, 93kw - D 5244 T7
    V70 Mk II (285) | 11.1999-12.2008 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3
    V70 Mk II (285) | 11.1999-12.2008 2.5 AWD - 2521ccm, 211pk, 155kw - B 5254 T2
    V70 Mk II (285) | 11.1999-12.2008 2.5 T - 2521ccm, 209pk, 154kw - B 5254 T2
    V70 Mk II (285) | 11.1999-12.2008 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T
    V70 Mk II (285) | 11.1999-12.2008 D5 - 2401ccm, 163pk, 120kw - D 5244 T, D 5244 T2, D 5244 T5
    V70 Mk II (285) | 11.1999-12.2008 D5 - 2401ccm, 185pk, 136kw - D 5244 T4
    V70 Mk II (285) | 11.1999-12.2008 D5 AWD - 2401ccm, 185pk, 136kw - D 5244 T4
    V70 Mk II (285) | 11.1999-12.2008 T5 - 2319ccm, 250pk, 184kw - B 5234 T3
    V70 Mk II (285) | 11.1999-12.2008 T5 - 2401ccm, 260pk, 191kw - B 5244 T5
    XC70 I
    XC70 I Cross Country (295) | 10.1997-08.2007 2.4 T XC AWD - 2435ccm, 200pk, 147kw - B 5244 T3
    XC70 I Cross Country (295) | 10.1997-08.2007 2.5 T XC AWD - 2521ccm, 209pk, 154kw - B 5254 T2
    XC70 I Cross Country (295) | 10.1997-08.2007 D5 AWD - 2401ccm, 185pk, 136kw - D 5244 T4
    XC70 I Cross Country (295) | 10.1997-08.2007 D5 XC AWD - 2401ccm, 163pk, 120kw - D 5244 T

  • Original part numbers

    31471821 VOLVO
    94341674 VOLVO
    9434167 VOLVO
    94341670 VOLVO

  • Manufacturer

    Zimmermann
    The German Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years.  The brand is known for its high-quality use of materials in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust)
    - Standard brake discs
    - Sport brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
