Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 600.3212.52 Zimmermann

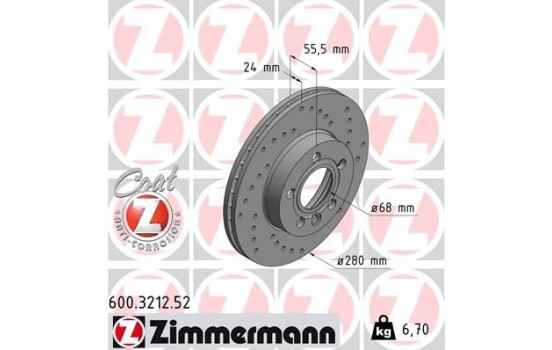

Brake Disc SPORT BRAKE DISC COAT Z 600.3212.52 Zimmermann Brake Disc SPORT BRAKE DISC COAT Z 600.3212.52 Zimmermann, Image 2

Product number: 0847019

Manufacturer number: 600.3212.52

EAN: 4250238750475

£ 78.85

Incl. VAT
View product specifications
In stock
Delivery 15-01-2025

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

    These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

    Grooved design:

    • Perforated for better removal of gases
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less? Brake fading?
    • Better braking performance
    • Perfect fit

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

    Outer diameter [mm]280
    Fitting PositionFront Axle
    Rim Hole Number5
    Brake Disc TypePerforated
    Internal ventilation
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]112
    Centering Diameter [mm]68
    Hole Arrangement / Number6/5
    Inspection TagKBA 60872
    Warranty2 years
    Height [mm]56
    Brake disc thickness (mm)24
    Minimum thickness (mm)20
    Weight [kg]6,7

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 16657
    £ 45.74
    AP 24689 V
    AP 24689 E
    ASHUKI P330-028
    BELACO BDS1309HC
    BLUE PRINT ADV184361
    £ 27.52
    BOSCH 0 986 478 846
    £ 49.34
    BOSCH 0 986 479 B50
    BRECO BV 8278
    BRECO BS 8278
    BREMBO 09.7131.11
    £ 38.60
    BREMBO 09.7131.14
    BREMSI CD7010V
    CHAMPION 562080CH
    DON PCD18972
    Dr!ve+ DP1010.11.0762
    EUROBRAKE 5815204768
    EUROBRAKE 5815314768
    FEBI BILSTEIN 14040
    £ 26.86
    FERODO DDF1010
    £ 51.11
    FERODO DDF1010C
    £ 72.95
    GIRLING 6028091
    HELLA 8DD 355 105-591
    HELLA 8DD 355 127-331
    HELLA PAGID 8DD 355 105-591
    HELLA PAGID 8DD 355 127-331
    JURID 562080JC
    KRAFT AUTOMOTIVE 6040310
    MAGNETI MARELLI 361302040324
    Manufacturer Manufacturer number Price
    MASTER-SPORT 24012401281-SET-MS
    MASTER-SPORT 24012401281-SET-MSP
    MASTER-SPORT 24012401281-PCS-MSP
    MASTER-SPORT 24012401281-PCS-MS
    MAXGEAR 19-0801MAX
    £ 35.79
    MAXGEAR 19-0801
    £ 35.58
    MAXTECH 871069
    METZGER 6110093
    MEYLE 115 521 0035
    £ 35.33
    MEYLE 115 521 0035/PD
    £ 33.33
    MINTEX MDC1047
    NK 314768
    NK 204768
    Omnicraft 2134100
    QUARO QD9259
    ROTINGER RT 2690-GL T5
    ROTINGER RT 2690-GL
    ROTINGER RT 2690
    ROTINGER RT 2690-GL T9
    ROTINGER RT 2690-GL T3
    ROTINGER RT 2690-GL T6
    SWAG 30 91 4040
    TEXTAR 92083805
    £ 50.31
    TOPRAN 107 691
    TRW DF2809
    £ 37.11
    VALEO 186682
    ZIMMERMANN 600.3212.20
    £ 37.51
    ZIMMERMANN 600.3212.52 (this product)

  • Applicability

    VOLKSWAGEN
    TRANSPORTER /
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 1.9 D - 1896ccm, 60pk, 44kw - 1X
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 1.9 TD - 1896ccm, 68pk, 50kw - ABL
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.0 - 1968ccm, 84pk, 62kw - AAC
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.4 D - 2370ccm, 78pk, 57kw - AAB
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.4 D - 2370ccm, 75pk, 55kw - AJA
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.4 D Syncro - 2370ccm, 78pk, 57kw - AAB
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 - 2461ccm, 110pk, 81kw - AAF, ACU, AEN, AEU
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 - 2461ccm, 115pk, 85kw - AET, APL, AVT
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 Syncro - 2461ccm, 110pk, 81kw - AAF, ACU, AEU
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 Syncro - 2461ccm, 115pk, 85kw - AET, APL, AVT
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI - 2461ccm, 102pk, 75kw - ACV, AUF, AYC
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI - 2461ccm, 151pk, 111kw - AHY, AXG
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI - 2461ccm, 88pk, 65kw - AJT, AYY
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI Syncro - 2461ccm, 102pk, 75kw - ACV, AXL
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.8 VR 6 - 2792ccm, 140pk, 103kw - AES
    TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.8 VR6 - 2792ccm, 204pk, 150kw - AMV, AXK
    TRANSPORTER Mk
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 1.9 D - 1896ccm, 60pk, 44kw - 1X
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 1.9 TD - 1896ccm, 68pk, 50kw - ABL
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.0 - 1968ccm, 84pk, 62kw - AAC
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.4 D - 2370ccm, 78pk, 57kw - AAB
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.4 D - 2370ccm, 75pk, 55kw - AJA
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.4 D Syncro - 2370ccm, 78pk, 57kw - AAB
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 - 2461ccm, 110pk, 81kw - AAF, ACU, AEN, AEU
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 - 2461ccm, 115pk, 85kw - AET, APL, AVT
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 Syncro - 2461ccm, 110pk, 81kw - AAF, ACU, AEU
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 Syncro - 2461ccm, 115pk, 85kw - AET, APL, AVT
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 TDI - 2461ccm, 102pk, 75kw - ACV, AUF, AYC
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 TDI - 2461ccm, 88pk, 65kw - AJT, AYY
    TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 TDI Syncro - 2461ccm, 102pk, 75kw - ACV, AXL
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 1.9 D - 1896ccm, 60pk, 44kw - 1X
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 1.9 D - 1896ccm, 61pk, 45kw - 1X
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 1.9 TD - 1896ccm, 68pk, 50kw - ABL
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.0 - 1968ccm, 84pk, 62kw - AAC
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.4 D - 2370ccm, 78pk, 57kw - AAB
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.4 D - 2370ccm, 75pk, 55kw - AJA
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.4 D Syncro - 2370ccm, 78pk, 57kw - AAB
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 - 2461ccm, 110pk, 81kw - AAF, ACU, AEN, AEU
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 - 2461ccm, 115pk, 85kw - AET, APL, AVT
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 Syncro - 2461ccm, 110pk, 81kw - AAF, ACU, AEU
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 Syncro - 2461ccm, 115pk, 85kw - AET, APL, AVT
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 TDI - 2461ccm, 102pk, 75kw - ACV, AUF, AYC
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 TDI - 2461ccm, 151pk, 111kw - AHY, AXG
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 TDI - 2461ccm, 88pk, 65kw - AJT, AYY
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 TDI Syncro - 2461ccm, 102pk, 75kw - ACV, AXL
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.8 VR6 - 2792ccm, 140pk, 103kw - AES
    TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.8 VR6 - 2792ccm, 204pk, 150kw - AMV, AXK

  • Original part numbers

    701 615 301 F VAG
    7D0 615 301 A VAG
    7D0 615 301 C VAG

  • Manufacturer

    Zimmermann
    The German Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years.  The brand is known for its high-quality use of materials in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust)
    - Standard brake discs
    - Sport brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
