Brake Disc SPORT BRAKE DISC COAT Z 230.2370.52 Zimmermann

Video

Product number: 0846683

Manufacturer number: 230.2370.52

EAN: 4250238749998

£ 71.⁷⁷

Incl. VAT

View product specifications

Immediately available

Delivery Day after tomorrow

Free Shipping

Quantity:

Secure payment

Free 30 days exchanges
Any part, any car
Fast shipping: 2 days
Expert support

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or select your vehicle.

Specifications

Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

Grooved design:

Perforated for better removal of gases
Rust-resistant coating

Key benefits:

German quality
Less? Brake fading?
Better braking performance
Perfect fit

Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

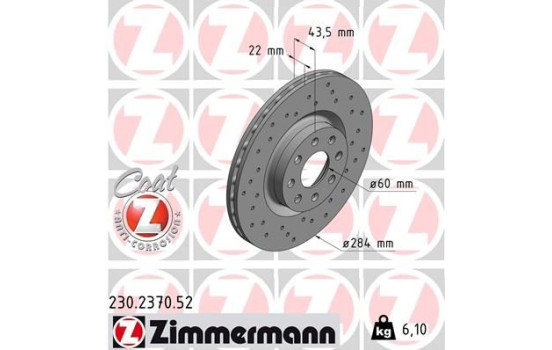

Outer diameter [mm]	284
Rim Hole Number	4
Brake Disc Type	Perforated
Brake Disc Type	Internal ventilation
Surface	Coated
Brake pads	Exclusive
Bolt Hole Circle Ø [mm]	100
Centering Diameter [mm]	60
Hole Arrangement / Number	8/4
Inspection Tag	KBA 60872
Warranty	2 years
Height [mm]	44
Brake disc thickness (mm)	22
Minimum thickness (mm)	20
Weight [kg]	6,10

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
A.B.S.	17711	£ 28.85
ASAM	102109
ASHIKA	60-00-0226C
ASHUKI	P330-086
ATE	24.0122-0241.1	£ 63.61
BELACO	BDS1132
BLUE PRINT	ADL144308
BLUE PRINT	ADZ94333	£ 37.58
BORG & BECK	BBD4544
BOSCH	0 986 479 224	£ 48.21
BOSCH	0 986 479 B90
BREMSI	CD7298V
BSG	BSG 65-210-023
CHAMPION	562297CH
DENCKERMANN	B130334
DON	PCD12252
Dr!ve+	DP1010.11.0485
EUROBRAKE	5815202350
EUROBRAKE	5815312350
FEBI BILSTEIN	28178	£ 32.37
FERODO	DDF1298C	£ 81.76
FERODO	DDF1298	£ 50.00
FI.BA	FBD262
GALFER	B1.G222-0241.1
GIRLING	6047371
HELLA	8DD 355 112-601
HELLA PAGID	8DD 355 112-601
JAPANPARTS	DI0226JM
JAPANPARTS	DI-0226C
JAPKO	600226C
JURID	562297JC
KEY PARTS	KBD4544
LORO	231-03-153
MAGNETI MARELLI	361302040698
MAGNETI MARELLI	361302040256

Manufacturer	Manufacturer number	Price
MASTER-SPORT	24012202411-SET-MS
MASTER-SPORT	24012202411PR-SET-MS
MASTER-SPORT	24012202411-PCS-MS
MASTER-SPORT	24012202411-PCS-MSP
MASTER-SPORT	24012202411PR-PCS-MSP
MASTER-SPORT	24012202411PR-SET-MSP
MASTER-SPORT	24012202411PR-PCS-MS
MASTER-SPORT	24012202411-SET-MSP
MAXGEAR	19-1329SPORT
MAXGEAR	19-1329	£ 31.49
MAXTECH	877233
METZGER	6110365
MEYLE	615 521 6045	£ 40.59
MINTEX	MDC1736
NK	202350
NK	312350
OPTIMAL	BS-7666
OPTIMAL	BS-7666C
QUARO	QD4513HC
QUARO	QD4513
RAICAM	RD00212
ROTINGER	RT 20426-GL T3
ROTINGER	RT 20426-GL
ROTINGER	RT 20426-GL T5
ROTINGER	RT 20426-GL T6
ROTINGER	RT 20426
ROTINGER	RT 20426-GL T9
SWAG	70 92 8178
TEXTAR	92145803	£ 50.74
TOPRAN	207 628
TRW	DF4737	£ 36.52
VALEO	197045
ZIMMERMANN	230.2370.20	£ 42.67
ZIMMERMANN	230.2370.52	(this product)

Applicability

FIAT

	GRANDE PUNTO
	GRANDE PUNTO (199_) \| 06.2005-12.2015 1.3 D Multijet (199.AXD11, 199.AXD1A, 199.AXD1B,... - 1248ccm, 90pk, 66kw - 199 A3.000
	GRANDE PUNTO (199_) \| 06.2005-12.2015 1.4 T-Jet (199AXM1A, 199BXM1A, 199BXN1A) - 1368ccm, 120pk, 88kw - 198 A4.000
	GRANDE PUNTO (199_) \| 06.2005-12.2015 1.6 D Multijet - 1598ccm, 120pk, 88kw - 955 A3.000
	GRANDE PUNTO (199_) \| 06.2005-12.2015 1.9 D Multijet - 1910ccm, 130pk, 96kw - 199 A5.000
	GRANDE PUNTO (199_) \| 06.2005-12.2015 1.9 D Multijet - 1910ccm, 120pk, 88kw - 939 A1.000
	GRANDE PUNTO (199_) \| 06.2005-12.2015 1.9 D Multijet - 1910ccm, 116pk, 85kw - 939 A7.000
	PUNTO
	PUNTO (199_) \| 03.2012-??? 1.3 D Multijet - 1248ccm, 95pk, 70kw - 199 B1.000, 330 A1.000
	PUNTO (199_) \| 03.2012-??? 1.4 Turbo Multi Air - 1368ccm, 135pk, 99kw - 955 A2.000
	PUNTO EVO
	PUNTO EVO (199_) \| 07.2008-02.2012 1.3 D Multijet - 1248ccm, 95pk, 70kw - 199 B1.000
	PUNTO EVO (199_) \| 07.2008-02.2012 1.3 D Multijet - 1248ccm, 84pk, 62kw - 199 B4.000, 223 A9.000
	PUNTO EVO (199_) \| 07.2008-02.2012 1.3 D Multijet (199AXD1B, 199AXD1A, 199BXD1B, 199BXD1A,... - 1248ccm, 90pk, 66kw - 199 A3.000
	PUNTO EVO (199_) \| 07.2008-02.2012 1.4 16V - 1368ccm, 105pk, 77kw - 955 A6.000
	PUNTO EVO (199_) \| 07.2008-02.2012 1.4 16V (199AXW1A) - 1368ccm, 135pk, 99kw - 955 A2.000
	PUNTO EVO (199_) \| 07.2008-02.2012 1.6 D Multijet - 1598ccm, 120pk, 88kw - 955 A3.000

OPEL

	ADAM
	ADAM (M13) \| 10.2012-02.2019 1.0 - 999ccm, 90pk, 66kw - B 10 XFL, D 10 XFL
	ADAM (M13) \| 10.2012-02.2019 1.0 - 999ccm, 115pk, 85kw - B 10 XFT, D 10 XFT
	ADAM (M13) \| 10.2012-02.2019 1.2 - 1229ccm, 69pk, 51kw - A 12 XEL, B 12 XEL, D 12 XEL
	ADAM (M13) \| 10.2012-02.2019 1.4 - 1398ccm, 87pk, 64kw - A 14 XEL, B 14 XEL, D 14 XEL
	ADAM (M13) \| 10.2012-02.2019 1.4 - 1398ccm, 101pk, 74kw - A 14 XER, B 14 XER, D 14 XER
	ADAM (M13) \| 10.2012-02.2019 1.4 LPG - 1398ccm, 87pk, 64kw - A 14 XEL, B 14 XEL, D 14 XEL
	ADAM (M13) \| 10.2012-02.2019 1.4 S - 1364ccm, 150pk, 110kw - B 14 NEH, D 14 NEH
	CORSA D
	CORSA D (S07) \| 07.2006-08.2014 1.3 CDTI (L08, L68) - 1248ccm, 75pk, 55kw - A 13 DTC, Z 13 DTJ
	CORSA D (S07) \| 07.2006-08.2014 1.3 CDTI (L08, L68) - 1248ccm, 95pk, 70kw - A 13 DTE, A 13 DTR, Z 13 DTE
	CORSA D (S07) \| 07.2006-08.2014 1.3 CDTI (L08, L68) - 1248ccm, 90pk, 66kw - Z 13 DTH
	CORSA D Hatchback Van (S07) \| 07.2006-08.2014 1.3 CDTI (L08) - 1248ccm, 95pk, 70kw - A 13 DTE, A 13 DTR, Z 13 DTE
	CORSA D Hatchback Van (S07) \| 07.2006-08.2014 1.3 CDTI (L08) - 1248ccm, 90pk, 66kw - Z 13 DTH
	CORSA E
	CORSA E (X15) \| 09.2014-06.2019 1.0 (08, 68) - 999ccm, 90pk, 66kw - B 10 XFL, F 10 XFL, D 10 XFL
	CORSA E (X15) \| 09.2014-06.2019 1.0 (08, 68) - 999ccm, 115pk, 85kw - B 10 XFT, D 10 XFT
	CORSA E (X15) \| 09.2014-06.2019 1.2 (08, 68) - 1229ccm, 69pk, 51kw - B 12 XEL, D 12 XEL
	CORSA E (X15) \| 09.2014-06.2019 1.3 CDTI (08, 68) - 1248ccm, 75pk, 55kw - B 13 DTC, B 13 DTN
	CORSA E (X15) \| 09.2014-06.2019 1.3 CDTI (08, 68) - 1248ccm, 95pk, 70kw - B 13 DTE, B 13 DTR
	CORSA E (X15) \| 09.2014-06.2019 1.4 (08, 68) - 1398ccm, 75pk, 55kw - B 14 XEJ, D 14 XEJ
	CORSA E (X15) \| 09.2014-06.2019 1.4 (08, 68) - 1398ccm, 90pk, 66kw - B 14 XEL, D 14 XEL
	CORSA E (X15) \| 09.2014-06.2019 1.4 LPG (08, 68) - 1398ccm, 90pk, 66kw - B 14 XEL
	CORSA E (X15) \| 09.2014-06.2019 1.4 Turbo (08, 68) - 1364ccm, 150pk, 110kw - B 14 NEH, D 14 NEH
	CORSA E (X15) \| 09.2014-06.2019 1.4 Turbo (08, 68) - 1364ccm, 101pk, 74kw - B 14 NEJ, D 14 NEJ
	CORSA E (X15) \| 09.2014-06.2019 1.6 Turbo (08, 68) - 1598ccm, 207pk, 152kw - B 16 LES, B 16 LER
	CORSA E Hatchback Van (X15) \| 09.2014-??? 1.2 (08) - 1229ccm, 69pk, 51kw - B 12 XEL
	CORSA E Hatchback Van (X15) \| 09.2014-??? 1.3 CDTI (08) - 1248ccm, 75pk, 55kw - B 13 DTC, B 13 DTN
	CORSA E Hatchback Van (X15) \| 09.2014-??? 1.3 CDTI (08) - 1248ccm, 95pk, 70kw - B 13 DTE, B 13 DTR
	CORSA E Hatchback Van (X15) \| 09.2014-??? 1.4 (08) - 1398ccm, 75pk, 55kw - B 14 XEJ
	CORSA E Hatchback Van (X15) \| 09.2014-??? 1.4 (08) - 1398ccm, 90pk, 66kw - B 14 XEL

VAUXHALL

	CORSA Mk
	CORSA Mk III (D) (S07) \| 07.2006-08.2014 1.3 CDTI (L08) - 1248ccm, 75pk, 55kw - A 13 DTC, Z 13 DTJ
	CORSA Mk III (D) (S07) \| 07.2006-08.2014 1.3 CDTI (L08) - 1248ccm, 95pk, 70kw - A 13 DTE, A 13 DTR, Z 13 DTE
	CORSA Mk III (D) (S07) \| 07.2006-08.2014 1.3 CDTI (L08) - 1248ccm, 90pk, 66kw - Z 13 DTH
	CORSA Mk IV (E) (X15) \| 08.2014-??? 1.0 - 999ccm, 90pk, 66kw - B 10 XFL, F 10 XFL, D 10 XFL
	CORSA Mk IV (E) (X15) \| 08.2014-??? 1.0 - 999ccm, 116pk, 85kw - B 10 XFT, D 10 XFT
	CORSA Mk IV (E) (X15) \| 08.2014-??? 1.2 - 1229ccm, 69pk, 51kw - B 12 XEL
	CORSA Mk IV (E) (X15) \| 08.2014-??? 1.3 CDTi - 1248ccm, 75pk, 55kw - B 13 DTC, B 13 DTN
	CORSA Mk IV (E) (X15) \| 08.2014-??? 1.3 CDTi - 1248ccm, 95pk, 70kw - B 13 DTE, B 13 DTR
	CORSA Mk IV (E) (X15) \| 08.2014-??? 1.4 - 1364ccm, 150pk, 110kw - B 14 NEH
	CORSA Mk IV (E) (X15) \| 08.2014-??? 1.4 - 1364ccm, 101pk, 74kw - B 14 NEJ, D 14 NEJ
	CORSA Mk IV (E) (X15) \| 08.2014-??? 1.4 - 1398ccm, 75pk, 55kw - B 14 XEJ, D 14 XEJ
	CORSA Mk IV (E) (X15) \| 08.2014-??? 1.4 - 1398ccm, 90pk, 66kw - B 14 XEL, D 14 XEL
	CORSA Mk IV (E) (X15) \| 08.2014-??? 1.6 VXR - 1598ccm, 205pk, 151kw - B 16 LES
	CORSAVAN Mk
	CORSAVAN Mk IV (E) Hatchback Van (X15) \| 10.2014-??? 1.2 - 1229ccm, 69pk, 51kw - B 12 XEL
	CORSAVAN Mk IV (E) Hatchback Van (X15) \| 10.2014-??? 1.3 CDTi - 1248ccm, 75pk, 55kw - B 13 DTC, B 13 DTN
	CORSAVAN Mk IV (E) Hatchback Van (X15) \| 10.2014-??? 1.3 CDTi - 1248ccm, 95pk, 70kw - B 13 DTE, B 13 DTR

Original part numbers

55 700 922	FIAT
55 700 923	FIAT
5569 025	OPEL
93188918	OPEL

Manufacturer

The German Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality use of materials in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

- Brake pads (Standard and Low-Dust)
- Standard brake discs
- Sport brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
