Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 150.1285.52 Zimmermann

Product number: 0846652

Manufacturer number: 150.1285.52

EAN: 4250238752691

£ 55.11

Incl. VAT
View product specifications
In stock
Delivery 24-02-2025

Free Shipping

Secure payment

  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

  • Specifications

    Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

    These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

    Grooved design:

    • Perforated for better removal of gases
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less? Brake fading?
    • Better braking performance
    • Perfect fit

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

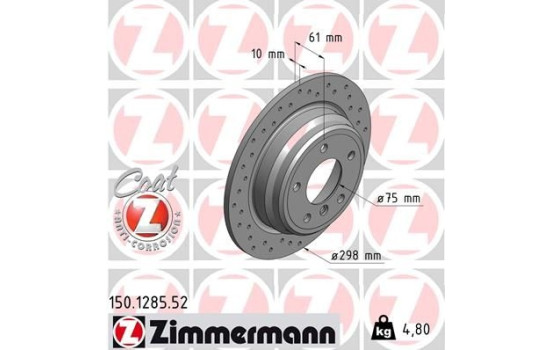

    Outer diameter [mm]298
    Fitting PositionRear Axle
    Rim Hole Number5
    Brake Disc TypePerforated
    Complete
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]120
    Centering Diameter [mm]75
    Hole Arrangement / Number6/5
    MachiningHigh-carbon
    Inspection TagECE R90 APPROVED
    Warranty2 years
    Height [mm]61
    Brake disc thickness (mm)10
    Minimum thickness (mm)8,4
    Weight [kg]4,82

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 16341
    £ 24.27
    AP 14642 V
    AP X 14642
    AP 14642
    ASHIKA 61-00-0119C
    ASHIKA 61-00-0119
    BELACO BDS1714
    BLUE PRINT ADB114391
    £ 25.66
    BORG & BECK BBD4068
    BOSCH 0 986 478 425
    £ 28.11
    BRECO BV 7530
    BRECO BS 7530
    BREMBO 08.6917.75
    BREMBO 08.6917.10
    BREMBO 08.6917.11
    £ 36.78
    BREMSI CD6835S
    BSG BSG 15-210-004
    CHAMPION 562062CH
    DENCKERMANN B130253
    DON PCD12382
    Dr!ve+ DP1010.11.0125
    EUROBRAKE 5815311537
    EUROBRAKE 5815201537
    FEBI BILSTEIN 12325
    £ 25.33
    FERODO DDF835C
    FERODO DDF835
    £ 42.08
    FTE BS4750
    FTE 9072151
    GIRLING 6027684
    HELLA 8DD 355 127-271
    HELLA PAGID 8DD 355 127-271
    £ 33.45
    JAPANPARTS DP-0119
    JAPANPARTS DP-0119C
    Manufacturer Manufacturer number Price
    JAPANPARTS DP0119JM
    JAPKO 610119C
    JAPKO 610119
    JURID 562062JC
    KRAFT AUTOMOTIVE 6052620
    MAGNETI MARELLI 360406016401
    MAPCO 15652
    MAXGEAR 19-0987MAX
    £ 21.85
    MAXGEAR 19-0987
    £ 20.30
    MAXGEAR 19-0987SPORT
    MAXTECH 873034
    METZGER 6110322
    MEYLE 315 523 0040/PD
    £ 32.60
    MEYLE 315 523 0040
    £ 29.08
    MINTEX MDC1061
    NK 201537
    NK 311537
    OPTIMAL BS-5540C
    QUARO QD3762
    RAICAM RD00062
    ROTINGER RT 1304-GL
    ROTINGER RT 1304-GL T3
    ROTINGER RT 1304-GL T5
    ROTINGER RT 1304-GL T9
    ROTINGER RT 1304
    ROTINGER RT 1304-GL T6
    SWAG 20 91 2325
    TEXTAR 92076600
    TEXTAR 92076603
    £ 38.37
    TRW DF2768
    £ 32.13
    VALEO 186568
    ZIMMERMANN 150.1285.20
    £ 29.10
    ZIMMERMANN 150.1285.52 (this product)
  • Applicability

    BMW
    5
    5 (E39) | 09.1995-06.2003 520 d - 1951ccm, 136pk, 100kw - M47 D20 (204D1)
    5 (E39) | 09.1995-06.2003 520 i - 1990ccm, 136pk, 100kw - M52 B20 (206S3), M52 B20 (206S4)
    5 (E39) | 09.1995-06.2003 520 i - 1990ccm, 150pk, 110kw - M52 B20 (206S3), M52 B20 (206S4)
    5 (E39) | 09.1995-06.2003 520 i - 2171ccm, 170pk, 125kw - M54 B22 (226S1)
    5 (E39) | 09.1995-06.2003 523 i - 2494ccm, 170pk, 125kw - M52 B25 (256S3), M52 B25 (256S4)
    5 (E39) | 09.1995-06.2003 525 d - 2497ccm, 163pk, 120kw - M57 D25 (256D1)
    5 (E39) | 09.1995-06.2003 525 td - 2497ccm, 116pk, 85kw - M51 D25 (256T1)
    5 (E39) | 09.1995-06.2003 525 tds - 2497ccm, 143pk, 105kw - M51 D25 (256T1)
  • Original part numbers

    3421 1 163 835 BMW
    3421 1 164 129 BMW
    3421 6 767 049 BMW
  • Manufacturer

    Zimmermann
    The German Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years.  The brand is known for its high-quality use of materials in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust)
    - Standard brake discs
    - Sport brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
