Zimmermann

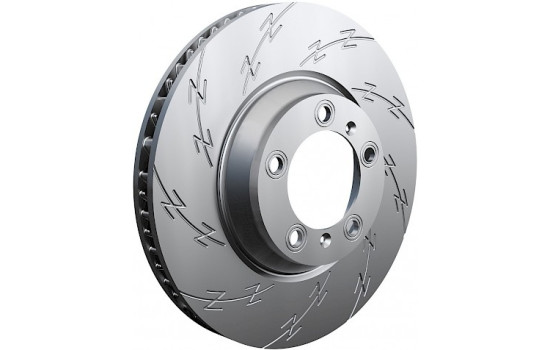

Brake Disc BLACK Z 100.3331.53 Zimmermann

5 5/5 (1 review)

Product number: 0848239

Manufacturer number: 100.3331.53

EAN: 4250238777373

£ 134.89

Incl. VAT
View product specifications
In stock
Delivery 09-04-2025

Free Shipping

Secure payment

  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

  • Specifications

    Provide your car with sportier performance and a sportier appearance with the Zimmermann Black Z brake discs.

    These brake discs are equipped with a patented grooved brake disc design, which is directly derived from racing experiences. The grooved design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

    Grooved design:

    • Grooves for better removal of gases
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less? Brake fading?
    • Even wear pattern on brake pads

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.


    The article is delivered in sets (2pcs)
    (1x right / 1x left side).

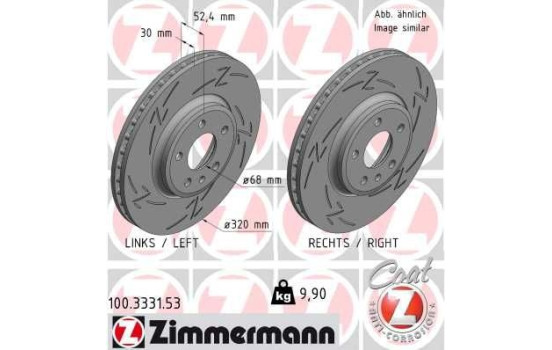

    Outer diameter [mm]320
    Rim Hole Number5
    Brake Disc TypeInternal ventilation
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]112
    Brake Disc TypeNotched
    Centering Diameter [mm]68
    Hole Arrangement / Number6/5
    MachiningHigh-carbon
    Inspection TagOhne ABE
    Directional
    Warranty2 years
    Height [mm]52
    Brake disc thickness (mm)30
    Minimum thickness (mm)28
    Weight [kg]9,90

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 17777
    £ 54.25
    AP 25213 X
    AP 25213
    AP 25213 V
    BELACO BDS1228HC
    BRECO BS 8823
    BRECO BV 8823
    BREMBO 09.A758.11
    £ 59.69
    BREMBO 09.A758.1X
    £ 96.70
    BREMBO 09.A758.10
    BREMSI CD7664V
    BSG BSG 90-210-039
    CHAMPION 562511CH
    DELPHI BG4080C
    £ 116.32
    DON PCD11021
    Dr!ve+ DP1010.11.0561
    FERODO DDF1664C
    £ 138.89
    FERODO DDF1664
    £ 70.88
    FREMAX BD-6076
    HELLA 8DD 355 128-721
    HELLA 8DD 355 113-911
    HELLA PAGID 8DD 355 113-911
    £ 71.45
    HELLA PAGID 8DD 355 128-721
    £ 70.31
    JURATEK VAG194
    JURID 562511JC-1
    Manufacturer Manufacturer number Price
    MAGNETI MARELLI 361302040576
    METZGER 6110425
    MINTEX MDC2001C
    Omnicraft 2134496
    QUARO QD5349
    QUARO QD5349HC
    ROTINGER RT 20724-GL T9
    ROTINGER RT 20724-GL
    ROTINGER RT 20724HP
    ROTINGER RT 20724-GL T5
    ROTINGER RT 20724
    ROTINGER RT 20724-GL T6
    ROTINGER RT 20724HP-GL
    ROTINGER RT 20724HP-GL T9
    ROTINGER RT 20724HP-GL T5
    ROTINGER RT 20724HP-GL T6
    ROTINGER RT 20724-GL T3
    ROTINGER RT 20724HP-GL T3
    TEXTAR 92160005
    £ 94.10
    TEXTAR 92160000
    VALEO 197824
    VALEO 197196
    ZIMMERMANN 100.3331.20
    £ 55.17
    ZIMMERMANN 100.3331.52
    £ 84.25
    ZIMMERMANN 100.3331.53 (this product)
  • Applicability

    AUDI
    A4 Allroad
    A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TDI quattro - 1968ccm, 170pk, 125kw - CAHA
    A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TDI quattro - 1968ccm, 163pk, 120kw - CGLD, CAHB, CNHC
    A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TDI quattro - 1968ccm, 143pk, 105kw - CJCA, CAGA
    A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TDI quattro - 1968ccm, 136pk, 100kw - CJCB, CSUB, CAGB
    A4 Allroad B8 (8KH) | 04.2009-05.2016 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CDNC, CPMA
    A4 Allroad B8 (8KH) | 04.2009-05.2016 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CCWA
    A4 B8
    A4 B8 (8K2) | 11.2007-12.2015 1.8 TFSI - 1798ccm, 120pk, 88kw - CABA, CDHA
    A4 B8 (8K2) | 11.2007-12.2015 1.8 TFSI - 1798ccm, 160pk, 118kw - CABB, CDHB
    A4 B8 (8K2) | 11.2007-12.2015 1.8 TFSI quattro - 1798ccm, 160pk, 118kw - CDHB
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI - 1968ccm, 120pk, 88kw - CAGC, CJCC
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI - 1968ccm, 170pk, 125kw - CAHA
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI - 1968ccm, 163pk, 120kw - CGLD, CAHB, CNHC
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI - 1968ccm, 143pk, 105kw - CJCA, CAGA, CMEA, CMFA
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI - 1968ccm, 136pk, 100kw - CJCB, CSUB, CAGB
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 170pk, 125kw - CAHA
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 143pk, 105kw - CJCA, CAGA
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TFSI - 1984ccm, 211pk, 155kw - CAEB, CDNC
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TFSI - 1984ccm, 180pk, 132kw - CDNB, CAEA, CFKA
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TFSI flexible fuel - 1984ccm, 180pk, 132kw - CFKA
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TFSI flexible fuel quattro - 1984ccm, 180pk, 132kw - CFKA
    A4 B8 (8K2) | 11.2007-12.2015 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CDNC, CPMA
    A4 B8 (8K2) | 11.2007-12.2015 2.7 TDI - 2698ccm, 190pk, 140kw - CAMA, CGKA
    A4 B8 (8K2) | 11.2007-12.2015 2.7 TDI - 2698ccm, 163pk, 120kw - CAMB, CGKB
    A4 B8 (8K2) | 11.2007-12.2015 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CAPA, CCWA, CCLA
    A4 B8 (8K2) | 11.2007-12.2015 3.0 TDI quattro - 2967ccm, 211pk, 155kw - CCWB
    A4 B8 (8K2) | 11.2007-12.2015 3.2 FSI - 3197ccm, 265pk, 195kw - CALA
    A4 B8 (8K2) | 11.2007-12.2015 3.2 FSI quattro - 3197ccm, 265pk, 195kw - CALA
    A4 B8 Avant (8K5) | 11.2007-12.2015 1.8 TFSI - 1798ccm, 160pk, 118kw - CABB, CDHB
    A4 B8 Avant (8K5) | 11.2007-12.2015 1.8 TFSI - 1798ccm, 120pk, 88kw - CDHA
    A4 B8 Avant (8K5) | 11.2007-12.2015 1.8 TFSI quattro - 1798ccm, 160pk, 118kw - CDHB
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 120pk, 88kw - CAGC, CJCC
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 170pk, 125kw - CAHA
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 163pk, 120kw - CGLD, CAHB, CNHC
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 143pk, 105kw - CJCA, CAGA, CMEA, CMFA
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI - 1968ccm, 136pk, 100kw - CJCB, CSUB, CAGB
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 170pk, 125kw - CAHA
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TDI quattro - 1968ccm, 143pk, 105kw - CJCA, CAGA
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI - 1984ccm, 211pk, 155kw - CAEB, CDNC
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI - 1984ccm, 180pk, 132kw - CDNB, CFKA
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI flexible fuel - 1984ccm, 180pk, 132kw - CFKA
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI flexible fuel quattro - 1984ccm, 180pk, 132kw - CFKA
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CAEB, CDNC
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.7 TDI - 2698ccm, 190pk, 140kw - CAMA, CGKA
    A4 B8 Avant (8K5) | 11.2007-12.2015 2.7 TDI - 2698ccm, 163pk, 120kw - CAMB, CGKB
    A4 B8 Avant (8K5) | 11.2007-12.2015 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CAPA, CCWA, CCLA
    A4 B8 Avant (8K5) | 11.2007-12.2015 3.0 TDI quattro - 2967ccm, 211pk, 155kw - CCWB
    A4 B8 Avant (8K5) | 11.2007-12.2015 3.2 FSI - 3197ccm, 265pk, 195kw - CALA
    A4 B8 Avant (8K5) | 11.2007-12.2015 3.2 FSI quattro - 3197ccm, 265pk, 195kw - CALA
    A4 B8 Avant (8K5) | 11.2007-12.2015 S4 quattro - 2995ccm, 333pk, 245kw - CGXC, CREC, CTUB, CAKA, CGWC, CCBA
    A5
    A5 (8T3) | 06.2007-01.2017 1.8 TFSI - 1798ccm, 160pk, 118kw - CDHB
    A5 (8T3) | 06.2007-01.2017 1.8 TFSI - 1798ccm, 170pk, 125kw - CJEB, CABD
    A5 (8T3) | 06.2007-01.2017 2.0 TDI - 1968ccm, 170pk, 125kw - CAHA
    A5 (8T3) | 06.2007-01.2017 2.0 TDI - 1968ccm, 163pk, 120kw - CGLD, CAHB, CNHC
    A5 (8T3) | 06.2007-01.2017 2.0 TDI quattro - 1968ccm, 170pk, 125kw - CAHA
    A5 (8T3) | 06.2007-01.2017 2.0 TFSI - 1984ccm, 180pk, 132kw - CDNB
    A5 (8T3) | 06.2007-01.2017 2.0 TFSI - 1984ccm, 211pk, 155kw - CDNC
    A5 (8T3) | 06.2007-01.2017 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CAEB, CDNC, CPMA
    A5 (8T3) | 06.2007-01.2017 2.7 TDI - 2698ccm, 190pk, 140kw - CAMA, CGKA
    A5 (8T3) | 06.2007-01.2017 2.7 TDI - 2698ccm, 163pk, 120kw - CAMB, CGKB
    A5 (8T3) | 06.2007-01.2017 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CAPA, CCWA
    A5 (8T3) | 06.2007-01.2017 3.0 TDI quattro - 2967ccm, 211pk, 155kw - CCWB
    A5 (8T3) | 06.2007-01.2017 3.2 FSI - 3197ccm, 265pk, 195kw - CALA
    A5 (8T3) | 06.2007-01.2017 3.2 FSI quattro - 3197ccm, 265pk, 195kw - CALA
    A5 (8T3) | 06.2007-01.2017 S5 quattro - 4163ccm, 354pk, 260kw - CAUA
    A5 Convertible
    A5 Convertible (8F7) | 02.2009-01.2017 1.8 TFSI - 1798ccm, 160pk, 118kw - CDHB
    A5 Convertible (8F7) | 02.2009-01.2017 2.0 TDI - 1968ccm, 170pk, 125kw - CAHA
    A5 Convertible (8F7) | 02.2009-01.2017 2.0 TDI - 1968ccm, 163pk, 120kw - CGLD, CAHB
    A5 Convertible (8F7) | 02.2009-01.2017 2.0 TFSI - 1984ccm, 211pk, 155kw - CAEB, CDNC
    A5 Convertible (8F7) | 02.2009-01.2017 2.0 TFSI - 1984ccm, 180pk, 132kw - CDNB, CAEA
    A5 Convertible (8F7) | 02.2009-01.2017 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CAEB, CDNC, CPMA
    A5 Convertible (8F7) | 02.2009-01.2017 2.7 TDI - 2698ccm, 190pk, 140kw - CGKA
    A5 Convertible (8F7) | 02.2009-01.2017 2.7 TDI - 2698ccm, 163pk, 120kw - CGKB
    A5 Convertible (8F7) | 02.2009-01.2017 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CCWA
    A5 Convertible (8F7) | 02.2009-01.2017 3.2 FSI - 3197ccm, 265pk, 195kw - CALA
    A5 Convertible (8F7) | 02.2009-01.2017 3.2 FSI quattro - 3197ccm, 265pk, 195kw - CALA
    A5 Convertible (8F7) | 02.2009-01.2017 S5 quattro - 2995ccm, 333pk, 245kw - CGXC, CREC, CTDA, CTUB, CAKA, CGWC, CCBA
    A5 Sportback
    A5 Sportback (8TA) | 09.2009-01.2017 1.8 TFSI - 1798ccm, 160pk, 118kw - CDHB
    A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI - 1968ccm, 170pk, 125kw - CAHA
    A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI - 1968ccm, 163pk, 120kw - CGLD, CAHB, CNHC
    A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI - 1968ccm, 143pk, 105kw - CJCA, CAGA, CMEA, CMFA
    A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI - 1968ccm, 136pk, 100kw - CJCB, CSUB, CAGB
    A5 Sportback (8TA) | 09.2009-01.2017 2.0 TDI quattro - 1968ccm, 170pk, 125kw - CAHA
    A5 Sportback (8TA) | 09.2009-01.2017 2.0 TFSI - 1984ccm, 180pk, 132kw - CDNB
    A5 Sportback (8TA) | 09.2009-01.2017 2.0 TFSI - 1984ccm, 211pk, 155kw - CDNC
    A5 Sportback (8TA) | 09.2009-01.2017 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CDNC
    A5 Sportback (8TA) | 09.2009-01.2017 2.7 TDI - 2698ccm, 190pk, 140kw - CAMA, CGKA
    A5 Sportback (8TA) | 09.2009-01.2017 2.7 TDI - 2698ccm, 163pk, 120kw - CGKB
    A5 Sportback (8TA) | 09.2009-01.2017 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CCWA
    A5 Sportback (8TA) | 09.2009-01.2017 3.2 FSI quattro - 3197ccm, 265pk, 195kw - CALA
    A5 Sportback (8TA) | 09.2009-01.2017 S5 quattro - 2995ccm, 333pk, 245kw - CREC, CTDA, CAKA, CGWC
    Q5
    Q5 (8RB) | 11.2008-05.2017 2.0 TDI - 1968ccm, 143pk, 105kw - CJCA
    Q5 (8RB) | 11.2008-05.2017 2.0 TDI - 1968ccm, 136pk, 100kw - CJCB, CSUB
    Q5 (8RB) | 11.2008-05.2017 2.0 TDI quattro - 1968ccm, 170pk, 125kw - CAHA, CGLB, CMGA
    Q5 (8RB) | 11.2008-05.2017 2.0 TDI quattro - 1968ccm, 163pk, 120kw - CGLD, CAHB, CNHC, CGLA
    Q5 (8RB) | 11.2008-05.2017 2.0 TDI quattro - 1968ccm, 143pk, 105kw - CJCA, CAGA
    Q5 (8RB) | 11.2008-05.2017 2.0 TDI quattro - 1968ccm, 136pk, 100kw - CJCB, CSUB, CAGB
    Q5 (8RB) | 11.2008-05.2017 2.0 TFSI Hybrid quattro - 1984ccm, 245pk, 180kw - CHJA
    Q5 (8RB) | 11.2008-05.2017 2.0 TFSI quattro - 1984ccm, 211pk, 155kw - CAEB, CDNC
    Q5 (8RB) | 11.2008-05.2017 2.0 TFSI quattro - 1984ccm, 180pk, 132kw - CDNB, CNCB
    Q5 (8RB) | 11.2008-05.2017 3.0 TDI quattro - 2967ccm, 240pk, 176kw - CCWA, CPNB
    Q5 (8RB) | 11.2008-05.2017 3.2 FSI quattro - 3197ccm, 270pk, 199kw - CALB
  • Original part numbers

    8K0 615 301 A VAG
    L8KD 615 301 A VAG
    8K0 615 301 A AUDI (FAW)
    L8KD 615 301 A AUDI (FAW)
  • Manufacturer

    Zimmermann
    The German Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years.  The brand is known for its high-quality use of materials in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust)
    - Standard brake discs
    - Sport brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
