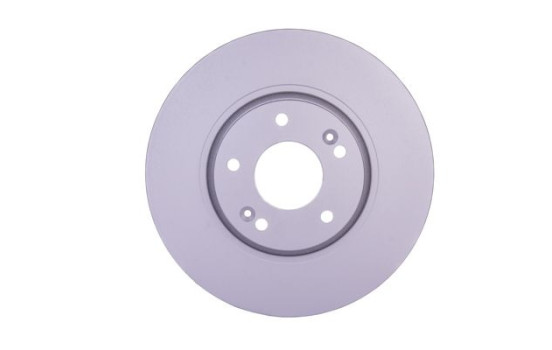

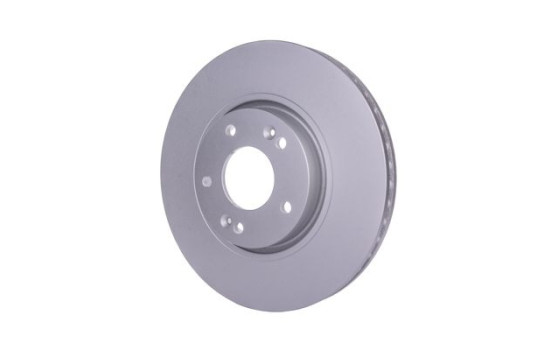

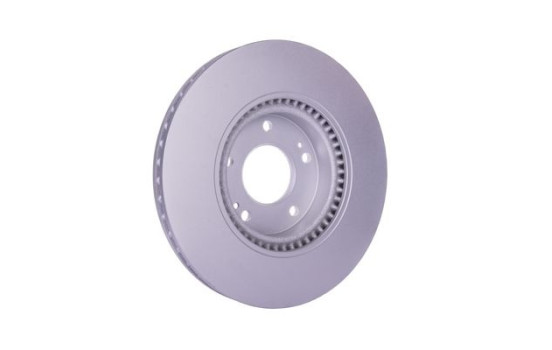

Brake disc 8DD 355 128-831 Hella

Video

Product number: 1397765

Manufacturer number: 8DD 355 128-831

EAN: 4082300660623

£ 47.⁴⁵

Incl. VAT

View product specifications

In stock

Delivery 28-11-2024

Free Shipping

Quantity:

Secure payment

Free 30 days exchanges
Any part, any car
Fast shipping: 2 days
Expert support

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or select your vehicle.

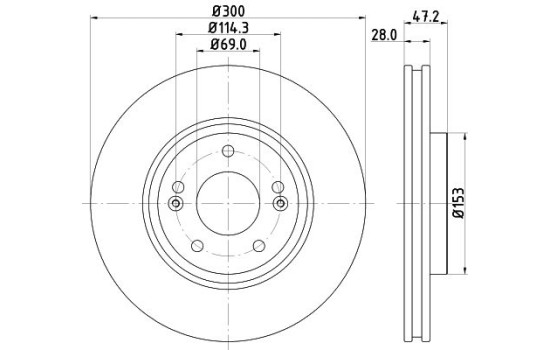

Specifications

Outer diameter [mm]	300
Brake Disc Type	Internal ventilation
Surface	Coated
Brake pads	Exclusive
Inner diameter [mm]	142,7
Bolt Hole Circle Ø [mm]	114,3
Centering Diameter [mm]	69
Hole Arrangement / Number	05/07
Machining	High-carbon
Warranty	2 years
Height [mm]	47,2
Additional information	Without wheel hub
	Without wheel studs
	Without wheel bearing
Assy./disassy. by qualified personnel required!
Brake disc thickness (mm)	28
Minimum thickness (mm)	26,4
Weight [kg]	8,6
Hole diameter for wheel bolt [inch]	12,5

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
A.B.S.	17676	£ 39.36
ACKOJAP	A52-2520
ACKOJAP	A52-2511
AISIN	R6F808S
ASHUKI	Y089-25
BELACO	BDS1064HC
BLUE PRINT	ADG043107
BLUE PRINT	ADG043136	£ 37.02
BORG & BECK	BBD4523
BREMSI	CD7630V
BSG	BSG 40-210-028
CHAMPION	562755CH
COMLINE	ADC1092V
DON	PCD10422
Dr!ve+	DP1010.11.0460
EUROBRAKE	5815313422
EUROBRAKE	5815203422
FEBI BILSTEIN	31317	£ 35.79
FERODO	DDF1630	£ 48.14
FERODO	DDF1630C	£ 80.99
FTE	9071031
FTE	BS7315
GIRLING	6061085
HELLA	8DD 355 114-511
HELLA	8DD 355 128-831
HELLA	8DD 355 128-831	(this product)
HELLA PAGID	8DD 355 114-511
HERTH+BUSS JAKOPARTS	J3300511
JURID	562755JC

Manufacturer	Manufacturer number	Price
KAVO PARTS	BR-3258-C	£ 40.06
MAPCO	25249
MAXGEAR	19-1863	£ 33.58
MAXGEAR	19-1863SPORT	£ 59.02
MAXGEAR	19-1863MAX	£ 46.58
METZGER	6110155
MEYLE	37-15 521 0030/PD	£ 47.70
MEYLE	37-15 521 0030	£ 45.29
MINTEX	MDC2043
MOTAQUIP	LVBD1529
NIPPARTS	N3300533P
NIPPARTS	N3300533
NK	203422
NK	313422
NPS	H330I34
QUARO	QD7527
QUARO	QD7527HC
RAICAM	RD00526
SKF	VKBD 80019 V1
SWAG	90 93 1317
TEXTAR	92166505
TEXTAR	92166500
TEXTAR	92166503
TRW	DF6108S	£ 39.02
VALEO	197533
ZIMMERMANN	285.3518.52	£ 69.86
ZIMMERMANN	285.3518.20	£ 61.04
ZIMMERMANN	285.3518.53	£ 83.49

Applicability

HYUNDAI

	GRANDEUR
	GRANDEUR (HG) \| 01.2011-10.2016 2.2 D - 2199ccm, 200pk, 147kw - D4HB
	GRANDEUR (HG) \| 01.2011-10.2016 2.4 16V - 2359ccm, 201pk, 148kw - G4KE
	i30
	i30 (FD) \| 10.2007-11.2011 1.4 - 1396ccm, 105pk, 77kw - G4FA
	i30 (FD) \| 10.2007-11.2011 1.4 - 1396ccm, 109pk, 80kw - G4FA
	i30 (FD) \| 10.2007-11.2011 1.6 - 1591ccm, 116pk, 85kw - G4FC
	i30 (FD) \| 10.2007-11.2011 1.6 - 1591ccm, 122pk, 90kw - G4FC
	i30 (FD) \| 10.2007-11.2011 1.6 - 1591ccm, 126pk, 93kw - G4FC
	i30 (FD) \| 10.2007-11.2011 1.6 CRDi - 1582ccm, 90pk, 66kw - D4FB
	i30 (FD) \| 10.2007-11.2011 1.6 CRDi - 1582ccm, 116pk, 85kw - D4FB
	i30 (FD) \| 10.2007-11.2011 1.6 CRDi - 1582ccm, 128pk, 94kw - D4FB
	i30 (FD) \| 10.2007-11.2011 1.6 CRDi VGT - 1582ccm, 110pk, 81kw - D4FB
	i30 (FD) \| 10.2007-11.2011 2.0 - 1975ccm, 143pk, 105kw - G4GC
	i30 (FD) \| 10.2007-11.2011 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA
	i30 (FD) \| 10.2007-11.2011 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA
	i30 (GD) \| 11.2011-12.2016 1.4 - 1396ccm, 99pk, 73kw - G4FA
	i30 (GD) \| 11.2011-12.2016 1.4 - 1368ccm, 101pk, 74kw - G4LC
	i30 (GD) \| 11.2011-12.2016 1.4 CRDi - 1396ccm, 90pk, 66kw - D4FC
	i30 (GD) \| 11.2011-12.2016 1.6 - 1591ccm, 129pk, 95kw - G4FC
	i30 (GD) \| 11.2011-12.2016 1.6 - 1591ccm, 131pk, 96kw - G4FC
	i30 (GD) \| 11.2011-12.2016 1.6 - 1591ccm, 120pk, 88kw - G4FC, G4FG
	i30 (GD) \| 11.2011-12.2016 1.6 CRDi - 1582ccm, 110pk, 81kw - D4FB
	i30 (GD) \| 11.2011-12.2016 1.6 CRDi - 1582ccm, 128pk, 94kw - D4FB
	i30 (GD) \| 11.2011-12.2016 1.6 CRDi - 1582ccm, 136pk, 100kw - D4FB
	i30 (GD) \| 11.2011-12.2016 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD
	i30 (GD) \| 11.2011-12.2016 1.6 T-GDI - 1591ccm, 186pk, 137kw - G4FJ
	i30 Coupe
	i30 Coupe \| 05.2013-05.2017 1.4 - 1396ccm, 99pk, 73kw - G4FA
	i30 Coupe \| 05.2013-05.2017 1.4 - 1368ccm, 101pk, 74kw - G4LC
	i30 Coupe \| 05.2013-05.2017 1.4 CRDi - 1396ccm, 90pk, 66kw - D4FC
	i30 Coupe \| 05.2013-05.2017 1.6 CRDi - 1582ccm, 110pk, 81kw - D4FB
	i30 Coupe \| 05.2013-05.2017 1.6 CRDi - 1582ccm, 128pk, 94kw - D4FB
	i30 Coupe \| 05.2013-05.2017 1.6 CRDi - 1582ccm, 136pk, 100kw - D4FB
	i30 Coupe \| 05.2013-05.2017 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD
	i30 Coupe \| 05.2013-05.2017 1.6 MPI - 1591ccm, 120pk, 88kw - G4FC
	i30 Coupe \| 05.2013-05.2017 1.6 T-GDI - 1591ccm, 186pk, 137kw - G4FJ
	i30 Estate
	i30 Estate (FD) \| 10.2007-06.2012 1.4 - 1396ccm, 105pk, 77kw - G4FA
	i30 Estate (FD) \| 10.2007-06.2012 1.4 - 1396ccm, 109pk, 80kw - G4FA
	i30 Estate (FD) \| 10.2007-06.2012 1.6 - 1591ccm, 122pk, 90kw - G4FC
	i30 Estate (FD) \| 10.2007-06.2012 1.6 - 1591ccm, 126pk, 93kw - G4FC
	i30 Estate (FD) \| 10.2007-06.2012 1.6 CRDi - 1582ccm, 90pk, 66kw - D4FB
	i30 Estate (FD) \| 10.2007-06.2012 1.6 CRDi - 1582ccm, 116pk, 85kw - D4FB
	i30 Estate (FD) \| 10.2007-06.2012 1.6 CRDi - 1582ccm, 128pk, 94kw - D4FB
	i30 Estate (FD) \| 10.2007-06.2012 2.0 - 1975ccm, 143pk, 105kw - G4GC
	i30 Estate (FD) \| 10.2007-06.2012 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA
	i30 Estate (FD) \| 10.2007-06.2012 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA
	i30 Estate (GD) \| 06.2012-05.2017 1.4 - 1396ccm, 99pk, 73kw - G4FA
	i30 Estate (GD) \| 06.2012-05.2017 1.4 - 1368ccm, 101pk, 74kw - G4LC
	i30 Estate (GD) \| 06.2012-05.2017 1.4 CRDi - 1396ccm, 90pk, 66kw - D4FC
	i30 Estate (GD) \| 06.2012-05.2017 1.6 - 1591ccm, 120pk, 88kw - G4FC, G4FG
	i30 Estate (GD) \| 06.2012-05.2017 1.6 - 1591ccm, 129pk, 95kw - G4FD
	i30 Estate (GD) \| 06.2012-05.2017 1.6 CRDi - 1582ccm, 110pk, 81kw - D4FB
	i30 Estate (GD) \| 06.2012-05.2017 1.6 CRDi - 1582ccm, 128pk, 94kw - D4FB
	i30 Estate (GD) \| 06.2012-05.2017 1.6 CRDi - 1582ccm, 136pk, 100kw - D4FB
	i30 Estate (GD) \| 06.2012-05.2017 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD
	i40 I
	i40 I (VF) \| 03.2012-05.2019 1.6 CRDi - 1598ccm, 116pk, 85kw - D4FE
	i40 I (VF) \| 03.2012-05.2019 1.6 CRDi - 1598ccm, 136pk, 100kw - D4FE
	i40 I (VF) \| 03.2012-05.2019 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD
	i40 I (VF) \| 03.2012-05.2019 1.7 CRDi - 1685ccm, 116pk, 85kw - D4FD
	i40 I (VF) \| 03.2012-05.2019 1.7 CRDi - 1685ccm, 136pk, 100kw - D4FD
	i40 I (VF) \| 03.2012-05.2019 1.7 CRDI - 1685ccm, 141pk, 104kw - D4FD
	i40 I (VF) \| 03.2012-05.2019 2.0 CVVT - 1999ccm, 150pk, 110kw - G4NA
	i40 I (VF) \| 03.2012-05.2019 2.0 CVVT - 1999ccm, 165pk, 121kw - G4NA
	i40 I (VF) \| 03.2012-05.2019 2.0 CVVT - 1999ccm, 177pk, 130kw - G4NA
	i40 I (VF) \| 03.2012-05.2019 2.0 GDi - 1999ccm, 165pk, 121kw - G4NC
	i40 I (VF) \| 03.2012-05.2019 2.0 GDI - 1999ccm, 177pk, 130kw - G4NC
	i40 I (VF) \| 03.2012-05.2019 2.0 GDI - 1999ccm, 178pk, 131kw - G4NC
	i40 I CW (VF) \| 07.2011-05.2019 1.6 CRDi - 1598ccm, 116pk, 85kw - D4FE
	i40 I CW (VF) \| 07.2011-05.2019 1.6 CRDi - 1598ccm, 136pk, 100kw - D4FE
	i40 I CW (VF) \| 07.2011-05.2019 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD
	i40 I CW (VF) \| 07.2011-05.2019 1.7 CRDi - 1685ccm, 116pk, 85kw - D4FD
	i40 I CW (VF) \| 07.2011-05.2019 1.7 CRDi - 1685ccm, 136pk, 100kw - D4FD
	i40 I CW (VF) \| 07.2011-05.2019 1.7 CRDi - 1685ccm, 141pk, 104kw - D4FD
	i40 I CW (VF) \| 07.2011-05.2019 2.0 CVVT - 1999ccm, 177pk, 130kw - G4NA
	i40 I CW (VF) \| 07.2011-05.2019 2.0 GDi - 1999ccm, 165pk, 121kw - G4NC
	i40 I CW (VF) \| 07.2011-05.2019 2.0 GDI - 1999ccm, 177pk, 130kw - G4NC
	ix35
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 1.6 - 1591ccm, 135pk, 99kw - G4FD
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 1.7 CRDi - 1685ccm, 116pk, 85kw - D4FD
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.0 - 1998ccm, 163pk, 120kw - G4KD
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.0 - 1999ccm, 154pk, 113kw - G4NA
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.0 4WD - 1998ccm, 163pk, 120kw - G4KD
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.0 CRDi - 1995ccm, 136pk, 100kw - D4HA
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.0 CRDi - 1995ccm, 184pk, 135kw - D4HA
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.0 CRDi 4WD - 1995ccm, 136pk, 100kw - D4HA
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.0 CRDi 4WD - 1995ccm, 184pk, 135kw - D4HA
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.0 CVVT - 1999ccm, 150pk, 110kw - G4NA
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.0 CVVT 4WD - 1999ccm, 150pk, 110kw - G4NA
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.0 GDi - 1999ccm, 166pk, 122kw - G4NC
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.0 GDi 4WD - 1999ccm, 166pk, 122kw - G4NC
	ix35 (LM, EL, ELH) \| 01.2010-12.2015 2.4 DCVVT-I 4WD - 2359ccm, 174pk, 128kw - G4KE
	SONATA V
	SONATA V (NF) \| 01.2005-12.2010 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA
	SONATA V (NF) \| 01.2005-12.2010 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA
	SONATA V (NF) \| 01.2005-12.2010 2.0 CRDi - 1991ccm, 150pk, 110kw - D4EA
	SONATA V (NF) \| 01.2005-12.2010 2.0 GLSI - 1998ccm, 162pk, 119kw - G4KD
	SONATA V (NF) \| 01.2005-12.2010 2.0 VVTi GLS - 1998ccm, 144pk, 106kw - G4KA
	SONATA V (NF) \| 01.2005-12.2010 2.0 VVTi GLS - 1998ccm, 165pk, 121kw - G4KD
	SONATA V (NF) \| 01.2005-12.2010 2.4 - 2359ccm, 162pk, 119kw - G4KC
	SONATA V (NF) \| 01.2005-12.2010 2.4 - 2359ccm, 174pk, 128kw - G4KC
	SONATA V (NF) \| 01.2005-12.2010 3.3 - 3342ccm, 233pk, 171kw - G6DB
	SONATA V (NF) \| 01.2005-12.2010 3.3 - 3342ccm, 235pk, 173kw - G6DB
	SONATA V (NF) \| 01.2005-12.2010 3.3 - 3342ccm, 250pk, 184kw - G6DB
	SONATA VI
	SONATA VI (YF) \| 06.2009-06.2014 2.0 Hybrid - 1999ccm, 150pk, 110kw - G4NE, G4NA
	SONATA VI (YF) \| 06.2009-06.2014 2.4 - 2359ccm, 174pk, 128kw - G4KC
	TUCSON
	TUCSON (JM) \| 06.2004-01.2012 2.0 - 1975ccm, 141pk, 104kw - G4GC
	TUCSON (JM) \| 06.2004-01.2012 2.0 - 1975ccm, 143pk, 105kw - G4GC
	TUCSON (JM) \| 06.2004-01.2012 2.0 All-wheel Drive - 1975ccm, 141pk, 104kw - G4GC
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi - 1991ccm, 113pk, 83kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi - 1991ccm, 120pk, 88kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi - 1991ccm, 150pk, 110kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 113pk, 83kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 120pk, 88kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 136pk, 100kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 140pk, 103kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.0 CRDi All-wheel Drive - 1991ccm, 150pk, 110kw - D4EA
	TUCSON (JM) \| 06.2004-01.2012 2.7 All-wheel Drive - 2656ccm, 175pk, 129kw - G6BA
	VELOSTER
	VELOSTER (FS) \| 03.2011-12.2017 1.6 T-GDI - 1591ccm, 186pk, 137kw - G4FJ

KIA

	CARENS IV
	CARENS IV \| 03.2013-08.2016 1.6 GDi - 1591ccm, 135pk, 99kw - G4FD
	CARENS IV \| 03.2013-08.2016 1.7 CRDi - 1685ccm, 116pk, 85kw - D4FD
	CARENS IV \| 03.2013-08.2016 1.7 CRDi - 1685ccm, 136pk, 100kw - D4FD
	CARENS IV \| 03.2013-08.2016 1.7 CRDi - 1685ccm, 141pk, 104kw - D4FD
	CARENS IV \| 03.2013-08.2016 2.0 GDi - 1999ccm, 165pk, 121kw - G4NC
	CARENS IV \| 03.2013-08.2016 2.0 GDi - 1999ccm, 166pk, 122kw - G4NC
	CARENS IV \| 03.2013-08.2016 2.0 GDi - 1999ccm, 177pk, 130kw - G4NC
	CARENS IV \| 03.2013-08.2016 2.0 MPI - 1999ccm, 150pk, 110kw - G4NC
	CEE'D
	CEE'D (JD) \| 05.2012-07.2018 1.0 T-GDI - 998ccm, 100pk, 74kw - G3LC
	CEE'D (JD) \| 05.2012-07.2018 1.0 T-GDI - 998ccm, 120pk, 88kw - G3LC
	CEE'D (JD) \| 05.2012-07.2018 1.4 CRDi 90 - 1396ccm, 90pk, 66kw - D4FC
	CEE'D (JD) \| 05.2012-07.2018 1.4 CVVT - 1396ccm, 90pk, 66kw - G4FA
	CEE'D (JD) \| 05.2012-07.2018 1.4 CVVT - 1396ccm, 100pk, 73kw - G4FA
	CEE'D (JD) \| 05.2012-07.2018 1.4 MPI - 1368ccm, 101pk, 74kw - G4LC
	CEE'D (JD) \| 05.2012-07.2018 1.6 CRDi 110 - 1582ccm, 110pk, 81kw - D4FB
	CEE'D (JD) \| 05.2012-07.2018 1.6 CRDi 128 - 1582ccm, 128pk, 94kw - D4FB
	CEE'D (JD) \| 05.2012-07.2018 1.6 CRDi 136 - 1582ccm, 136pk, 100kw - D4FB
	CEE'D (JD) \| 05.2012-07.2018 1.6 CVVT - 1591ccm, 130pk, 95kw - G4FC
	CEE'D (JD) \| 05.2012-07.2018 1.6 CVVT - 1591ccm, 131pk, 96kw - G4FC
	CEE'D (JD) \| 05.2012-07.2018 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD
	CEE'D (JD) \| 05.2012-07.2018 1.6 GT - 1591ccm, 204pk, 150kw - G4FJ
	CEE'D Combi
	CEE'D Combi Van (JD) \| 07.2012-07.2018 1.6 CRDi - 1582ccm, 128pk, 94kw - D4FB
	CEE'D Sportswagon
	CEE'D Sportswagon (JD) \| 09.2012-07.2018 1.0 T-GDI - 998ccm, 100pk, 74kw - G3LC
	CEE'D Sportswagon (JD) \| 09.2012-07.2018 1.0 T-GDI - 998ccm, 120pk, 88kw - G3LC
	CEE'D Sportswagon (JD) \| 09.2012-07.2018 1.4 CRDi 90 - 1396ccm, 90pk, 66kw - D4FC
	CEE'D Sportswagon (JD) \| 09.2012-07.2018 1.4 CVVT - 1396ccm, 100pk, 73kw - G4FA
	CEE'D Sportswagon (JD) \| 09.2012-07.2018 1.4 MPI - 1368ccm, 101pk, 74kw - G4LC
	CEE'D Sportswagon (JD) \| 09.2012-07.2018 1.6 CRDi 110 - 1582ccm, 110pk, 81kw - D4FB
	CEE'D Sportswagon (JD) \| 09.2012-07.2018 1.6 CRDi 128 - 1582ccm, 128pk, 94kw - D4FB
	CEE'D Sportswagon (JD) \| 09.2012-07.2018 1.6 CRDi 136 - 1582ccm, 136pk, 100kw - D4FB
	CEE'D Sportswagon (JD) \| 09.2012-07.2018 1.6 CVVT - 1591ccm, 130pk, 95kw - G4FC
	CEE'D Sportswagon (JD) \| 09.2012-07.2018 1.6 CVVT - 1591ccm, 131pk, 96kw - G4FC
	CEE'D Sportswagon (JD) \| 09.2012-07.2018 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD
	OPTIMA
	OPTIMA (FSGDS6B) \| 03.2012-12.2015 1.7 CRDi - 1685ccm, 136pk, 100kw - D4FD
	OPTIMA (FSGDS6B) \| 03.2012-12.2015 2.0 - 1998ccm, 170pk, 125kw - G4KD
	OPTIMA (FSGDS6B) \| 03.2012-12.2015 2.0 CVVT Hybrid - 1999ccm, 190pk, 140kw - G4NE
	OPTIMA (JF) \| 09.2015-12.2019 1.6 CRDi - 1598ccm, 136pk, 100kw - D4FE
	OPTIMA (JF) \| 09.2015-12.2019 1.6 T-GDI - 1591ccm, 179pk, 132kw - G4FJ
	OPTIMA (JF) \| 09.2015-12.2019 1.7 CRDi - 1685ccm, 141pk, 104kw - D4FD
	OPTIMA (JF) \| 09.2015-12.2019 2.0 CVVL - 1999ccm, 163pk, 120kw - G4ND
	OPTIMA (JF) \| 09.2015-12.2019 2.0 GDI Hybrid - 1999ccm, 205pk, 151kw - G4NG
	OPTIMA Sportswagon
	OPTIMA Sportswagon (JF) \| 09.2016-12.2019 1.6 CRDi - 1598ccm, 136pk, 100kw - D4FE
	OPTIMA Sportswagon (JF) \| 09.2016-12.2019 1.6 T-GDI - 1591ccm, 179pk, 132kw - G4FJ
	OPTIMA Sportswagon (JF) \| 09.2016-12.2019 1.7 CRDi - 1685ccm, 141pk, 104kw - D4FD
	OPTIMA Sportswagon (JF) \| 09.2016-12.2019 2.0 CVVL - 1999ccm, 163pk, 120kw - G4ND
	OPTIMA Sportswagon (JF) \| 09.2016-12.2019 2.0 GDI Hybrid - 1999ccm, 205pk, 151kw - G4NG
	PRO CEE'D
	PRO CEE'D (JD) \| 03.2013-07.2018 1.0 T-GDI - 998ccm, 100pk, 74kw - G3LC
	PRO CEE'D (JD) \| 03.2013-07.2018 1.0 T-GDI - 998ccm, 120pk, 88kw - G3LC
	PRO CEE'D (JD) \| 03.2013-07.2018 1.4 CRDi 90 - 1396ccm, 90pk, 66kw - D4FC
	PRO CEE'D (JD) \| 03.2013-07.2018 1.4 CVVT - 1396ccm, 100pk, 73kw - G4FA
	PRO CEE'D (JD) \| 03.2013-07.2018 1.4 MPI - 1368ccm, 100pk, 73kw - G4LC
	PRO CEE'D (JD) \| 03.2013-07.2018 1.4 MPI - 1368ccm, 101pk, 74kw - G4LC
	PRO CEE'D (JD) \| 03.2013-07.2018 1.6 CRDi 110 - 1582ccm, 110pk, 81kw - D4FB
	PRO CEE'D (JD) \| 03.2013-07.2018 1.6 CRDi 128 - 1582ccm, 128pk, 94kw - D4FB
	PRO CEE'D (JD) \| 03.2013-07.2018 1.6 CRDi 136 - 1582ccm, 136pk, 100kw - D4FB
	PRO CEE'D (JD) \| 03.2013-07.2018 1.6 CVVT - 1591ccm, 130pk, 95kw - G4FC
	PRO CEE'D (JD) \| 03.2013-07.2018 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD
	PRO CEE'D Hatchback Van (JD) \| 05.2015-07.2018 1.0 T-GDi - 998ccm, 120pk, 88kw - G3LC
	PRO CEE'D Hatchback Van (JD) \| 05.2015-07.2018 1.4 MPI - 1368ccm, 101pk, 74kw - G4LC
	PRO CEE'D Hatchback Van (JD) \| 05.2015-07.2018 1.6 CRDI - 1582ccm, 136pk, 100kw - D4FB
	SOUL II
	SOUL II (PS) \| 02.2014-12.2018 1.6 CRDi 128 - 1582ccm, 126pk, 94kw - D4FB
	SOUL II (PS) \| 02.2014-12.2018 1.6 CRDi 136 - 1582ccm, 136pk, 100kw - D4FB
	SOUL II (PS) \| 02.2014-12.2018 1.6 CVVT - 1591ccm, 124pk, 91kw - G4FG
	SOUL II (PS) \| 02.2014-12.2018 1.6 GDI - 1591ccm, 132pk, 97kw - G4FD
	SOUL II (PS) \| 02.2014-12.2018 1.6 TGDI - 1591ccm, 204pk, 150kw - G4FJ
	SOUL II (PS) \| 02.2014-12.2018 EV Electric - 0ccm, 33pk, 25kw - ZD
	SOUL II (PS) \| 02.2014-12.2018 EV Electric - 0ccm, 110pk, 81kw - ZD
	SPORTAGE II
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 16V 4WD - 1975ccm, 141pk, 104kw - G4GC
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi - 1991ccm, 113pk, 83kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi - 1991ccm, 136pk, 100kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi - 1991ccm, 140pk, 103kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi - 1991ccm, 150pk, 110kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi 4WD - 1991ccm, 113pk, 83kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi 4WD - 1991ccm, 136pk, 100kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi 4WD - 1991ccm, 140pk, 103kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 CRDi 4WD - 1991ccm, 150pk, 110kw - D4EA
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.0 i 16V - 1975ccm, 141pk, 104kw - G4GC
	SPORTAGE II (JE_, KM_) \| 09.2004-12.2010 2.7 V6 4WD - 2656ccm, 175pk, 129kw - G6BA
	SPORTAGE II VAN (KM_) \| 09.2008-05.2010 2.0 CRDi - 1991ccm, 150pk, 110kw - D4EA
	SPORTAGE II VAN (KM_) \| 09.2008-05.2010 2.0 CRDi 4WD - 1991ccm, 150pk, 110kw - D4EA
	SPORTAGE III
	SPORTAGE III (SL) \| 06.2010-12.2016 1.6 GDI - 1591ccm, 135pk, 99kw - G4FD
	SPORTAGE III (SL) \| 06.2010-12.2016 1.7 CRDi - 1685ccm, 116pk, 85kw - D4FD
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 CRDi - 1995ccm, 136pk, 100kw - D4HA
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 CRDi - 1995ccm, 184pk, 135kw - D4HA
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 CRDi AWD - 1995ccm, 136pk, 100kw - D4HA
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 CRDi AWD - 1995ccm, 184pk, 135kw - D4HA
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 CVVT - 1998ccm, 163pk, 120kw - G4KD
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 CVVT - 1998ccm, 166pk, 122kw - G4KD
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 CVVT - 1999ccm, 150pk, 110kw - G4NA
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 CVVT AWD - 1998ccm, 163pk, 120kw - G4KD
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 CVVT AWD - 1998ccm, 166pk, 122kw - G4KD
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 CVVT AWD - 1999ccm, 150pk, 110kw - G4NA
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 GDI - 1998ccm, 166pk, 122kw - G4NC
	SPORTAGE III (SL) \| 06.2010-12.2016 2.0 GDI AWD - 1998ccm, 166pk, 122kw - G4NC

Original part numbers

S517120Z000	KIA
517123K160	HYUNDAI
517123K160	KIA
517122Y000	KIA
517123K100	HYUNDAI
517123K110	HYUNDAI
51712M0500	HYUNDAI
S517123K160A	KIA
517123K150	HYUNDAI
517120Z000	KIA
S517123K160	KIA
517123K300	HYUNDAI
517123Q000	KIA
51712A0000	HYUNDAI
517123R000	KIA

Manufacturer

Hella, a listed family company with more than 100 years of experience. Hella has grown big through its headlights. In addition to the basic lighting as halogen headlamps, Hella has been delivering xenon headlamps for 20 years and LED headlamps and tail lights for several years.
Hella also produces more advanced systems with curved lighting or adaptive frontlighting system. In combination with a camera, these Hella headlights can automatically make adjustments in the light image for ultimate safety and visibility.
Hella offers a wide range of electric and lighting components for cars. Hella specializes in producing highest standards that meet the latest developments in the market.
Whether you buy a Hella headlight for your old used car or your newly purchased station car, you are always assured of a product that is the same as the original and therefore of the highest quality.
Hella products distinguish themselves in the following areas:
- Original quality
- Lighting parts with the best visibility and safety
- Perfect fit
- Durability
- 1 year full warranty
At the moment we have the following Hella products in our range:
- Headlights
- Rear lights
- Flashing lights
- Fog lights
- set motors
- Daytime driving lights
Delivery time

Expected delivery date:

28-11-2024
Questions?
Regarding product:
1397765. Brake disc

Name:

Email address:

Provide number plate

Add image(s):

Your question about this product:

In order to help you with your request, we require extra information about your vehicle. We would like to know: brand / model / type, year of manufacture, coach work, fuel, automatic transmission or manual, number of doors, VIN.

Control number
Manual

Secure payment

£ 47.45

Specifications

Similar products of other manufacturers

Applicability

Original part numbers

Manufacturer

Delivery time

Questions?

Manual

£ 47.⁴⁵
