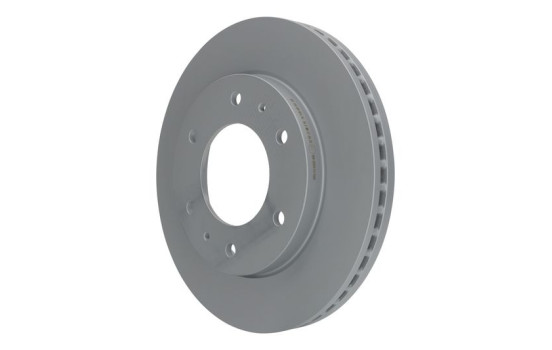

Brake Disc 24.0128-0309.1 ATE
Product number: 1332172
Manufacturer number: 24.0128-0309.1
EAN: 4006633461498
£ 58.08
Incl. VATFree Shipping

-
Free 30 days exchanges
-
Any part, any car
-
Fast shipping: 2 days
-
Expert support
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

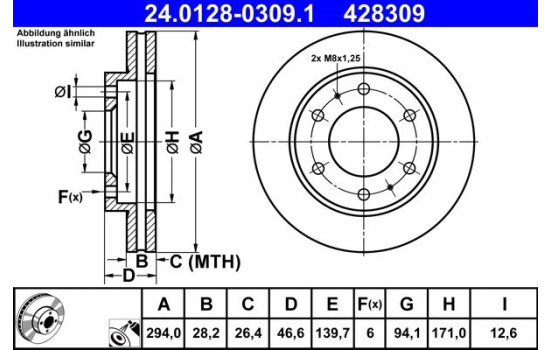

Outer diameter [mm] 294,0 Brake Disc Type Vented Surface Coated Number of Holes 6 Brake pads Exclusive Inner diameter [mm] 171,0 Bolt Hole Circle Ø [mm] 139,7 Centering Diameter [mm] 94,1 Inspection Tag E1 90R-02C0115 / 1060 MAPP code available Warranty 2 years Height [mm] 46,6 Brake disc thickness (mm) 28,2 Minimum thickness (mm) 26,4 Hole diameter [mm] 12,6 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17958 AP 20156 V ASHIKA 60-05-534C ASHUKI C652-59 ATE 24.0128-0309.1 (this product) BELACO BDS1273HC BLUE PRINT ADC443133 BLUE PRINT ADC443107 BOSCH 0 986 479 F45 BOSCH 0 986 479 E93 BOSCH 0 986 479 704 BRECO BV 9433 BREMBO 09.D576.11 COMLINE ADC0378V DELPHI BG4257 DON PCD12192 FEBI BILSTEIN 170044 FEBI BILSTEIN 28437 FERODO DDF1818C FI.BA FBD194 FTE 9072563 FTE 9082033 HELLA 8DD 355 115-731 HELLA PAGID 8DD 355 115-731 Manufacturer Manufacturer number Price HERTH+BUSS JAKOPARTS J3305069 JAPANPARTS DI534JM JAPANPARTS DI-534C JAPKO 60534C LPR M1004VR LPR M1004V MASTER-SPORT 24011049201-SET-MS MASTER-SPORT 24011049201-SET-MSP MASTER-SPORT 24011049201-PCS-MS MASTER-SPORT 24011049201-PCS-MSP MAXGEAR 19-4910 MEYLE 32-15 521 0028 MINTEX MDC1960 MOTAQUIP LVBD1526 NPS M330I69 PAGID 54802NC QUARO QD0625 SKF VKBD 80340 V2 STELLOX 6020-1105VK-SX SWAG 80 92 8437 SWAG 33 10 6375 TEXTAR 92180205 TEXTAR 92180203 -
Applicability
FIAT FULLBACK Pickup FULLBACK Pickup (502_, 503_) | 04.2016-??? 2.4 D (KT0T) - 2442ccm, 154pk, 113kw - 4N15 FULLBACK Pickup (502_, 503_) | 04.2016-??? 2.4 D 4x4 (KT0T) - 2442ccm, 150pk, 110kw - 4N15 FULLBACK Pickup (502_, 503_) | 04.2016-??? 2.4 D 4x4 (KT0T) - 2442ccm, 154pk, 113kw - 4N15 FULLBACK Pickup (502_, 503_) | 04.2016-??? 2.4 D 4x4 (KT0T) - 2442ccm, 181pk, 133kw - 4N15 MITSUBISHI L200 / L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.2 DI-D - 2268ccm, 150pk, 110kw - 4N14 L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.2 DI-D 4WD - 2268ccm, 150pk, 110kw - 4N14 L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.4 DI-D (KJ0T) - 2442ccm, 154pk, 113kw - 4N15 L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.4 DI-D 4WD (KJ0T) - 2442ccm, 154pk, 113kw - 4N15 L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.4 DI-D 4WD (KL1T) - 2442ccm, 181pk, 133kw - 4N15 L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.5 DI-D 4WD - 2477ccm, 136pk, 100kw - 4D56 (16V) -
Original part numbers
6000611049 FIAT 4615A203 MITSUBISHI -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
