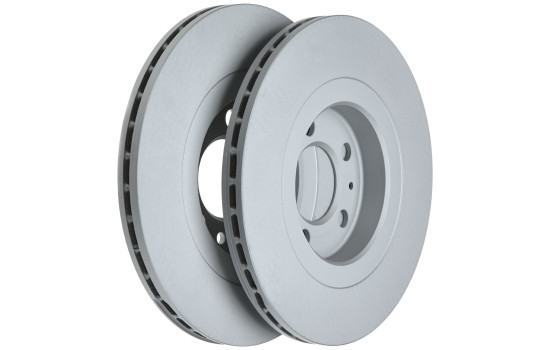

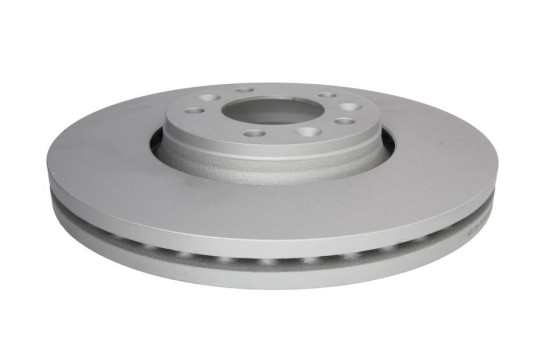

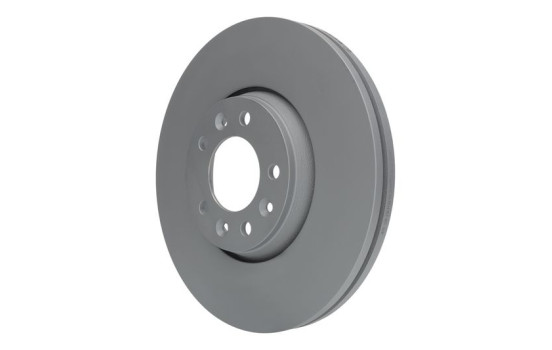

Brake Disc 24.0128-0216.1 ATE
£ 75.55
Incl. VATFree Shipping
- Free 30 days span> exchanges
- Any part span>, any car
- Fast shipping: 2 days
- Expert span> support
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Application: brake disc

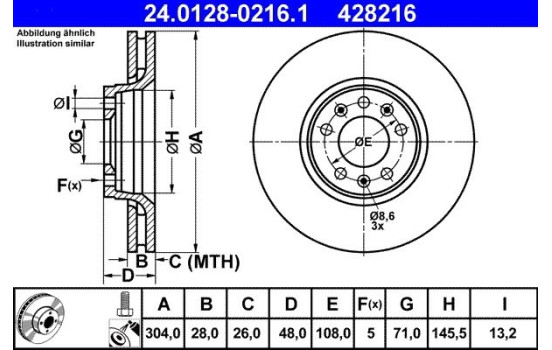

Outer diameter [mm] 304,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Assembly Front Brake pads Exclusive Inner diameter [mm] 145,5 Bolt Hole Circle Ø [mm] 108,0 Centering Diameter [mm] 71,0 Inspection Tag E1 90R-02C0118 / 0657 MAPP code available Warranty 2 years Height [mm] 48,0 Additional information With screws Brake disc thickness (mm) 28,0 Minimum thickness (mm) 26,0 Hole diameter [mm] 13,2 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17773 ABE C3C033ABE AP 25152 AP X 25152 AP 25152 X AP 25152 V ASAM 102124 ASHIKA 60-00-0609 ASHIKA 60-00-0609C ASHUKI P330-010 ATE 24.0128-0216.1 (this product) AUTOMOTOR France PDC1194 BELACO BDS1019 BLUE PRINT ADT343299 BORG & BECK BBD5815S BOSCH 0 986 479 380 BOSCH 0 986 479 C53 BRAXIS AD0122 BRECK BR 466 VA100 BRECO BS 8761 BRECO BV 8761 BREMBO 09.A430.1X BREMBO 09.A430.75 BREMBO 09.A430.10 BREMBO 09.A430.11 BREMSI CD7615V BSG BSG 70-210-008 CAR HPD 1425 CAR 142.1425 CHAMPION 562622CH CIFAM 800-886C COMLINE ADC1579V DELPHI BG4083C DENCKERMANN B130503 DON PCD10941 Dr!ve+ DP1010.11.0544 EUROBRAKE 5815203734 EUROBRAKE 5815313734 FAST FT31099 FEBI BILSTEIN 36621 FERODO DDF1615 FERODO DDF1615C FI.BA FBD535 FTE 9071030 FTE BS7211B FTE BS7211 FTE 9081220 GALFER B1.G228-0216.1 GIRLING 6048495 HELLA 8DD 355 113-671 HELLA PAGID 8DD 355 113-671 HERTH+BUSS JAKOPARTS J3302200 ICER 78BD4755-2 JAPANPARTS DI0609JM JAPANPARTS DI-0609C JAPANPARTS DI-0609 JAPKO 600609 JAPKO 600609C JP GROUP 4163101800 JURATEK CIT144 JURID 562622JC JURID 562622JC-1 KAMOKA 1031053 KAVO PARTS BR-9534-C Manufacturer Manufacturer number Price KAWE 61054 10 KEY PARTS KBD5815S KRAFT AUTOMOTIVE 6045671 LORO 231-03-101 LPR C1009VR LYNXauto BN-1392 MAGNETI MARELLI 360406075700 MAGNETI MARELLI 361302040114 MALÒ 1110124 MAPCO 15330 MASTER-SPORT 24012802161-PCS-MS MASTER-SPORT 24012802161PR-PCS-MS MASTER-SPORT 24012802161-SET-MSP MASTER-SPORT 24012802161PR-SET-MSP MASTER-SPORT 24012802161-PCS-MSP MASTER-SPORT 24012802161PR-PCS-MSP MASTER-SPORT 24012802161-SET-MS MASTER-SPORT 24012802161PR-SET-MS MAXGEAR 19-1877SPORT MAXGEAR 19-1877MAX MAXGEAR 19-1877 MAXTECH 875640 METELLI 23-0886C METZGER 6110318 MEYLE 215 521 0024 MEYLE 215 521 0024/PD MINTEX MDC1848C MOTAQUIP LVBD1288 NATIONAL NBD1438 NK 313734 NK 203734 OPTIMAL BS-8390 OPTIMAL BS-8390HC Omnicraft 2134032 PILENGA V025 PROTECHNIC PRD2536 QUARO QD3465 QUARO QD3465HC QUINTON HAZELL BDC5660 R BRAKE 78RBD24755 REMSA 61054.10 ROADHOUSE 61054.10 ROTINGER RT 20652-GL T6 ROTINGER RT 20652-GL T9 ROTINGER RT 20652-GL T5 ROTINGER RT 20652-GL T3 ROTINGER RT 20652-GL ROTINGER RT 20652 SASIC 6100013 SKF VKBD 80037 V1 STELLOX 6020-1479-SX STELLOX 6020-1479K-SX SWAG 33 10 2540 TEXTAR 92157003 TOPRAN 722 488 TRISCAN 8120 101014C TRISCAN 8120 101014 TRUSTING DF1222 TRW DF4849S VAICO V42-80004 VALEO 197133 VALEO 672758 WOKING D61054.10 ZIMMERMANN 440.3117.20 -
Applicability
CITROEN C5 III C5 III (RD_) | 02.2008-05.2017 1.6 HDi 110 (RD9HL0, RD9HR8, RD9HRA) - 1560ccm, 112pk, 82kw - 9HR (DV6C), 9HL (DV6C) C5 III (RD_) | 02.2008-05.2017 1.6 HDi 110 (RD9HZC) - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4) C5 III (RD_) | 02.2008-05.2017 1.6 HDi 115 (RD9HRA, RD9HLA, RD9HL0) - 1560ccm, 114pk, 84kw - 9HR (DV6C), 9HL (DV6C) C5 III (RD_) | 02.2008-05.2017 1.6 THP 150 (RD5FN8, RD5FNA) - 1598ccm, 150pk, 110kw - 5FN (EP6CDT) C5 III (RD_) | 02.2008-05.2017 1.6 THP 155 (RD5FV8, RD5FNA) - 1598ccm, 156pk, 115kw - 5FV (EP6CDT) C5 III (RD_) | 02.2008-05.2017 1.6 VTi 120 (RD5FS8, RD5FSA) - 1598ccm, 120pk, 88kw - 5FS (EP6C) C5 III (RD_) | 02.2008-05.2017 1.8 16V (RD6FXC) - 1749ccm, 125pk, 92kw - 6FY (EW7A) C5 III (RD_) | 02.2008-05.2017 2.0 16V (RDRFJC, RDRFJF) - 1997ccm, 140pk, 103kw - RFJ (EW10A) C5 III (RD_) | 02.2008-05.2017 2.0 16V (RDRFJF) - 1997ccm, 143pk, 105kw - RFJ (EW10A) C5 III (RD_) | 02.2008-05.2017 2.0 HDi (RDRHD8, RDRHDJ, RDRHR8, RDRHRJ) - 1997ccm, 136pk, 100kw - RHF (DW10BTED4), RHR (DW10BTED4), RHD (DW10CTED4) C5 III (RD_) | 02.2008-05.2017 2.0 HDi 140 (RDRHF8, RDRHFA, RDRHA8, RDRHAJ) - 1997ccm, 140pk, 103kw - RHF (DW10BTED4), RHA (DW10CTED4) C5 III (RD_) | 02.2008-05.2017 2.0 HDi 150 / BlueHDi 150 (RDRHEA, RDRHE8, RDAHRM,... - 1997ccm, 150pk, 110kw - RHE (DW10CTED4), AHX (DW10FD), AHR (DW10FD) C5 III (RD_) | 02.2008-05.2017 2.0 HDi 165 (RDRHHA, RDRHH8) - 1997ccm, 163pk, 120kw - RHH (DW10CTED4) C5 III Break (RW_) | 02.2008-05.2017 1.6 HDi 110 - 1560ccm, 112pk, 82kw - 9HR (DV6C), 9HL (DV6C) C5 III Break (RW_) | 02.2008-05.2017 1.6 HDi 110 (RW9HZC) - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4) C5 III Break (RW_) | 02.2008-05.2017 1.6 HDi 115 - 1560ccm, 114pk, 84kw - 9HR (DV6C), 9HL (DV6C) C5 III Break (RW_) | 02.2008-05.2017 1.6 THP 150 - 1598ccm, 150pk, 110kw - 5FN (EP6CDT) C5 III Break (RW_) | 02.2008-05.2017 1.6 THP 155 - 1598ccm, 156pk, 115kw - 5FV (EP6CDT) C5 III Break (RW_) | 02.2008-05.2017 1.6 VTI 120 - 1598ccm, 120pk, 88kw - 5FS (EP6C) C5 III Break (RW_) | 02.2008-05.2017 1.8 i 16V (RW6FYC) - 1749ccm, 125pk, 92kw - 6FY (EW7A) C5 III Break (RW_) | 02.2008-05.2017 2.0 16V - 1997ccm, 143pk, 105kw - RFJ (EW10A) C5 III Break (RW_) | 02.2008-05.2017 2.0 HDi - 1997ccm, 136pk, 100kw - RHR (DW10BTED4), RHD (DW10CTED4) C5 III Break (RW_) | 02.2008-05.2017 2.0 HDi 140 - 1997ccm, 140pk, 103kw - RHF (DW10BTED4), RHA (DW10CTED4) C5 III Break (RW_) | 02.2008-05.2017 2.0 HDi 150 / BlueHDi 150 (RWRHEJ, RWRHE8) - 1997ccm, 150pk, 110kw - RHE (DW10CTED4), AHR (DW10FD) C5 III Break (RW_) | 02.2008-05.2017 2.0 i 16V (RWRFJC, RWRFJF) - 1997ccm, 140pk, 103kw - RFJ (EW10A) DISPATCH II DISPATCH II (VF7) | 01.2007-03.2016 1.6 HDi 90 16V - 1560ccm, 90pk, 66kw - 9HU (DV6UTED4) DISPATCH II (VF7) | 01.2007-03.2016 1.6 HDi 90 8V - 1560ccm, 90pk, 66kw - 9HH (DV6DUM), 9HM (DV6UC) DISPATCH II (VF7) | 01.2007-03.2016 2.0 HDi 120 - 1997ccm, 120pk, 88kw - RHK (DW10UTED4) DISPATCH II (VF7) | 01.2007-03.2016 2.0 HDi 125 - 1997ccm, 128pk, 94kw - AHZ (DW10CD) DISPATCH II (VF7) | 01.2007-03.2016 2.0 HDi 140 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) DISPATCH II (VF7) | 01.2007-03.2016 2.0 HDi 165 - 1997ccm, 163pk, 120kw - RHH (DW10CTED4) DISPATCH II (VF7) | 01.2007-03.2016 2.0 HDi 95 - 1997ccm, 98pk, 72kw - AHY (DW10CE) DISPATCH II (VF7) | 01.2007-03.2016 2.0 i - 1997ccm, 140pk, 103kw - RFJ (EW10A), RFH (EW10A) DISPATCH II Platform/Chassis | 01.2009-03.2016 2.0 HDI (X_RHG) - 1997ccm, 120pk, 88kw - RHK (DW10UTED4) DISPATCH II Platform/Chassis | 01.2009-03.2016 2.0 HDi 125 - 1997ccm, 128pk, 94kw - AHZ (DW10CD) DISPATCH II Van | 01.2007-03.2016 1.6 HDi 90 16V - 1560ccm, 90pk, 66kw - 9HU (DV6UTED4) DISPATCH II Van | 01.2007-03.2016 1.6 HDi 90 8V - 1560ccm, 90pk, 66kw - 9HH (DV6DUM), 9HM (DV6UC) DISPATCH II Van | 01.2007-03.2016 2.0 HDi 120 - 1997ccm, 120pk, 88kw - RHK (DW10UTED4) DISPATCH II Van | 01.2007-03.2016 2.0 HDi 125 - 1997ccm, 128pk, 94kw - AHZ (DW10CD) DISPATCH II Van | 01.2007-03.2016 2.0 HDi 140 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) DISPATCH II Van | 01.2007-03.2016 2.0 HDi 165 - 1997ccm, 163pk, 120kw - RHH (DW10CTED4) DISPATCH II Van | 01.2007-03.2016 2.0 HDi 95 - 1997ccm, 98pk, 72kw - AHY (DW10CE) DISPATCH II Van | 01.2007-03.2016 2.0 i - 1997ccm, 140pk, 103kw - RFH (EW10A) FIAT SCUDO Bus SCUDO Bus (270_, 272_) | 01.2007-03.2016 1.6 D Multijet - 1560ccm, 90pk, 66kw - 9HM (DV6UC), 9H07 (DV6UC) SCUDO Bus (270_, 272_) | 01.2007-03.2016 1.6 D Multijet - 1560ccm, 90pk, 66kw - 9HU SCUDO Bus (270_, 272_) | 01.2007-03.2016 2.0 D Multijet - 1997ccm, 128pk, 94kw - RH02 SCUDO Bus (270_, 272_) | 01.2007-03.2016 2.0 D Multijet - 1997ccm, 163pk, 120kw - RH02, RHH SCUDO Bus (270_, 272_) | 01.2007-03.2016 2.0 D Multijet - 1997ccm, 120pk, 88kw - RHK, RHG SCUDO Bus (270_, 272_) | 01.2007-03.2016 2.0 D Multijet - 1997ccm, 136pk, 100kw - RHR SCUDO Bus (270_, 272_) | 01.2007-03.2016 2.0 D Multijet 4x4 - 1997ccm, 128pk, 94kw - RH02 SCUDO Bus (270_, 272_) | 01.2007-03.2016 2.0 D Multijet 4x4 - 1997ccm, 120pk, 88kw - RHK SCUDO Bus (270_, 272_) | 01.2007-03.2016 2.0 D Multijet 4x4 - 1997ccm, 136pk, 100kw - RHR SCUDO Platform/Chassis SCUDO Platform/Chassis (270_, 272_) | 01.2007-03.2016 1.6 D Multijet - 1560ccm, 90pk, 66kw - 9HU SCUDO Platform/Chassis (270_, 272_) | 01.2007-03.2016 2.0 D Multijet - 1997ccm, 128pk, 94kw - RH02 SCUDO Platform/Chassis (270_, 272_) | 01.2007-03.2016 2.0 D Multijet - 1997ccm, 120pk, 88kw - RHK, RHG SCUDO Platform/Chassis (270_, 272_) | 01.2007-03.2016 2.0 D Multijet - 1997ccm, 136pk, 100kw - RHR, DW10BTED4 SCUDO Van SCUDO Van (270_, 272_) | 01.2007-03.2016 1.6 D Multijet - 1560ccm, 90pk, 66kw - 9HM (DV6UC), 9H07 (DV6UC) SCUDO Van (270_, 272_) | 01.2007-03.2016 1.6 D Multijet - 1560ccm, 90pk, 66kw - 9HU SCUDO Van (270_, 272_) | 01.2007-03.2016 2.0 D Multijet - 1997ccm, 128pk, 94kw - RH02 SCUDO Van (270_, 272_) | 01.2007-03.2016 2.0 D Multijet - 1997ccm, 163pk, 120kw - RH02, RHH SCUDO Van (270_, 272_) | 01.2007-03.2016 2.0 D Multijet - 1997ccm, 120pk, 88kw - RHK, RHG SCUDO Van (270_, 272_) | 01.2007-03.2016 2.0 D Multijet - 1997ccm, 136pk, 100kw - RHR SCUDO Van (270_, 272_) | 01.2007-03.2016 2.0 D Multijet 4x4 - 1997ccm, 128pk, 94kw - RH02 SCUDO Van (270_, 272_) | 01.2007-03.2016 2.0 D Multijet 4x4 - 1997ccm, 120pk, 88kw - RHK, RHG SCUDO Van (270_, 272_) | 01.2007-03.2016 2.0 D Multijet 4x4 - 1997ccm, 136pk, 100kw - RHR PEUGEOT 407 407 (6D_) | 03.2004-02.2011 2.0 HDi (6DRHRH) - 1997ccm, 140pk, 103kw - RHR (DW10BTED4) 407 (6D_) | 03.2004-02.2011 2.0 HDi 135 (6DRHRH, 6DRHRE, 6DRHRG, 6DRHRJ) - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) 407 Coupe 407 Coupe (6C_) | 10.2005-??? 2.0 HDi - 1997ccm, 163pk, 120kw - RHH (DW10CTED4) 407 SW 407 SW (6E_, 6D_) | 05.2004-02.2011 2.0 HDi - 1997ccm, 126pk, 93kw - RHL (DW10BTED4) 407 SW (6E_, 6D_) | 05.2004-02.2011 2.0 HDi - 1997ccm, 140pk, 103kw - RHR (DW10BTED4) 407 SW (6E_, 6D_) | 05.2004-02.2011 2.0 HDi 135 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) EXPERT Platform/Chassis EXPERT Platform/Chassis | 01.2007-03.2016 1.6 HDi 90 16V - 1560ccm, 90pk, 66kw - 9HU (DV6UTED4) EXPERT Platform/Chassis | 01.2007-03.2016 1.6 HDi 90 8V - 1560ccm, 90pk, 66kw - 9HH (DV6DUM), 9HM (DV6UC) EXPERT Platform/Chassis | 01.2007-03.2016 2.0 16V (X_RFH) - 1997ccm, 140pk, 103kw - EXPERT Platform/Chassis | 01.2007-03.2016 2.0 HDi 120 - 1997ccm, 120pk, 88kw - RHK (DW10UTED4) EXPERT Platform/Chassis | 01.2007-03.2016 2.0 HDi 130 - 1997ccm, 128pk, 94kw - AHZ (DW10CD) EXPERT Platform/Chassis | 01.2007-03.2016 2.0 HDi 140 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) EXPERT Platform/Chassis | 01.2007-03.2016 2.0 HDi 165 - 1997ccm, 163pk, 120kw - RHH (DW10CTED4) EXPERT TEPEE EXPERT TEPEE (VF3X_) | 01.2007-03.2016 1.6 HDi 90 16V - 1560ccm, 90pk, 66kw - 9HU (DV6UTED4) EXPERT TEPEE (VF3X_) | 01.2007-03.2016 1.6 HDi 90 8V - 1560ccm, 90pk, 66kw - 9HH (DV6DUM), 9HM (DV6UC) EXPERT TEPEE (VF3X_) | 01.2007-03.2016 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A), RFH (EW10A) EXPERT TEPEE (VF3X_) | 01.2007-03.2016 2.0 HDi 100 - 1997ccm, 98pk, 72kw - AHY (DW10CE) EXPERT TEPEE (VF3X_) | 01.2007-03.2016 2.0 HDi 120 - 1997ccm, 120pk, 88kw - RHK (DW10UTED4) EXPERT TEPEE (VF3X_) | 01.2007-03.2016 2.0 HDi 120 4x4 - 1997ccm, 120pk, 88kw - RHK (DW10UTED4) EXPERT TEPEE (VF3X_) | 01.2007-03.2016 2.0 HDi 130 - 1997ccm, 128pk, 94kw - AHZ (DW10CD) EXPERT TEPEE (VF3X_) | 01.2007-03.2016 2.0 HDi 130 4x4 - 1997ccm, 128pk, 94kw - AHZ (DW10CD) EXPERT TEPEE (VF3X_) | 01.2007-03.2016 2.0 HDi 140 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) EXPERT TEPEE (VF3X_) | 01.2007-03.2016 2.0 HDi 165 - 1997ccm, 163pk, 120kw - RHH (DW10CTED4) EXPERT Van EXPERT Van (VF3A_, VF3U_, VF3X_) | 01.2007-03.2016 1.6 HDi 90 16V - 1560ccm, 90pk, 66kw - 9HU (DV6UTED4) EXPERT Van (VF3A_, VF3U_, VF3X_) | 01.2007-03.2016 1.6 HDi 90 8V - 1560ccm, 90pk, 66kw - 9HH (DV6DUM), 9HM (DV6UC) EXPERT Van (VF3A_, VF3U_, VF3X_) | 01.2007-03.2016 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A), RFH (EW10A) EXPERT Van (VF3A_, VF3U_, VF3X_) | 01.2007-03.2016 2.0 HDi 100 - 1997ccm, 98pk, 72kw - EXPERT Van (VF3A_, VF3U_, VF3X_) | 01.2007-03.2016 2.0 HDi 120 - 1997ccm, 120pk, 88kw - RHK (DW10UTED4) EXPERT Van (VF3A_, VF3U_, VF3X_) | 01.2007-03.2016 2.0 HDi 120 4x4 - 1997ccm, 120pk, 88kw - RHK (DW10UTED4) EXPERT Van (VF3A_, VF3U_, VF3X_) | 01.2007-03.2016 2.0 HDi 130 - 1997ccm, 128pk, 94kw - AHZ (DW10CD) EXPERT Van (VF3A_, VF3U_, VF3X_) | 01.2007-03.2016 2.0 HDi 130 4x4 - 1997ccm, 128pk, 94kw - AHZ (DW10CD) EXPERT Van (VF3A_, VF3U_, VF3X_) | 01.2007-03.2016 2.0 HDi 140 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4) EXPERT Van (VF3A_, VF3U_, VF3X_) | 01.2007-03.2016 2.0 HDi 165 - 1997ccm, 163pk, 120kw - RHH (DW10CTED4) TOYOTA PROACE Van PROACE Van (MDX_) | 06.2013-03.2016 1.6 D (MDX9) - 1560ccm, 90pk, 66kw - 3WZ-TV (DV6UC) PROACE Van (MDX_) | 06.2013-03.2016 2.0 D (MDX3) - 1997ccm, 128pk, 94kw - 4WZ-FTV (DW10CD) PROACE Van (MDX_) | 06.2013-03.2016 2.0 D (MDX6) - 1997ccm, 163pk, 120kw - 4WZ-FHV (DW10CTED4) -
Original part numbers
4249 25 CITROËN 4249 92 CITROËN 4249 K0 CITROËN 1440027088 FIAT 9467548587 FIAT 9467548588 FIAT 4249 24 PEUGEOT 4249 92 PEUGEOT 4249 K0 PEUGEOT 16 118 419 80 CITROËN SU001-A1064 TOYOTA -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
