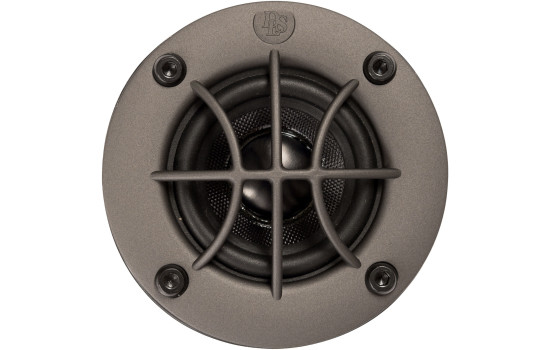

DLS 50mm Wide Band Tweeter RC50

Universally applicable

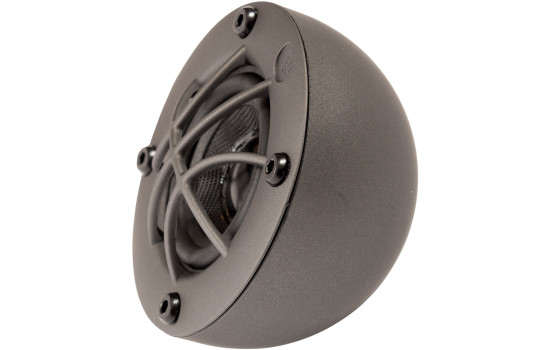

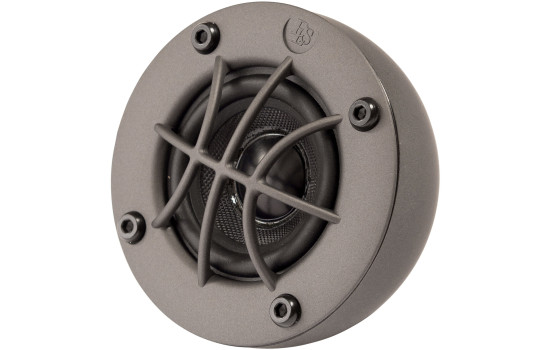

DLS 50mm Wide Band Tweeter RC50 DLS 50mm Wide Band Tweeter RC50, Image 2 DLS 50mm Wide Band Tweeter RC50, Image 3 DLS 50mm Wide Band Tweeter RC50, Image 4
  • DLS 50mm Wide Band Tweeter RC50
  • DLS 50mm Wide Band Tweeter RC50, Thumbnail 2
  • DLS 50mm Wide Band Tweeter RC50, Thumbnail 3
  • DLS 50mm Wide Band Tweeter RC50, Thumbnail 4

Product number: 1688055

Manufacturer number: 610RC50

EAN: 7331644825203

£ 112.64

Incl. VAT
View product specifications
On order
Delivery 23-05-2025

Free Shipping

Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast shipping: 2 days
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Tweeters Reference

    RC50
    A special 50mm broadband tweeter that enables installations with an improved sound image.

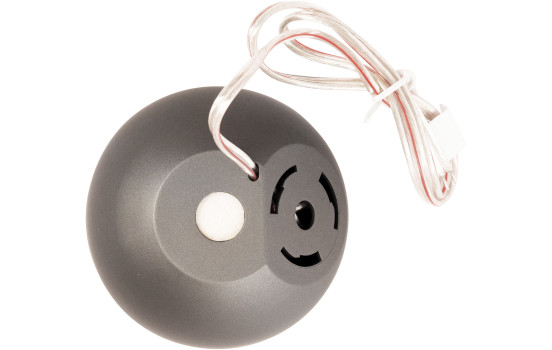

    Preferably to be used in active crossover installations with high pass 800-1500Hz 18dB/oct and low pass 18Khz 6 dB/oct. Sound-enhancing slanted back included.

    - Can be used in active mode.

    - Use when connected in active mode
    High Pass X-over set between 800 -
    1500 Hz /18 dB slope, and Low Pass
    x-over set to 18 kHz / 6 dB slope.

    Impedance 4 ohms
    Power 50W RMS
    Maximum load capacity 80 W
    Frequency range 500 - 22,000 Hz
    Rec. frequency range 1500 Hz - 22 kHz
    Fs - Resonance frequency 155 Hz
    Sensitivity 83.2 dB (1W/1m)
    Magnet size 32mm (1.26?)
    Outer diameter 84 mm (3.3?)
    Mounting depth 45 mm / 37 mm (1.77 / 1.46?)
    Mounting hole 65 mm (2.56?)

    Suitable for:
    50mm
    Diameter50 mm
    Power50 Watt
    applicableUniversal
    TypeTweeter
    Warranty2 years
